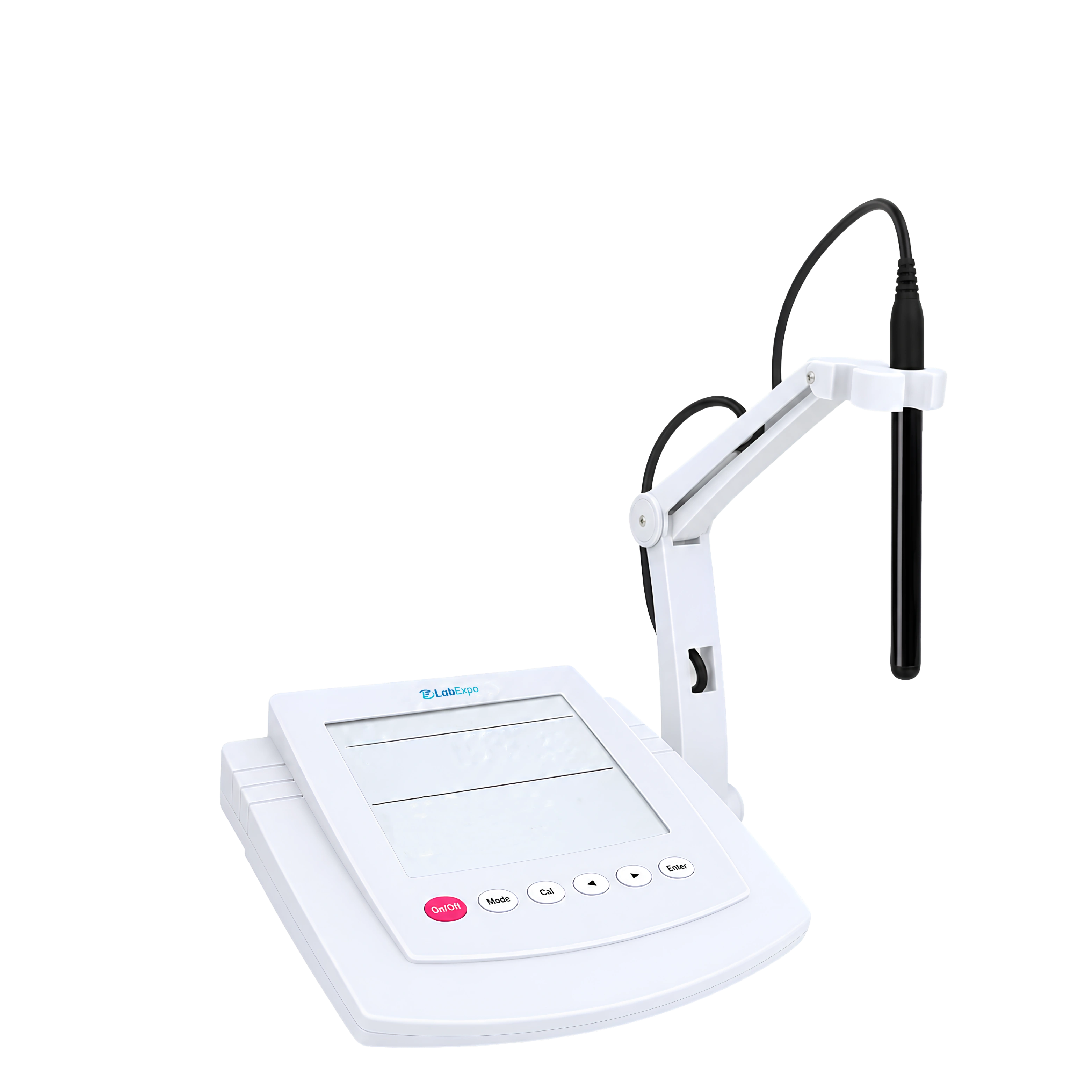

Lab Expo Benchtop Ion Meter 25-BIM112 offers precise iodide ion testing across a variety of water samples. It provides clear and easy-to-read display for effortless monitoring. Integrated stability indicator ensures consistent and reliable readings. Incorporated 2 to 5-point calibration allows for flexible and accurate measurement adjustments. Our Benchtop Ion Meter is used for reliable iodide ion testing for a range of water samples, including drinking water, distilled water, and wastewater.
$2,560.00 $ 2133
| Ion Measurement Range | I Range: 1×108- 1M, 0.06 -127000 ppm |
| Ion Measurement Accuracy | ± 1 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 Points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| mV Range | (-1999.9) to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| Compensation Mode | Manual or Automatic |
| Data Hold Function | Manual or Automatic Endpoint Detection |
| Reset Function | Yes |
| Stability Condition | Low or High |
| Calibration Due | 0 to 31 Days |
| Power Off | Manual or Automatic (10,20,30 Minutes) |
| Memory | Stores up to 500 Sets of Data |
| Output | USB Communication Interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power Supply | DC 5 V, Using AC Adapter, AC 220 V / 50 Hz |
| Dimension | 210 × 188 × 60 mm |
| Net Weight | 1.5 Kg |
| Gross Weight | 2 Kg |
Function Implementation Water quality testing good ion measurement range supports precise iodide detection Laboratory sample analysis LCD (130 × 110 mm) display enables clear reading of test results Drinking water verification ± 1 % F.S. ion measurement accuracy ensures reliable compliance checks Wastewater monitoring Stores up to 500 Sets of Data allows extended field campaign logging Calibration workflows Calibration Points: 2 to 5 Points supports flexible adjustment protocols

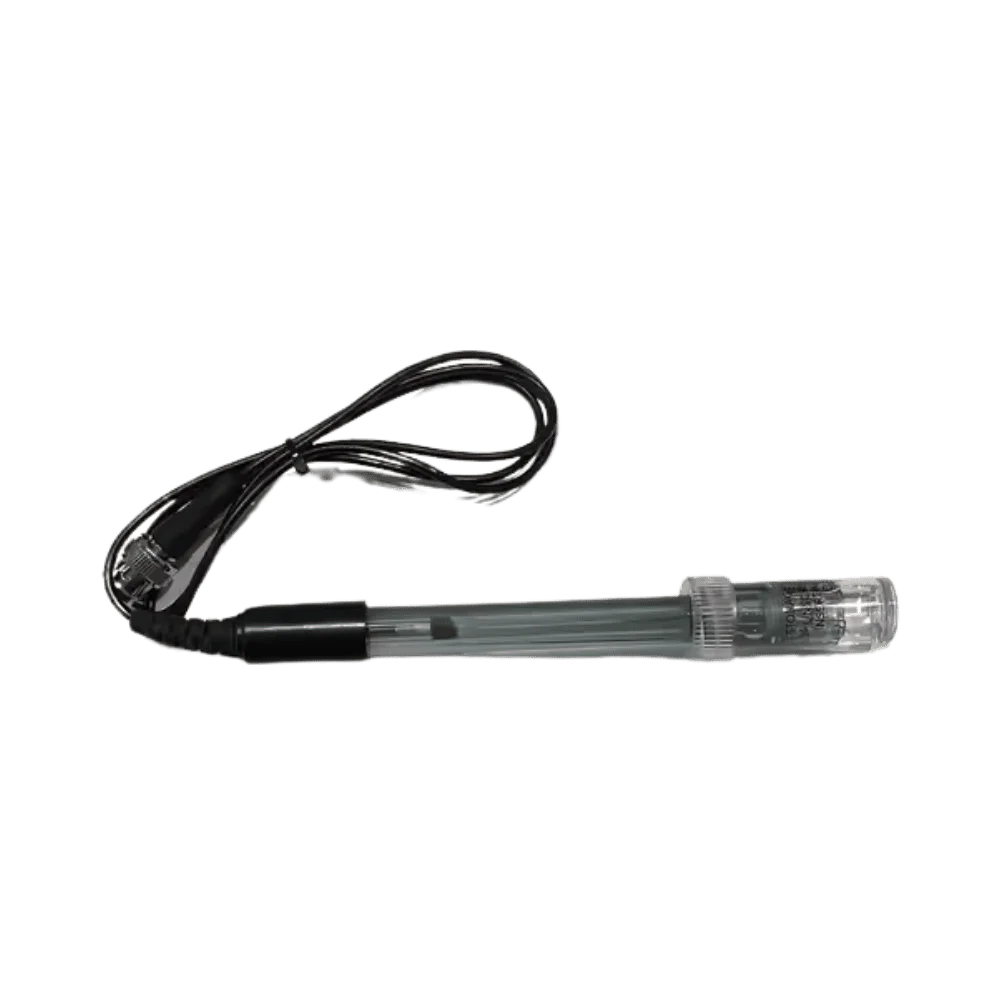

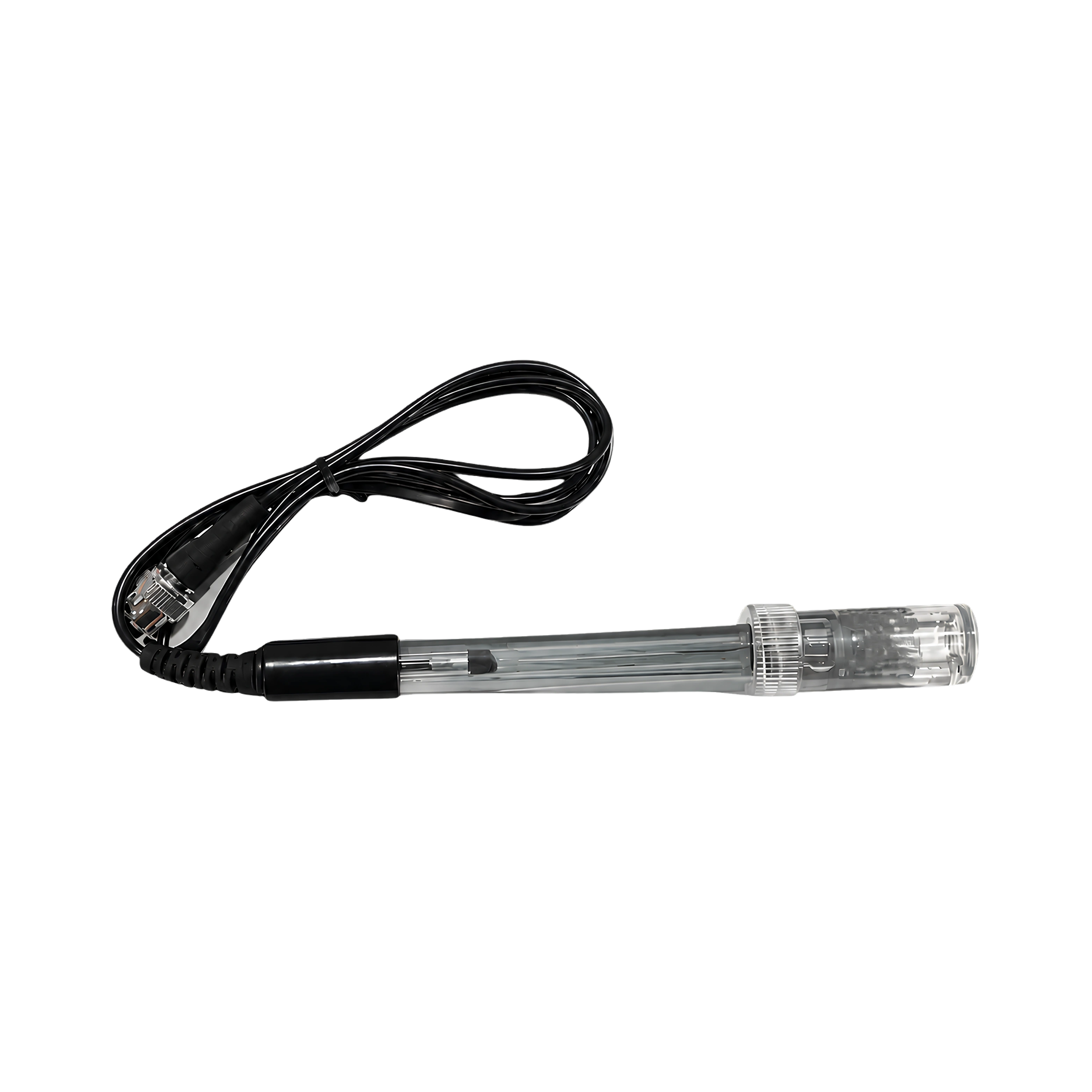

I ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 ml)
Lab Expo Benchtop Ion Meter units are used for measurement of ion concentration in liquid samples using ion selective electrodes. The range supports detection from trace levels (ppm) to high concentration ranges, with resolution down to 0.001 and accuracy up to ±0.5% F.S. Systems include multi-point calibration, temperature compensation, and digital interfaces, suitable for water analysis, chemical testing, and laboratory quality control workflows.
