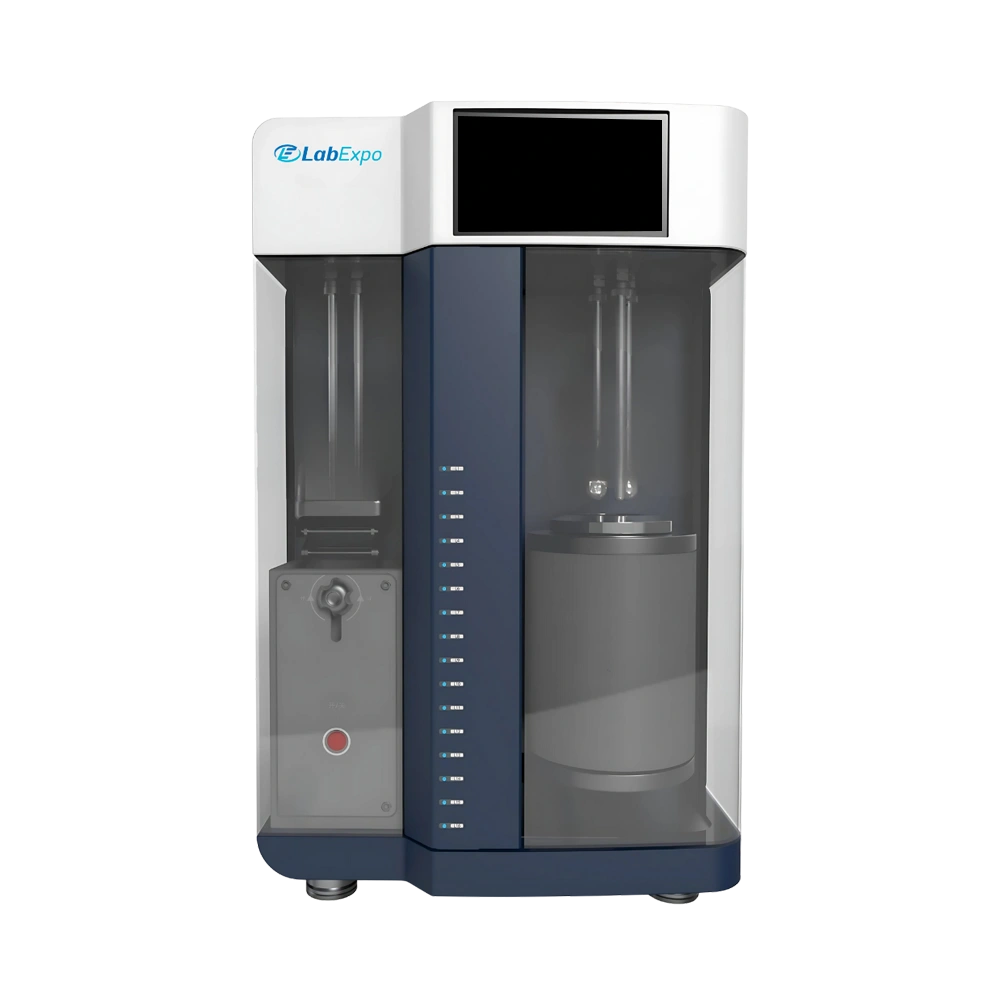

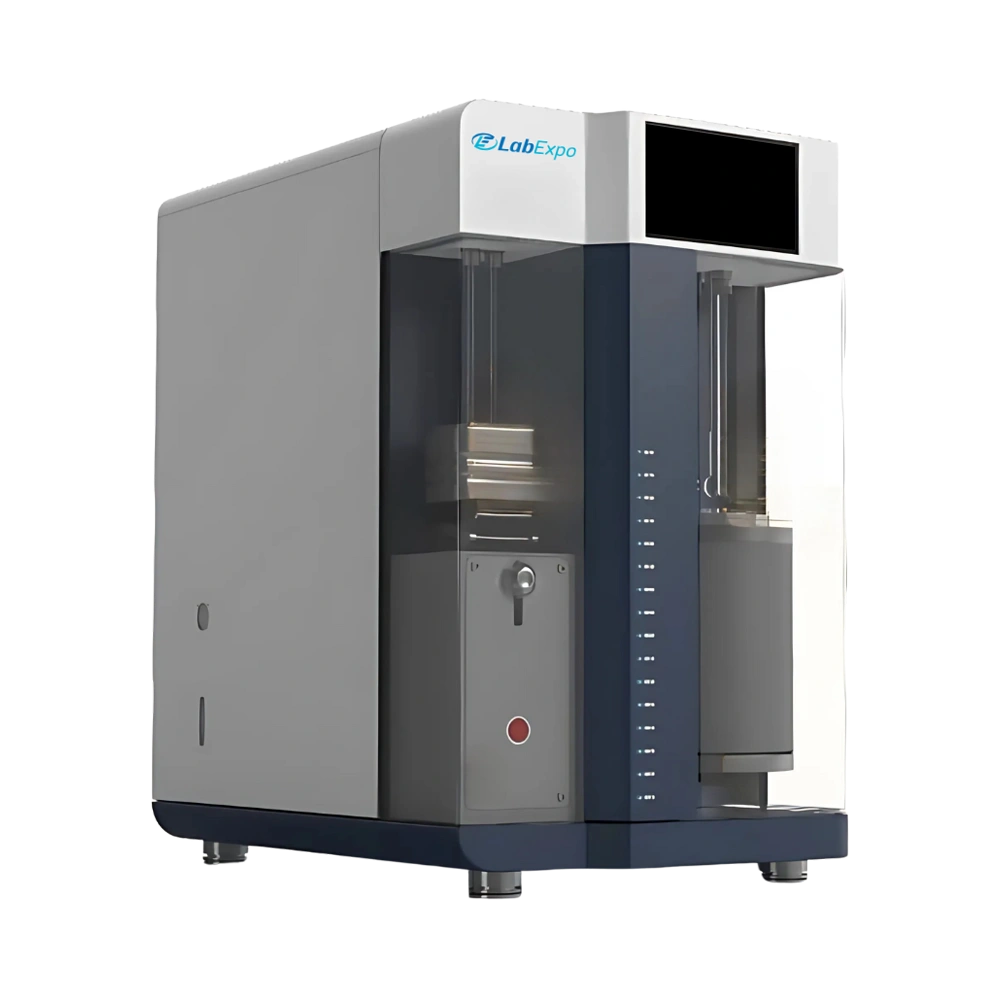

BET Surface Area Analyzer LE-BSA101 is designed to measure surface areas ≥0.0005 m²/g with precision. It features a touchscreen interface for easy operation and improved user experience. Built-in digital pressure sensor ensures high accuracy and reliable measurement performance. Equipped with a pore volume range of 0.35 nm to 2 nm for accurate material characterization. Our BET Surface Area Analyzer is suitable for applications in battery research, petrochemicals, pharmaceuticals, nanomaterials, and environmental studies.
$55,742.00
$46,452.00
Specifications
| Measuring Range | ≥ 0.0005 m²/g |
| Pore Size Range | 2 nm to 500 nm |
| Pore Volume Range | 0.35 nm to 2 nm |
| Test Gas | High purity N₂ gas or other |
| Dimension | 700 × 560 × 950 mm |
| Package Dimension | 900 × 760 × 1170 mm |
| Net Weight | 91 Kg |
| Gross Weight | 139 Kg |
Features
Applications
BET Surface Area Analyzer LE-BSA101 is widely applied in analyzing battery materials, petrochemicals, pharmaceuticals, environmental protection materials, nanomaterials, and various other powders and granular substances.
Standard Accessories
Vacuum pump- 1 pc
Computer with Windows-1 set
Spherical sample tube- 10 pcs
V-shaped sample funnel, glass material-10 pcs
Sample tube seal O-ring- 30 pcs
Standard sample (large) Carbon black- 10 g
Standard sample (middle) Carbon black- 10 g
Standard sample (small) Carbon black- 10 g
P0 pipe- 2 pcs
Stuffed glass rod, glass material- 5 pcs
Stainless steel lined Dewar bottle, 4 L- 1 pc
Small liquid nitrogen cup, 500 ml- 1 pc
Copper gasket + small sealing ring- 10 sets
Copper pipe Φ3 mm, 2 m- 2 pcs
Sample tube plug- 10 pcs
Clamp collar KF25- 2 pcs
Clamp collar KF16- 1 pc
Power cable, 3 m- 2 pcs
Network cable, 3 m- 1 pc
Wireless mouse and keyboard- 1 set
Insulation blanket- 1 pc
Allen wrench- 1 set
Sponge plug- 4 pcs
Sample tube cleaning brush- 1 pc
Funnel cleaning brush- 1 pc
Fuse 10A- 2 pcs
Sample weighing container, small beaker- 1 pc
Protective gloves- 1 set
Software USB flash disk- 1 pc
Lab Expo BET Surface Area Analyzer offers high-precision surface area and porosity analysis using advanced adsorption technology. They ensure highly accurate and reliable results with integrated digital pressure sensors. Their built-in computer system with intuitive software simplifies data processing and reporting. These analyzers include safety doors and liquid nitrogen level control for enhanced protection. Our BET Surface Area Analyzer is ideal for consistent performance and long-term laboratory use.
