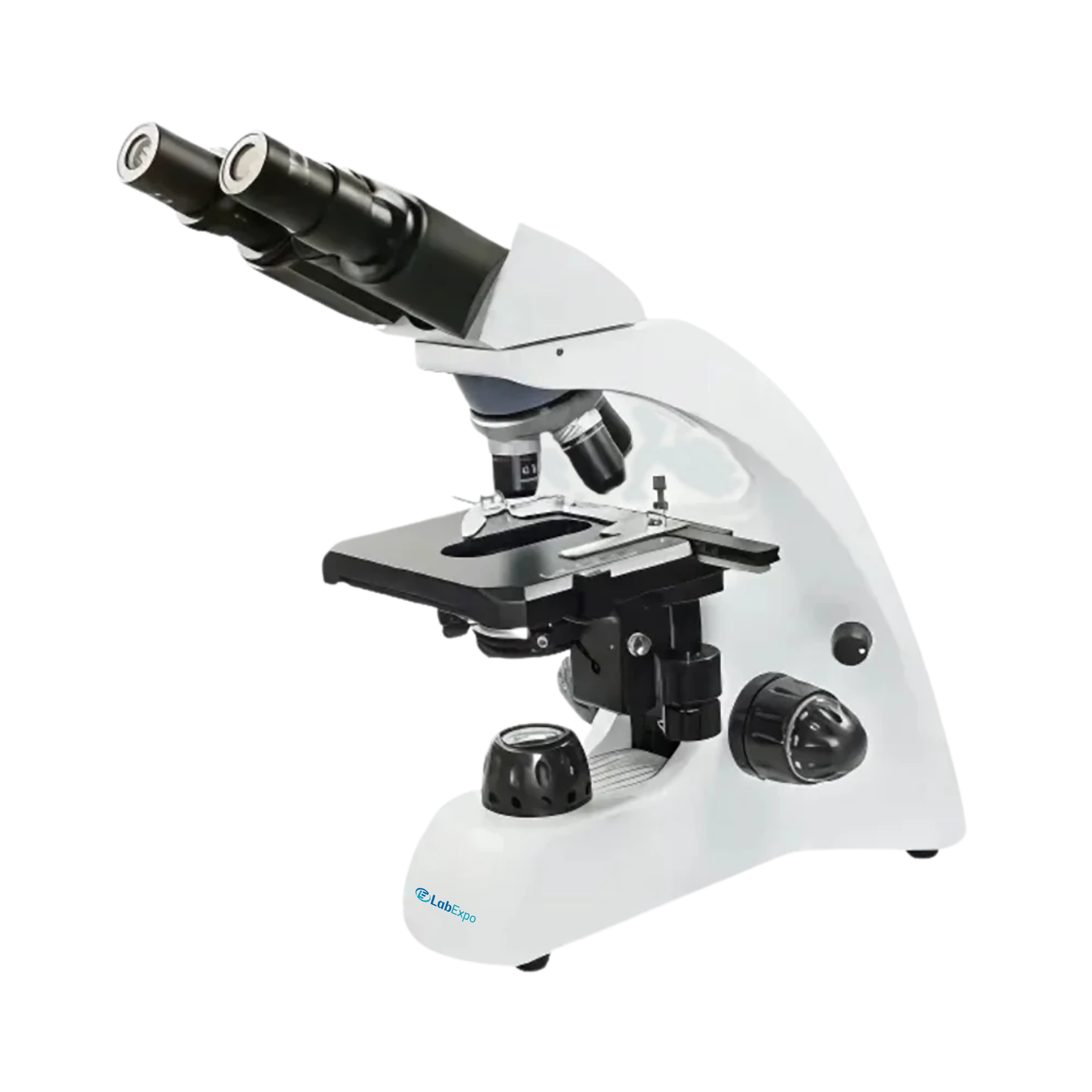

Binocular Head Biological Microscope 03B-BMB101

Binocular Head Biological Microscope 03B-BMB101

03B-BMB101 model Microscope is primarily designed for observing cells, tissues and other biological specimens. Multiple lenses can be attached, which gives this microscope a magnification that can range from 4x to 100x. The objective lenses have short working distances with high apertures.

Specifications

Nosepiece 4-places revolver nosepiece
Head Binocular head
Objective Oil Achromatic objectives A 4x-10x-40x-100x
Eyepiece n.2 eyepiece WF 10x/18
Lighting System Led adjustable lighting system, 1 Watt

Features

  • Comfortable side and top type Binocular and Trinocular viewing heads
  • Microscopes have an enclosed safety stage and good quality optical and mechanical performance
  • Advanced instrument with latest optical design and advanced build quality incorporating all the features
  • Quadruple nosepiece with 4x,10x, 40x and 100x oil objectives
  • Ergonomic and come with an easy to carry stand with a variety of options as standard
  • Excellent optical performance and a rugged and a robust construction
  • Infinity Corrected Optical System (ICOS) with all newly designed Plan achromatic optics
  • Perfect illumination to control and concentrate light on your specimens
  • Easy to control brightness, contrast, depth of filed, and evenness of illumination by adjusting the distance between the condenser and objective

Applications

These microscopes are used in advanced university teachings and routine use. These are extensively used in determining cells, tissues and biological specimens and in many other biomedical research laboratories.

Spare Parts

Wide field eyepiece WF10x (20)
Wide field eyepiece WF10x (20) F.T. focusable with graticule
Wide field eyepiece WF16x (12)
Objective SPA 4x / 0,10 °° /
Objective SPA 10x / 0,25 °° / 0,17
Objective SPA 20x / 0,40 °° / 0,17
Objective SPA 40x / 0,65 °° / 0,17
Objective SPA 60x / 0,80 °° / 0,17
Objective SPA HI 100x /1,25°° / 0,17


Catalog

Binocular Head Biological Microscope 03B-BMB101 Catalog

Related Models Of Biological Microscope

Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
