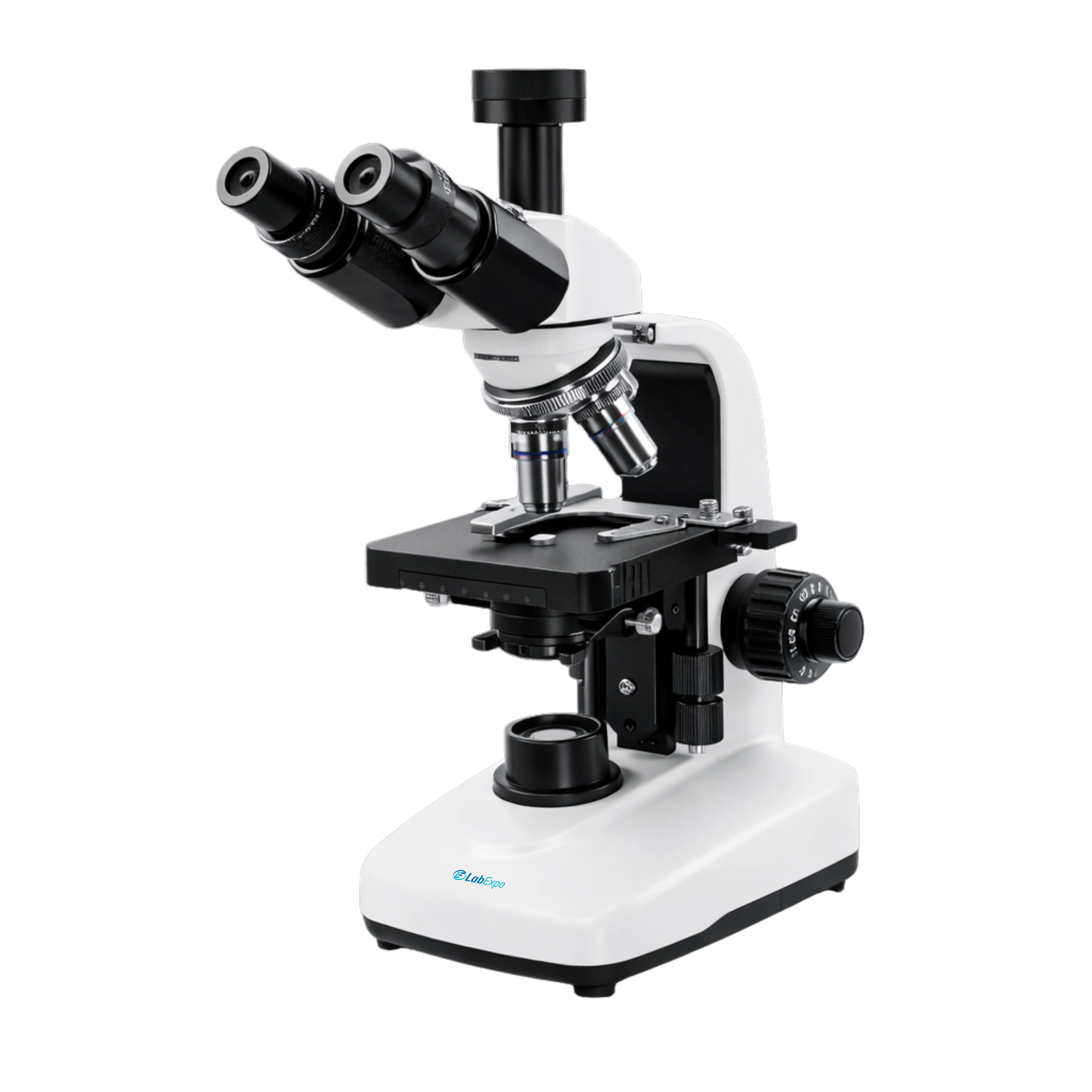

Trinocular Head Biological Microscope 03B-TMPH201

Trinocular Head Biological Microscope 03B-TMPH201

Lab Expo Trinocular Head Biological Microscope 03B-TMPH201 is primarily designed for observing cells, tissues and other biological specimens. Multiple lenses can be attached, which gives this microscope a magnification that can range from 10x to 40x. This microscope comes with fully coated glass optics and advanced features, with objective lenses having short working distances with high apertures.

$3,293.00 $ 2744

Trinocular Head Biological Microscope 03B-TMPH201 - Specifications

Nosepiece 4-places revolver nosepiece
Head Trinocular Head
Objective Oil Plan achromatic objectives for phase contrast: Pa10x Ph - Pa40x Ph
Eyepiece n.2 eyepiece WF 10x/18
Lighting System Halogen adjustable lighting system 6v/20watt

Trinocular Head Biological Microscope 03B-TMPH201 - Key Features

  • Halogen adjustable lighting system 6V20W with variable intensity control
  • Trinocular head design enabling simultaneous viewing and digital imaging attachment
  • Four-place revolver nosepiece accommodating multiple objective lenses securely
  • Plan achromatic objectives Pa10x Ph and Pa40x Ph for phase contrast applications
  • WF 10x/18 eyepieces providing wide field observation with high eye point comfort

Trinocular Head Biological Microscope 03B-TMPH201 - Applications

FunctionImplementation
Clinical diagnosticsWF 10x/18 eyepieces enable detailed cell observation
Quality control labsPa10x Ph - Pa40x Ph objectives support phase contrast analysis
Research laboratoriesHalogen 6v/20watt lighting provides adjustable specimen illumination
Educational institutions4-places revolver nosepiece allows rapid objective switching
Industrial inspectionMagnification range from 10x to 40x facilitates sample examination

Trinocular Head Biological Microscope 03B-TMPH201 - Spare Parts

Wide field eyepiece WF10x (18)
Wide field eyepiece WF10x (18) F.T. focusable with measure graticule
Wide field eyepiece WF16x (11)
Phase contrast objective PA 20x /0,40 -160 /0,17 PH (for series Ph2)
Phase contrast objective PA HI 100x / 1,25 -160 / 0,17 PH (for series Ph3)

Trinocular Head Biological Microscope 03B-TMPH201 - Catalog

Trinocular Head Biological Microscope 03B-TMPH201 Catalog

Related Biological Microscope

Lab Expo Biological Microscopes are structured around compound optical pathways to deliver high-resolution imaging for cellular and tissue analysis. This biological compound microscope supports multi-objective magnification with infinity-corrected optics and plan achromatic lenses for flat-field clarity. Stable stage mechanics, ergonomic binocular or trinocular viewing, and controlled illumination enable accurate observation for research, education, and clinical laboratory workflows.
