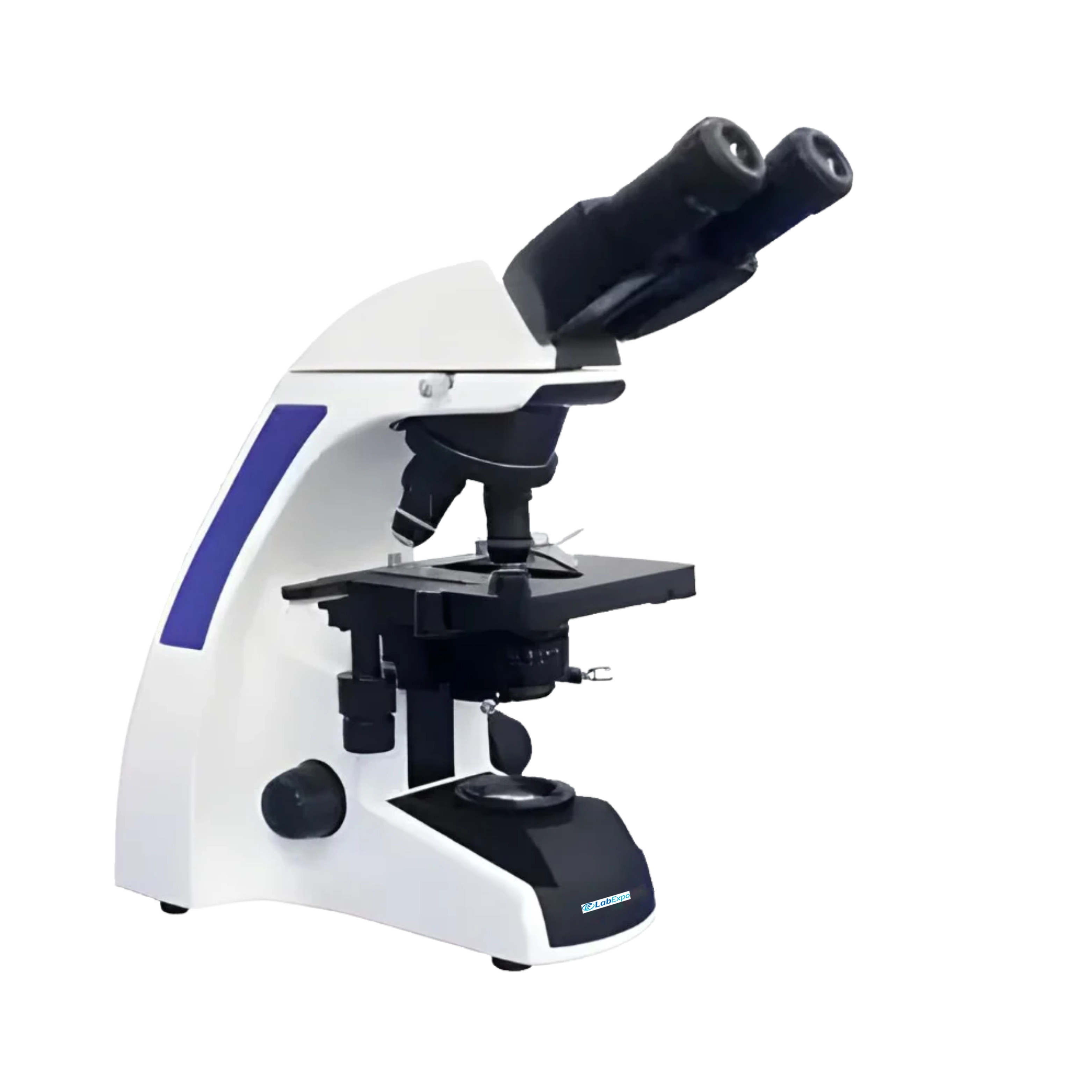

Biological Microscope 4-BM100

Name: Biological Microscope 4-BM100
Brand: Labexpo
SKU: 4-BM100
Rating: 4.8 (864 reviews)

Lab Expo Biological Microscope 4-BM100 comes with 4X, 10X, 40X, and 100X (oil) objectives offering clear and high-quality images at different magnifications. It features a binocular viewing head inclined at a comfortable 45° for comfortable and flexible viewing. It has a large graphite-coated stage that offers stability and smooth movement for specimens. Our microscope has bright LED lighting with adjustable brightness for better visibility of different specimens.

$2,256.00 $ 1880

Biological Microscope 4-BM100 - Specifications

Optical System	Finite Optical System
Viewing Head	Seidentopf Binocular Viewing Head Inclined at 45⁰ 360⁰Rotatable
Eyepiece	Wide Field Eyepiece WF10X/20mm
Nosepiece	Quadruple Nosepiece
Objective	Finite 195 Series Achromatic Objectives 4X 10X 40Xs 100Xs(oil)
Condenser	Abbe Condenser NA1.25 with Diaphragm, Filter
Focusing Unit	Coarse and Fine Adjustment Fine Division: 0.001mm Coarse Stroke: 37.7mm/Rotation Fine Stroke: 0.1mm/Rotation Moving range: 24mm
Stage	Double Layer Mechanical Stage: 142 × 132mm Moving Range: 75mm × 50mm
Illumination	External Illumination, 3W/LED
Packaging Dimensions	540 × 330 × 400 mm
Net Weight	7 Kg
Gross Weight	9.5kg

Biological Microscope 4-BM100 - Key Features

Wide Field Eyepiece WF10X/20mm with diopter adjustment
Seidentopf Binocular Viewing Head 45 degree inclination 360 degree rotation
Coarse and Fine Adjustment System fine division 0.001mm coarse stroke 37.7mm/Rotation
Kohler Illumination Condenser Abbe NA1.25 with diaphragm filter
Trinocular Viewing Head option for photographic documentation

Biological Microscope 4-BM100 - Applications

Function	Implementation
Quality control labs	100Xs(oil) objective enables detailed specimen analysis
Clinical diagnostics	WF10X/20mm eyepiece supports extended viewing sessions
Research laboratories	37.7mm/Rotation coarse stroke allows rapid focus adjustment
Industrial inspection	75mm × 50mm moving range accommodates varied sample sizes
Educational institutions	45° inclined head provides ergonomic user positioning

Biological Microscope 4-BM100 - Optional Accessories

WF20X/12mm eyepiece
A set of finite Plan CF 4x 10x 40x 100xs (oil) objective
WF16X/15mm eyepiece
