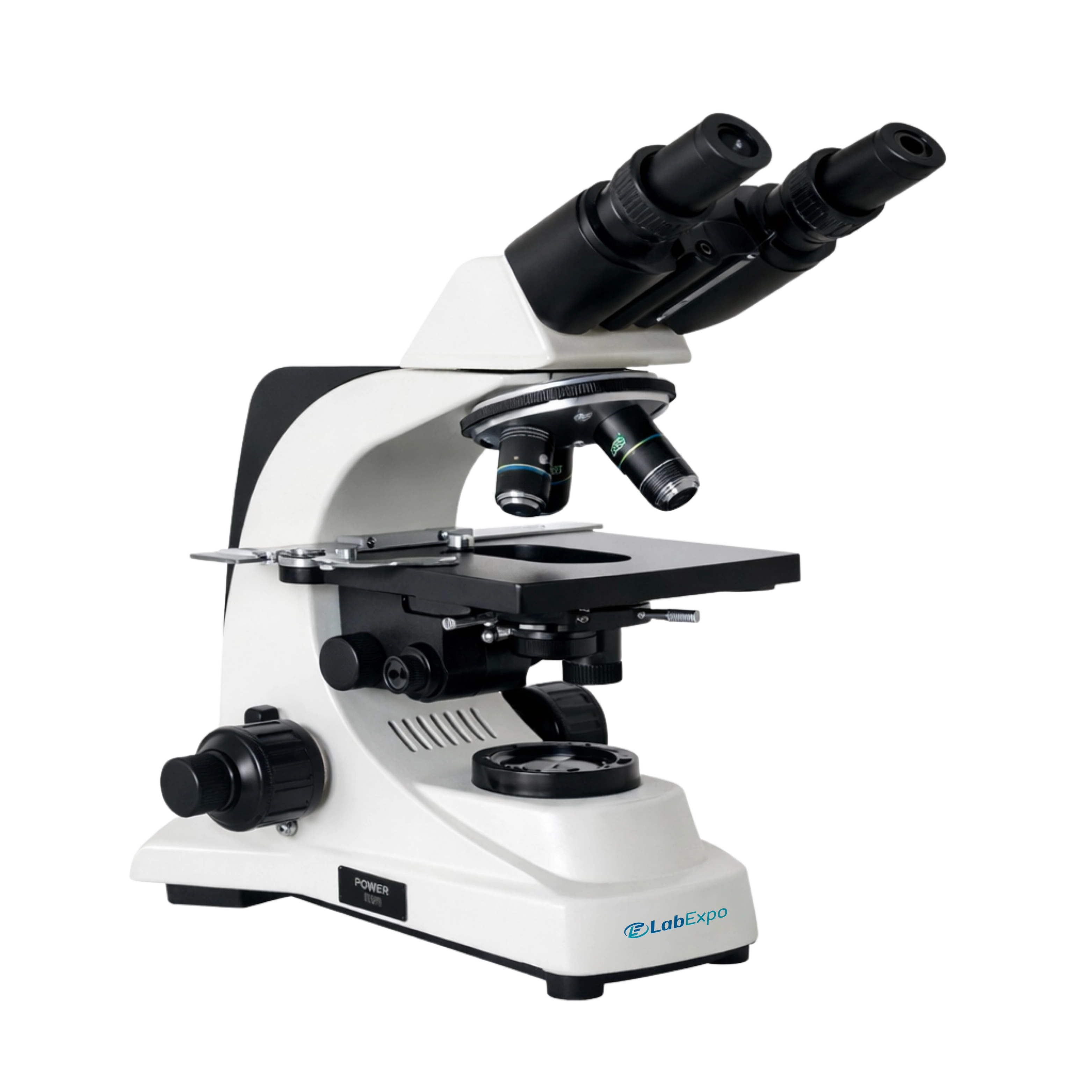

Biological Microscope 43-BMS101

Biological Microscope 43-BMS101

Lab Expo Biological Microscope 43-BMS101 features WF 10X/18 mm eyepieces for clear, wide-field observation of specimens. It has a Siedentop binocular head with an interpupillary distance of 48 to 75 mm for comfortable viewing. It has an Abbe N.A. 1.25 condenser with an iris diaphragm and filter that provides precise control of light for clear sample illumination. It has a finite optical system that delivers clear and accurate images for detailed observation.

$3,840.00 $ 3200

Biological Microscope 43-BMS101 - Specifications

Optical system Finite Optical System
Viewing Head Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360°
Eyepiece WF 10 X / 18 mm
Nosepiece Quadruple, click-stop
Objective Achromatic objective 4 x, 10 x, 40 x(s), 100 x(s,oil)
Stage Double layer mechanical stage : 140 × 132 × 75 × 45 mm
Focusing Coaxial coarse & fine adjustment, focusing range 30 mm, focusing interval 0.002 mm
Condenser Abbe N.A. 1.25 condenser with iris diaphragm & filter
Illumination 3 W LED, adjustable brightness
Dimension 350 × 245 × 460 mm
Net weight 5 kg
Gross weight 7 kg

Biological Microscope 43-BMS101 - Key Features

  • Siedentopf binocular head with 48 to 75 mm interpupillary distance range
  • Abbe N.A. 1.25 condenser with iris diaphragm and filter for light control
  • WF10X eyepiece with 18 mm field number for wide-field observation
  • Quadruple nosepiece with click-stop mechanism for objective positioning

Biological Microscope 43-BMS101 - Applications

FunctionImplementation
Clinical diagnostics3 W LED illumination supports precise specimen visualization
Research laboratories100x oil immersion objective enables detailed cellular analysis
Quality control labs48-75 mm interpupillary distance ensures ergonomic extended use
Educational institutionsSiedentopf binocular head with 360° rotation facilitates group observation
Industrial inspectionCoaxial focusing with 0.002 mm interval allows fine structural assessment

Biological Microscope 43-BMS101 - Optional Accessories

Phase contrast kit (10 x, 20 x, 40 x, 100 x)
Dark field condenser (dry or oil)
Siedentop trinocular head

Biological Microscope 43-BMS101 - Catalog

Biological Microscope 43-BMS101 Catalog
