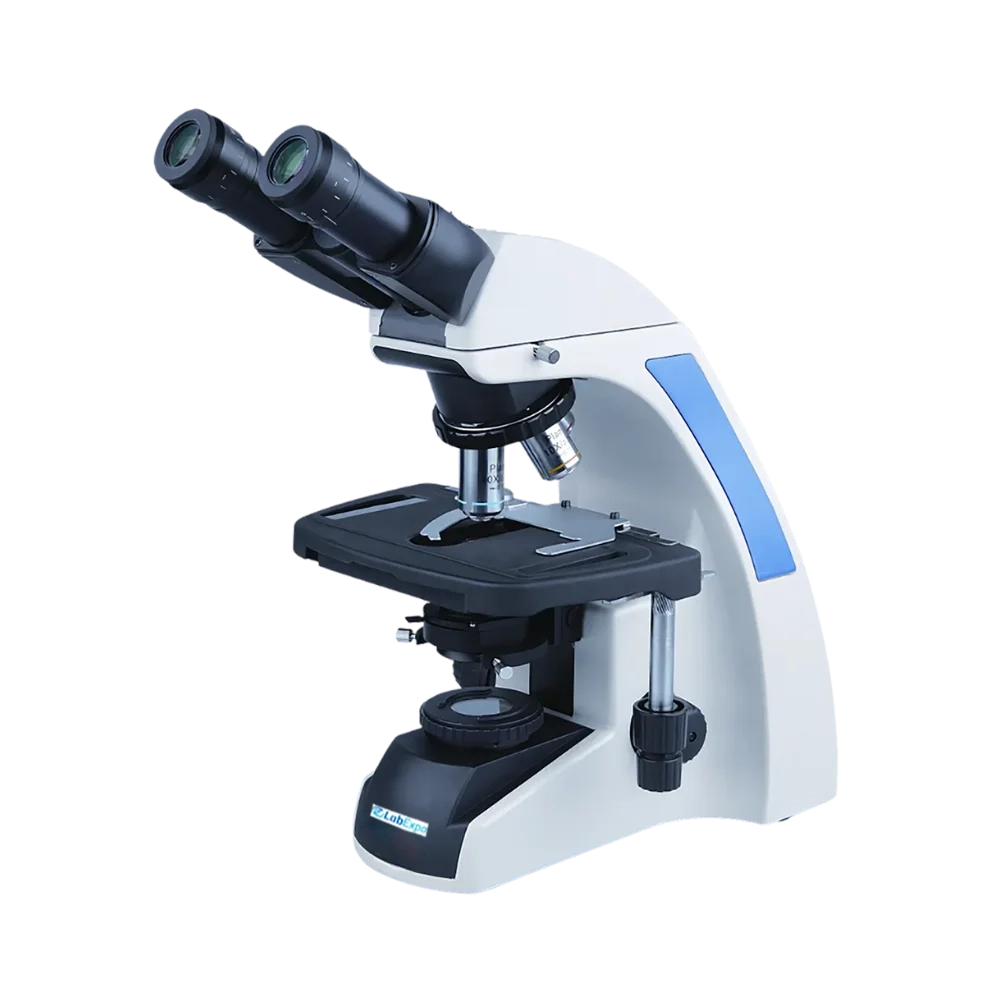

Biological Microscope 43-BMS102

Biological Microscope 43-BMS102

Lab ExpoBiological Microscope 43-BMS102 features a Siedentopf binocular head with interpupillary distance adjustment from 48 to 75 mm and 360º tube rotation. Equipped with achromatic objectives (4x, 10x, 40x spring, 100x spring oil) and a quadruple click-stop nosepiece for precise magnification selection. Illumination options include a 6V/20W halogen lamp or adjustable-brightness LED.  Supported by an Abbe condenser with iris diaphragm, and filter holder for enhanced contrast control in biological sample analysis within research, clinical quality control educational settings.,.

$2,731.00 $ 2276

Biological Microscope 43-BMS102 - Specifications

Optical system Finite Optical System
Viewing Head Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360º
Eyepiece WF 10 X
Nosepiece Quadruple, click-stop
Objective Achromatic objective 4 x, 10 x, 40 x(s), 100 x(s,oil)
Stage Double layer mechanical stage: 140 × 132 × 75 × 45 mm
Focusing Coaxial coarse & fine adjustment, focusing range 30 mm, Focusing interval 0.002 mm
Condenser Abbe N.A. 1.25 condenser with iris diaphragm & filter
Illumination 6 V / 20 W Halogen lamp or 3 W LED, adjustable brightness
Dimension 320 × 270 × 430 mm
Net weight 5.5 kg
Gross weight 6 kg

Biological Microscope 43-BMS102 - Key Features

  • Siedentopf binocular head with 48-75mm interpupillary distance range
  • Achromatic objectives 4x 10x 40x(s) and 100x(s oil)
  • Quadruple click-stop nosepiece for rapid objective selection
  • 6V/20W halogen lamp or adjustable brightness 3W LED illumination system

Biological Microscope 43-BMS102 - Applications

FunctionImplementation
Quality control labs30 mm focusing range enables detailed specimen examination
Clinical diagnosticsWF 10X eyepiece supports clear visual analysis
Research laboratoriesAchromatic 100X(s, oil) objective allows high-magnification observation
Educational institutionsSiedentopf head interpupillary range 48-75mm accommodates multiple users
Industrial testingAdjustable brightness illumination adapts to variable lighting conditions

Biological Microscope 43-BMS102 - Optional Accessories

Trinocular head
Phase contrast kit (10 x, 20 x, 40 x, 100 x)
Dark field condenser (dry or oil)

Biological Microscope 43-BMS102 - Catalog

Biological Microscope 43-BMS102 Catalog
