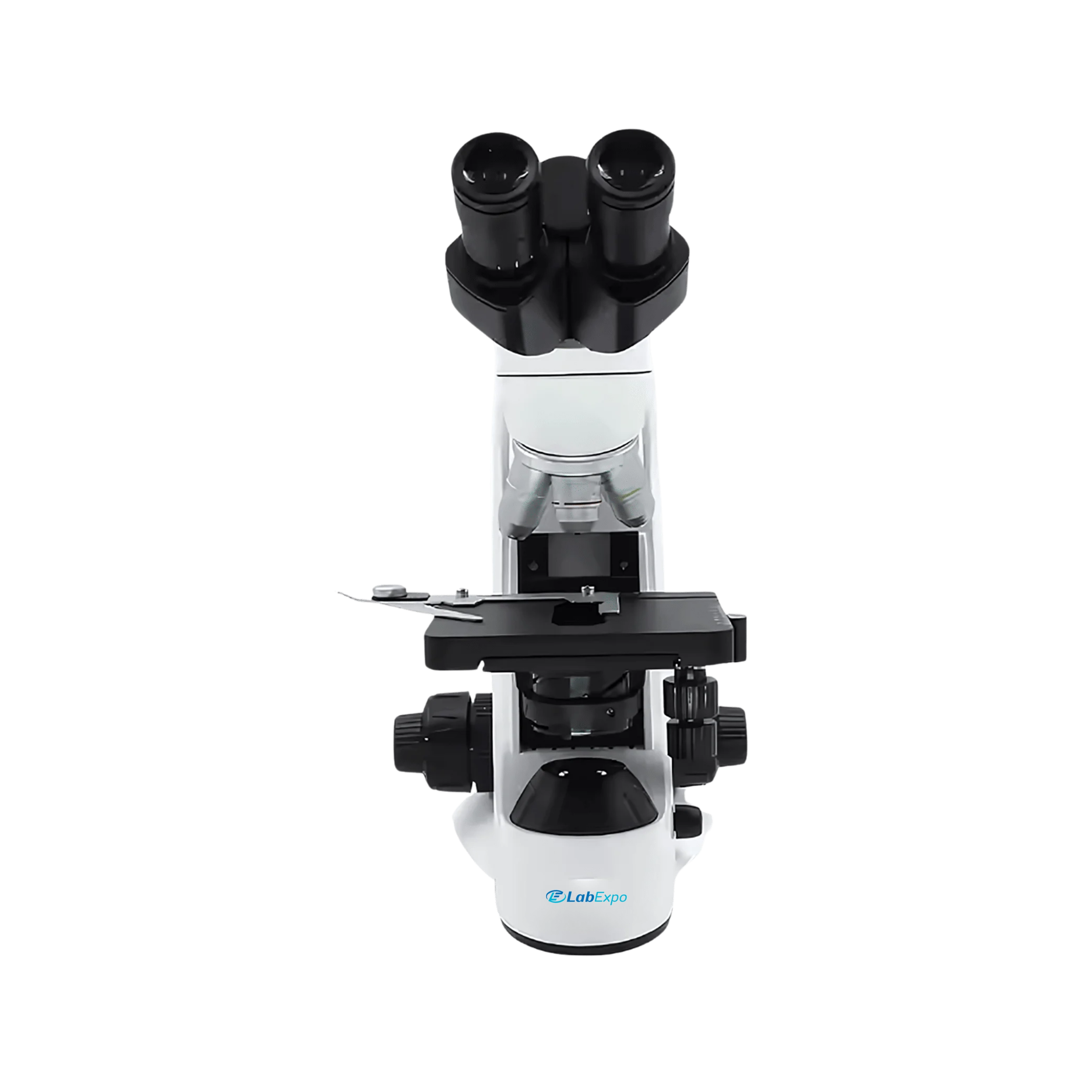

Biological Microscope 43-BMS300 is useful for fine & coarse focusing of specimens very quickly & sharply. This microscope is ergonomically designed and is convenient for long term use. 3W LED lamp is used as aspheric illumination source. They are user-friendly in nature.
$3,005.00 $ 2504
| Optical system | Infinite optical system |
| Viewing Head | Siedentopf binocular head, inclined at 30º, interpupillary distance range 50 - 75 mm, eyepiece tube rotation 360º |
| Eyepiece | WF 10 X / 20 mm (high eye point) |
| Nosepiece | Quadruple nosepiece |
| Objective | Infinite semi-plan objective: 4 x, 10 x, 40 x(s), 100 x(s,oil) |
| Stage | Mechanical stage Size: 125 × 120 mmTravel range: 76 × 30 mm Scale: 0.1 mm |
| Condenser | Abbe condenser N.A. 1.25 with iris diaphragm |
| Illumination | 3 W LED illumination, voltage 100 ~ 240 |
| Wire winding device | Wire winding device for the microscope |
| Dimension | 340 × 260 × 470 mm |
| Net weight | 6 kg |
| Gross weight | 7 kg |
Function Implementation Clinical specimen analysis 100 x(s,oil) objective enables detailed cellular examination Quality control inspection Mechanical stage travel range 76 × 30 mm supports precise sample positioning Research laboratory use Infinite optical system allows for ergonomic long-term observation Educational demonstrations Siedentopf binocular head interpupillary distance 50 - 75 mm accommodates multiple users Industrial material testing 3 W LED illumination voltage 100 ~ 240 ensures consistent lighting in varied facilities
Dark field ring (dry N.A. 0.9)
Polarizing unit: Polarizer, Analyzer
1 x C - mount (available for digital photography)
0.5 x C - mount(available for digital camera)
Objective: Infinite plan 60 x, Infinite plan 100 x, (s,water)
Trinocular head
Mechanical stage: Size 145 mm × 140 mm Travel range: 76 mm × 52 mm
Scale: 0.1 mm
Two slide holder
Lab Expo Biological Microscopes are structured around compound optical pathways to deliver high-resolution imaging for cellular and tissue analysis. This biological compound microscope supports multi-objective magnification with infinity-corrected optics and plan achromatic lenses for flat-field clarity. Stable stage mechanics, ergonomic binocular or trinocular viewing, and controlled illumination enable accurate observation for research, education, and clinical laboratory workflows.
