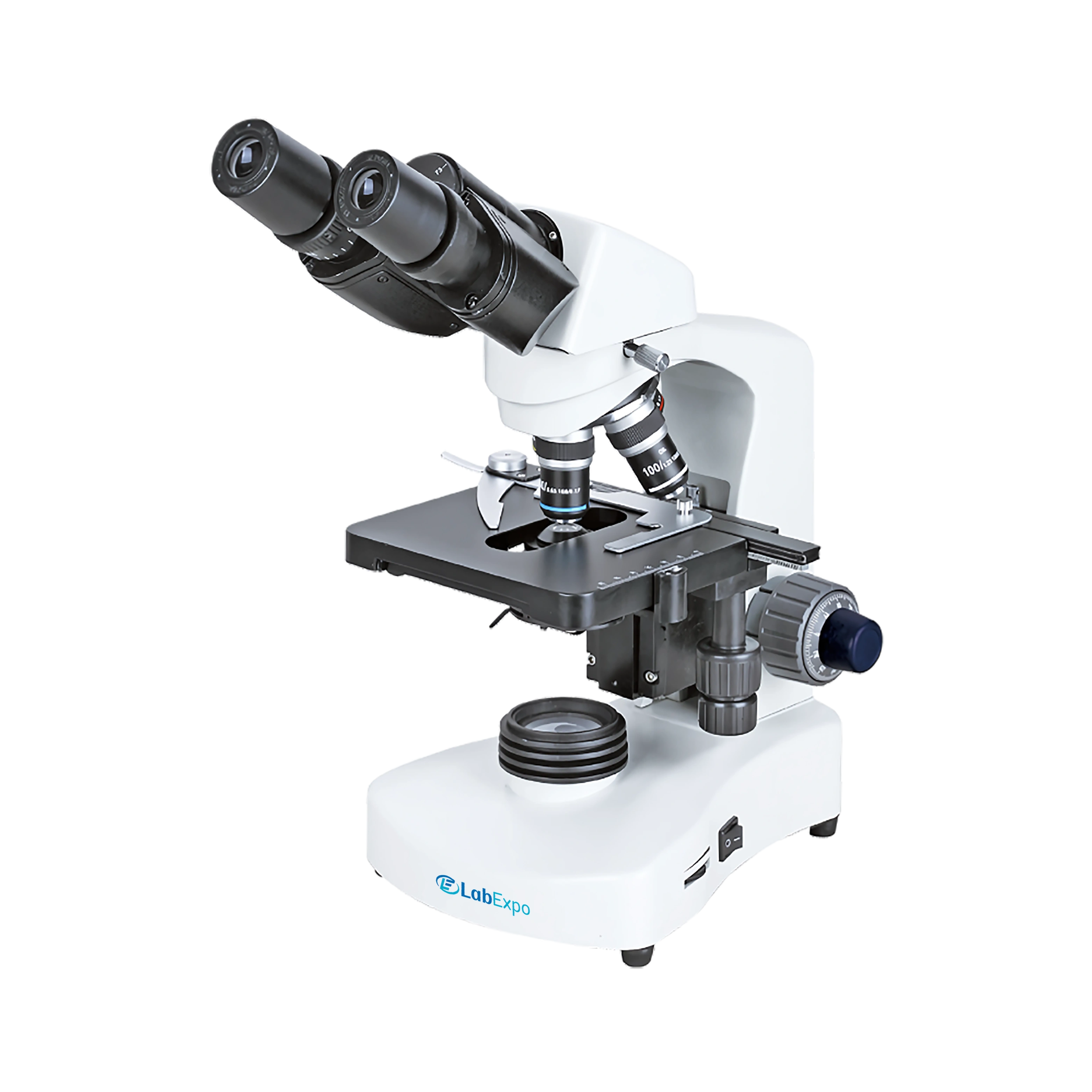

Biological Microscope LE-BM303

Biological Microscope LE-BM303
Model: LE-BM303

Lab Expo Biological Microscope LE-BM303 delivers stable and imaging with advanced alignment technology. Equipped with a binocular viewing head for enhanced visual comfort and accuracy. Integrated optical components ensure clarity and consistency during observation. Incorporated ergonomic design provides comfortable and efficient user experience. Our Biological Microscope is suitable for clinical diagnostics, education, and laboratory research applications.

$2,004.00 $ 1670

Biological Microscope LE-BM303 - Specifications

Viewing Head Hinged type Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm
Eyepiece WF10X/18P16X/11
Objective Achromatic Objective 4X、10X、40X、100X
Nosepiece Backward Quadruple Nosepiece
Stage Double Layer Mechanical Stage 132X142mm/ 75X40mm
Focusing Coaxial Coarse and Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 32.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm
Condenser Abbe NA 1.25 with Iris Diaphram and Filter
Illumination S-LED Illumination, Brightness AdjustableHalogen Lamp 6V/ 20W, Brightness Adjustable

Biological Microscope LE-BM303 - Key Features

  • Backward quadruple nosepiece with four objective positions
  • S-LED illumination system with adjustable brightness control
  • Halogen lamp 6V 20W with variable intensity settings
  • Abbe condenser NA 1.25 with iris diaphragm and filter
  • Coaxial focusing mechanism fine division 0.004mm resolution
  • WF10X eyepieces field number 18 for wide field observation

Biological Microscope LE-BM303 - Applications

FunctionImplementation
Clinical diagnostics100X achromatic objective enables detailed cellular observation
Educational laboratoriesWF10X/18 eyepiece supports extended viewing sessions
Research applicationsAbbe NA 1.25 condenser enhances resolution for specimen analysis
Quality control labsDouble layer mechanical stage 132X142mm allows precise sample positioning
Laboratory researchCoaxial fine adjustment 0.004mm division enables accurate focusing adjustments

Biological Microscope LE-BM303 - Catalog

Biological Microscope LE-BM303 Catalog

Biological Microscope LE-BM303

Biological Microscope LE-BM303

Related Biological Microscope

Lab Expo Biological Microscopes are structured around compound optical pathways to deliver high-resolution imaging for cellular and tissue analysis. This biological compound microscope supports multi-objective magnification with infinity-corrected optics and plan achromatic lenses for flat-field clarity. Stable stage mechanics, ergonomic binocular or trinocular viewing, and controlled illumination enable accurate observation for research, education, and clinical laboratory workflows.
