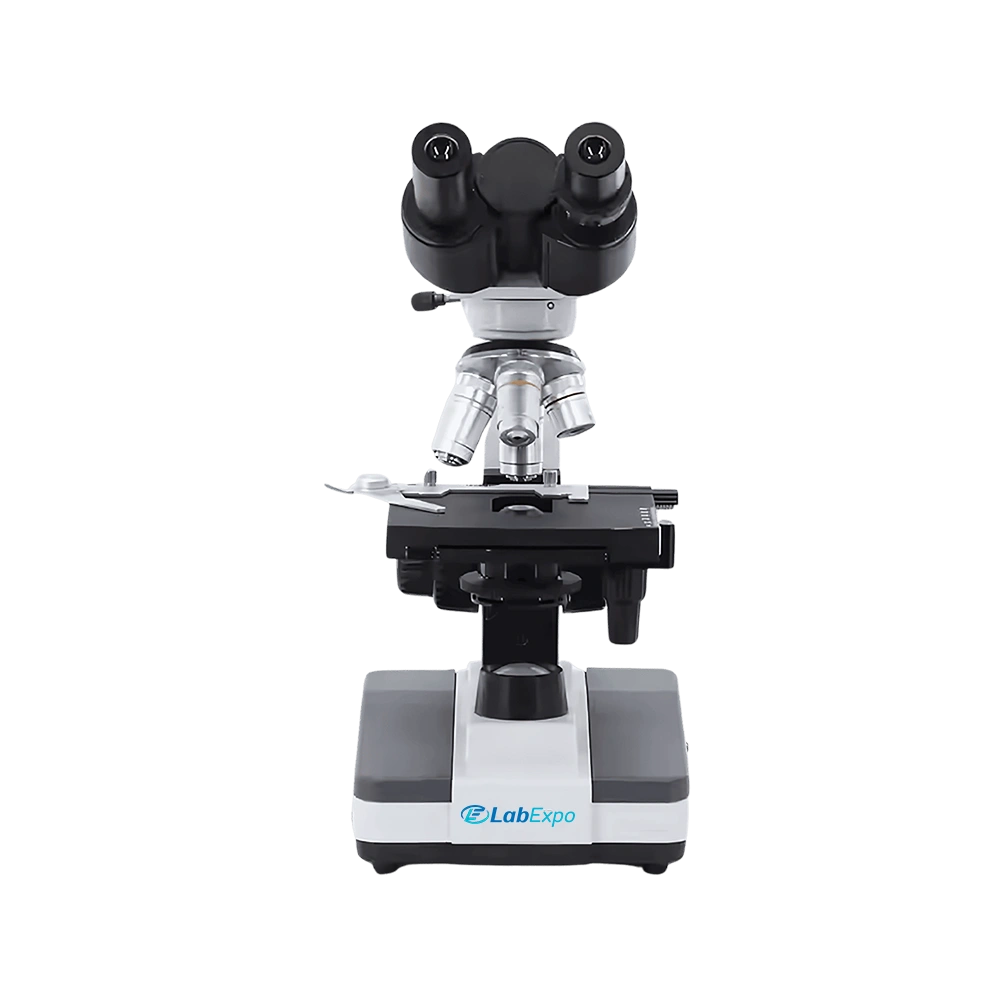

Biological Microscope LE-BMI101

Lab Expo Biological Microscope LE-BMI101 includes a finite Optical System and a binocular head with 48 to 75 mm interpupillary distance range. Equipped with advanced illumination capability with adjustable brightness. Integrated with widefield eyepieces and a coaxial focusing mechanism for fine adjustment. Our Biological Microscope is ideal for clinical diagnostics and detailed analysis of biological samples in laboratories.

$1,608.00 $ 1340

Biological Microscope LE-BMI101 - Specifications

Optical System Finite Optical System
Viewing Head Siedentopf Binocular HeadInterpupillary Distance Range: 48–75 mmEyepiece Tube Rotation: 360°
Eyepiece WF10X
Nosepiece Quadruple, Click-stop
Objective Achromatic Objectives: (4x, 10x, 40x, 100x)
Stage Double Layer Mechanical StageStage Size: 140 mm × 132 mmMoving Range: 75 mm × 45 mm
Focusing Coaxial Coarse & Fine AdjustmentFocusing Range: 30 mmFocusing Interval: 0.002 mm
Condenser Abbe Condenser NA = 1.25With Iris Diaphragm and Filter
Illumination 6V/20W Halogen Lamp or 3W LED with Adjustable Brightness
Standard Accessories Yes
Dimension 320 mm × 270 mm × 430 mm
Net Weight 5.5 kg
Gross Weight 6 kg

Biological Microscope LE-BMI101 - Key Features

  • Mechanical stage with 75mm x 45mm moving range
  • Adjustable iris diaphragm on Abbe condenser NA1.25
  • Diopter adjustment for interpupillary distance 48-75mm

Biological Microscope LE-BMI101 - Applications

FunctionImplementation
Clinical diagnostics48–75 mm interpupillary distance supports comfortable extended viewing
Laboratory researchWF10X eyepiece enables detailed specimen observation
Quality control testing30 mm focusing range allows precise sample adjustment
Industrial inspection75 mm × 45 mm stage moving range facilitates slide navigation
Educational training6V/20W halogen lamp provides adjustable illumination for clear imaging

Biological Microscope LE-BMI101 - Standard Accessories

  • Blue Filter × 1
  • BGX1-20 Fuse × 1
  • Dust Cover × 1
  • Immersion Oil (5 ml) × 1

Biological Microscope LE-BMI101 - Catalog

Biological Microscope LE-BMI101 Catalog
