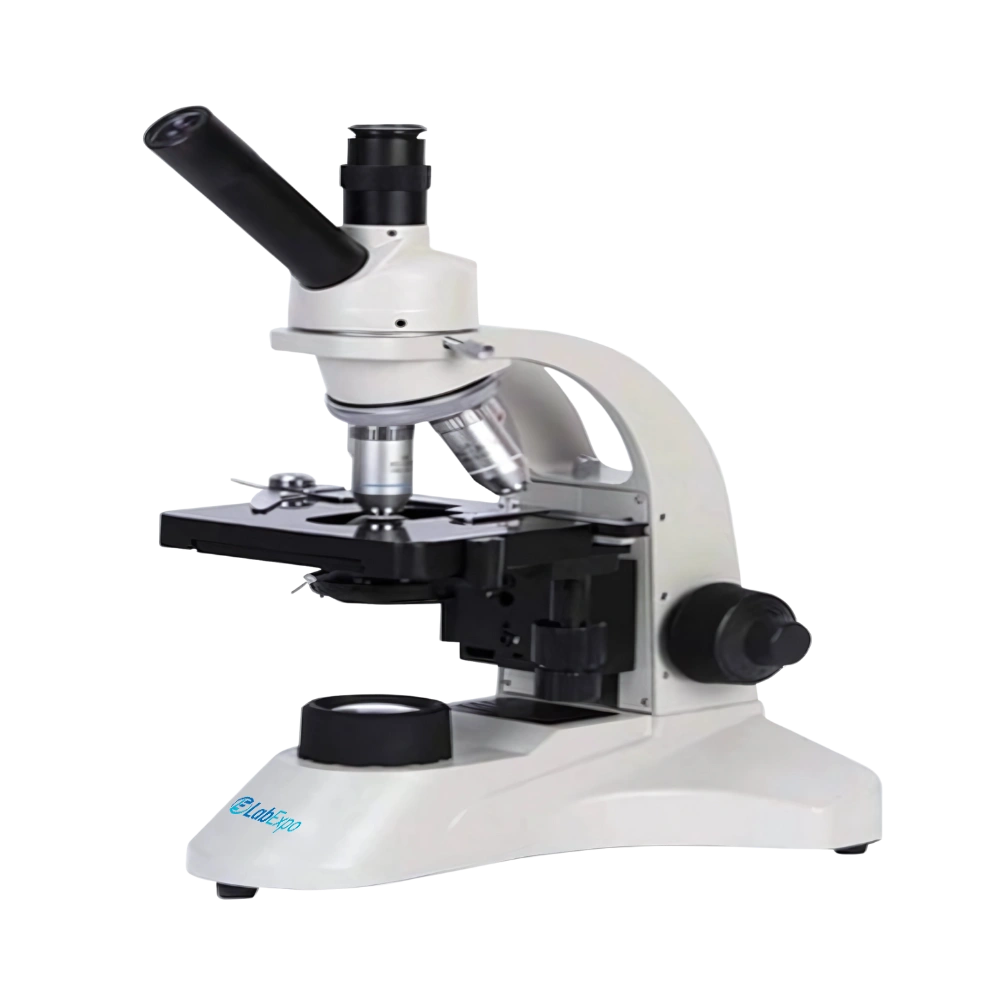

Lab Expo Biological Microscope LE-BMI104 offers 45°inclined monocular head with a finite optical system for precise biological observation. Equipped with achromatic objectives for sharp imaging across various magnifications. Incorporated with an ergonomic design, it supports user comfort during prolonged lab work. Built-in CCD camera compatibility enables digital imaging and documentation. Our Biological Microscope is ideal for academic training, clinical diagnostics, and routine sample analysis in laboratories.
$1,738.00 $ 1448
| Optical System | Finite Optical System |
| Viewing Head | Monocular viewing head, 45° inclined, 360° rotation |
| Magnification | 40X to 1600X |
| Objectives | 195 Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil) |
| Eyepiece | Wide field WF10X/18mm and Wide field WF16X/15mm |
| Nosepiece | Inward, quadruple revolving nosepiece |
| Focusing system | Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm |
| Stage | Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm |
| Condenser | Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob |
| Illumination | 3W LED lamp, brightness adjustable |
| Power Supply | External power supply (adapter), AC 100V-240V, DC 5V/2A |
| Power Consumption | 110 W |
| Weight | 10 Kg |
Function Implementation Clinical diagnostics 100x oil immersion objective supports detailed cell morphology analysis Academic training 40X to 1600X magnification range enables observation of cellular structures Routine sample analysis Abbe condenser N.A.1.25 with iris diaphragm enhances contrast and resolution Prolonged lab work Coarse focusing range 20 mm allows rapid specimen focusing adjustment Digital documentation Built-in CCD camera compatibility enables image capture and archiving
Lab Expo Biological Microscopes are structured around compound optical pathways to deliver high-resolution imaging for cellular and tissue analysis. This biological compound microscope supports multi-objective magnification with infinity-corrected optics and plan achromatic lenses for flat-field clarity. Stable stage mechanics, ergonomic binocular or trinocular viewing, and controlled illumination enable accurate observation for research, education, and clinical laboratory workflows.
