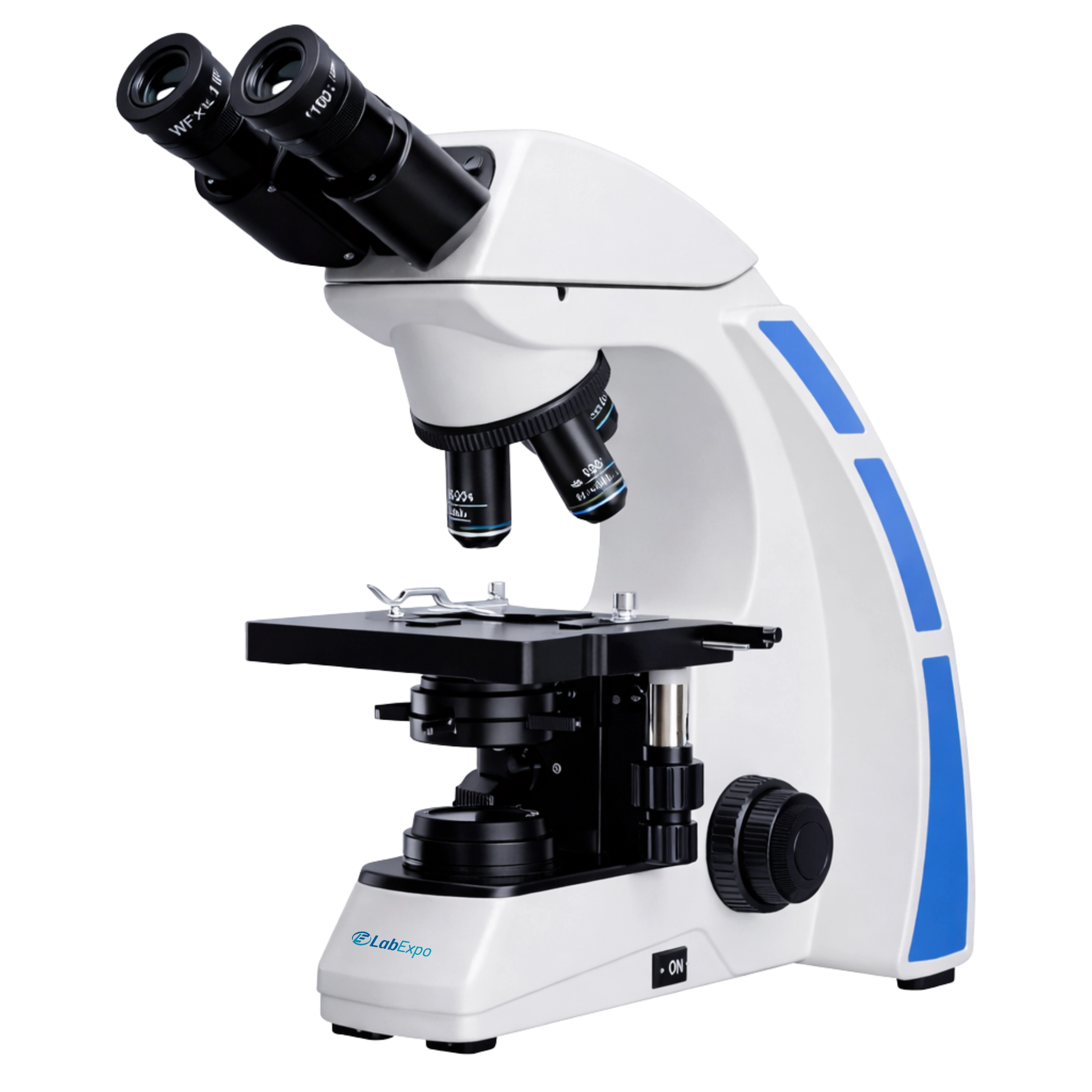

Biological Microscope 43-BMS202

Biological Microscope 43-BMS202

Overview :

Lab Expo Biological Microscope 43-BMS202 is easy to operate. With backward nosepiece design, it’s coarse and fine focusing adjustment helps in better observation of the specimen. The microscope comes with 3W LED as external source of illumination. Being compact and light in weight, it is perfect for routine microscopic analysis at research institutes, colleges.

Features:

  • Backward quadruple nosepiece with 4-position turret
  • Infinite optical system with tube length 200mm
  • 3W LED illumination at 100-240V AC input

Applications:

FunctionImplementationClinical sample analysis100x(s,oil) objective enables detailed cellular examinationEducational laboratory useBinocular viewing head with 54-75 mm interpupillary range supports shared observationQuality control inspectionCoaxial coarse & fine adjustment with 0.002mm precision allows accurate specimen focusingResearch institute workflowsInfinite optical system facilitates integration with phase contrast & dark field slidersIndustrial material testing140 mm × 132 mm stage with 76 mm × 50 mm movement range accommodates varied specimen sizes

Specifications:
Optical system Infinite optical system
Viewing Head Binocular viewing head Inclined at 30° Interpupillary distance range 54 - 75 mm
Eyepiece High eye point wide field eyepiece PL 10 X / 20 mm with ± 5 degrees diopter control
Nosepiece Backward quadruple nosepiece
Objective Infinite plan achromatic objective: 4 x, 10 x, 40 x(s), 100 x(s,oil)
Stage Coaxial Double layer mechanical stage: 140 mm × 132 mm Moving range: 76 mm × 50 mm
Focusing Coaxial coarse & fine adjustment with limited & tension adjustment Coarse adjustment range: 25mm fine adjustment precision: 0.002mm
Condenser N.A. 1.25 condenser (with socket for phase contrast & dark field sliders)
Illumination Main supply 100 to 240 V, 3 W LED lamp with intensity control (fixed center)
Dimension 600 × 600 × 300 mm
Net weight 9 kg
Gross weight 10 kg
Optional Accessories:

Trinocular head
Dark field slider for condenser
Simple polarization (polarizer & analyzer)
Phase contrast kit (10 x, 20 x, 40 x, 100 x)
