Gloss Meter 61-OTI100 Catalog

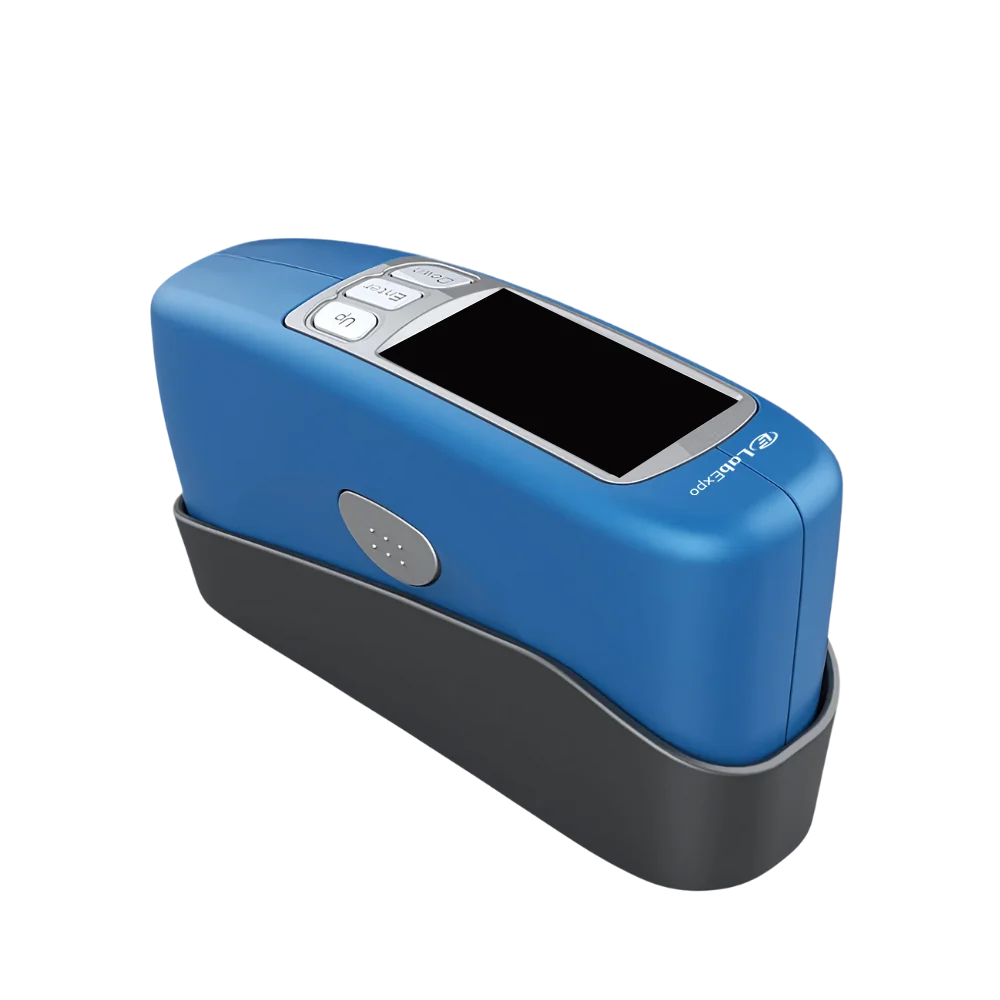

Gloss Meter 61-OTI100

Overview :

Lab Expo Gloss Meter 61-OTI100 offers a 60° measuring angle and measures the mid-range gloss area and gloss texture of plastics, glass, ceramic coating, packaging material, paper, paint, rubber, wood, leather, and flooring parts. It is equipped with a large lithium battery with a 3000 mAh capacity, which ensures continuous testing for 54300 times. All the tests taken from this gloss meter are confirmed to international standards.

Specifications:

Test angle	60°
Test light spot	60°, 9×15 mm
Measurement range	60°, 0 to 1000 GU
Resolution	0.1 GU
Tet modes	Simple mode, standard mode, sample testing mode
Repeatability	0 to 100 GU: 0.2 GU, 100 to 2000 GU:0.2% GU
Test time	0.5 S
Working temperature	0 to 40°C
Working humidity	< 85%, no condensation
Port	USB, Bluetooth (optional)
Data storage	100 standard samples, 1000 test samples
Size (LWH)	165 × 51 × 77 mm
Weight	About 400 g
Battery capacity	3000 mAh lithium battery

Features:

Microprocessor-based sensor system with 0.1 GU resolution
Test angle configured at 60 degrees for standardized measurement
3000 mAh lithium battery enabling extended operational cycles
Data storage capacity for 100 standard and 1000 test samples
Weight optimized at approximately 4G grams for portability

Applications:

FunctionImplementationQuality control labs0.5 S test time enables rapid batch evaluationPaint coating inspection0 to 1000 GU measurement range assesses finish uniformityPlastic material testing±0.2 GU repeatability ensures consistent readingsPackaging material analysis60° test angle and 9×15 mm spot targets surface characteristicsIndustrial flooring assessment3000 mAh battery supports extended field use
