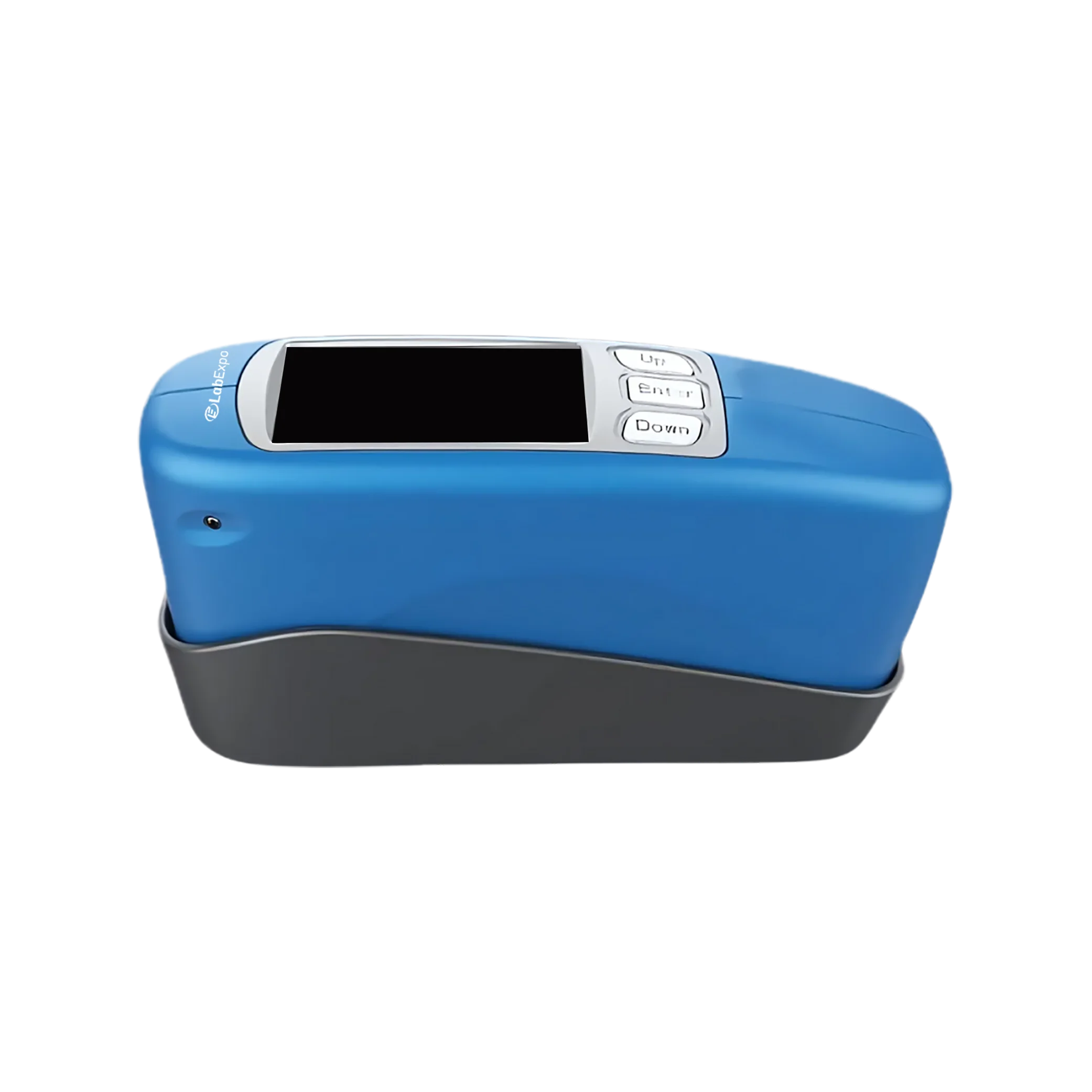

Lab Expo Gloss Meter 61-OTI100 offers a 60° measuring angle and measures the mid-range gloss area and gloss texture of plastics, glass, ceramic coating, packaging material, paper, paint, rubber, wood, leather, and flooring parts. It is equipped with a large lithium battery with a 3000 mAh capacity, which ensures continuous testing for 54300 times. All the tests taken from this gloss meter are confirmed to international standards.
$1,954.00 $ 1628
| Test angle | 60° |
| Test light spot | 60°, 9×15 mm |
| Measurement range | 60°, 0 to 1000 GU |
| Resolution | 0.1 GU |
| Tet modes | Simple mode, standard mode, sample testing mode |
| Repeatability | 0 to 100 GU: 0.2 GU, 100 to 2000 GU:0.2% GU |
| Test time | 0.5 S |
| Working temperature | 0 to 40°C |
| Working humidity | < 85%, no condensation |
| Port | USB, Bluetooth (optional) |
| Data storage | 100 standard samples, 1000 test samples |
| Size (L*W*H) | 165 × 51 × 77 mm |
| Weight | About 400 g |
| Battery capacity | 3000 mAh lithium battery |
Function Implementation Quality control labs 0.5 S test time enables rapid batch evaluation Paint coating inspection 0 to 1000 GU measurement range assesses finish uniformity Plastic material testing ±0.2 GU repeatability ensures consistent readings Packaging material analysis 60° test angle and 9×15 mm spot targets surface characteristics Industrial flooring assessment 3000 mAh battery supports extended field use
Lab Expo Gloss Meter units are used for surface gloss evaluation across coatings, plastics, paper, ceramics, and finished material inspection workflows. Systems support single and multi-angle measurement at 20°, 60°, and 85° with gloss ranges extending up to 2000 GU and defined light spot configurations for varied surface types. Configurations are arranged for consistent reflectance analysis and gloss comparison, supporting quality verification and surface finish assessment in production and testing environments.
