Horizontal Autoclave 26-HAC400 Catalog

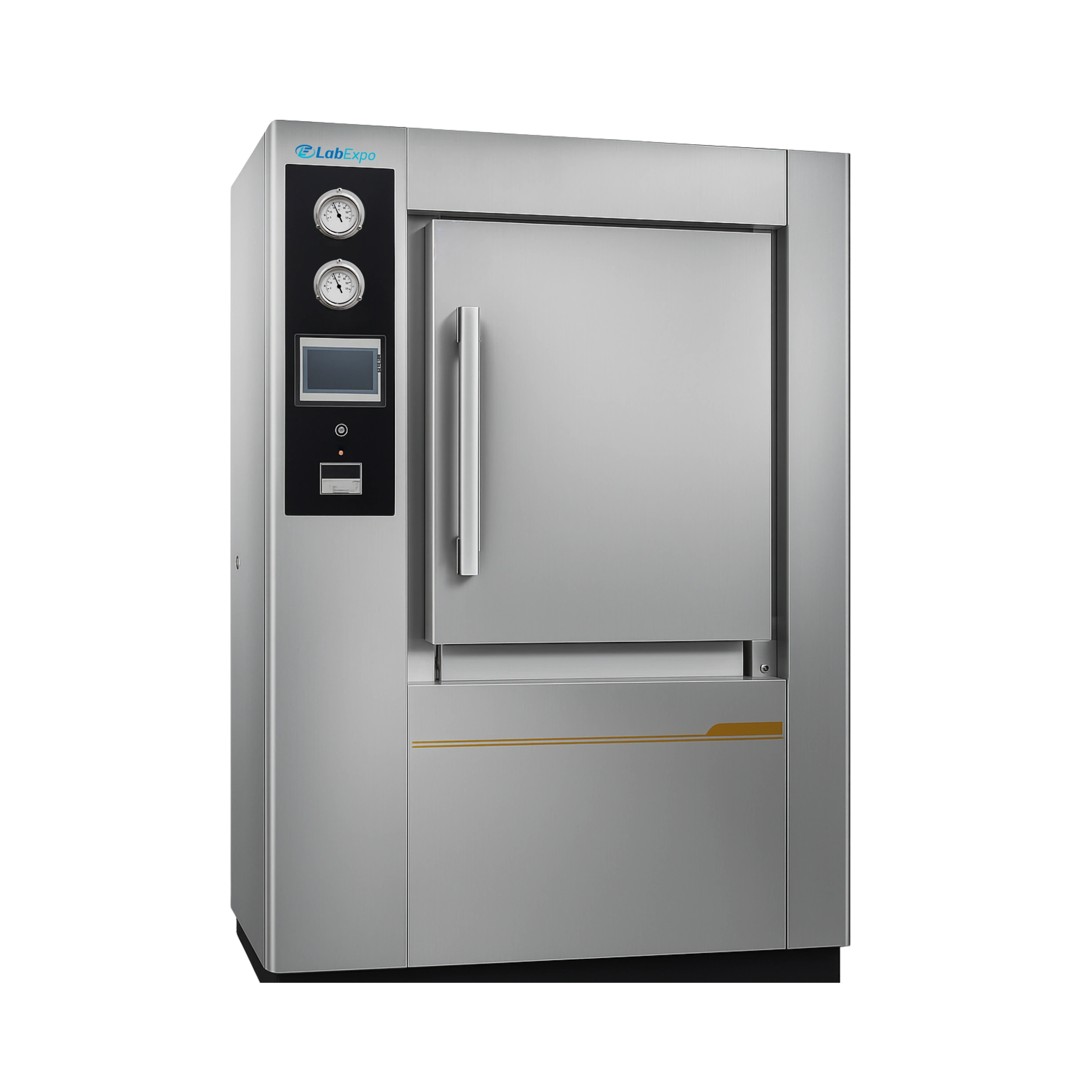

Horizontal Autoclave 26-HAC400

Overview :

Horizontal Laboratory Autoclave is a 250 Liters double door microprocessor controlled automatic autoclave. It is equipped with motorized or sliding door with an effective sterilization temperature of 139 °C. With safety features like auto door lock against raised safety pressure and automatic shutoff preventing overload of current this autoclave is an ideal laboratory device.

Features:

Digital LCD display to monitor working status and parameters
Working pressure : 0.22 MPa
Working temperature : 139 ℃
Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa
Safe door lock system ensuring safety / protection during sterilization
Automatic power cut off with alarm with low water levels indication
Motorized or sliding door with pneumatic sealing to prevent loss of sterile steam

Applications:

Used to sterilize culture media, instruments, dressings, intravenous equipments, rubber closure of glass equipments used in aseptic techniques and numerous objects that can withstand high temperature and pressure

Specifications:

Capacity	250 L
Sterilization Temperature	139 °C
Sterilization Pressure	0.25Mpa
Steam Pressure and the Consumption	0.4 - 0.6 Mpa / 15 kg
Water Source Pressure and the Consumption	0.2 - 0.3 Mpa / 150 kg
Compressed Air Pressure	0.6 - 0.8 Mpa
Power Supply	26 kw
Inner Chamber Dimension ( L × W × H )	800 × 600 × 600 mm
Outer Dimension ( L × W × H )	1100 × 1300 × 1700 mm
Net Weight	650 kg
Gross Weight	800 kg
