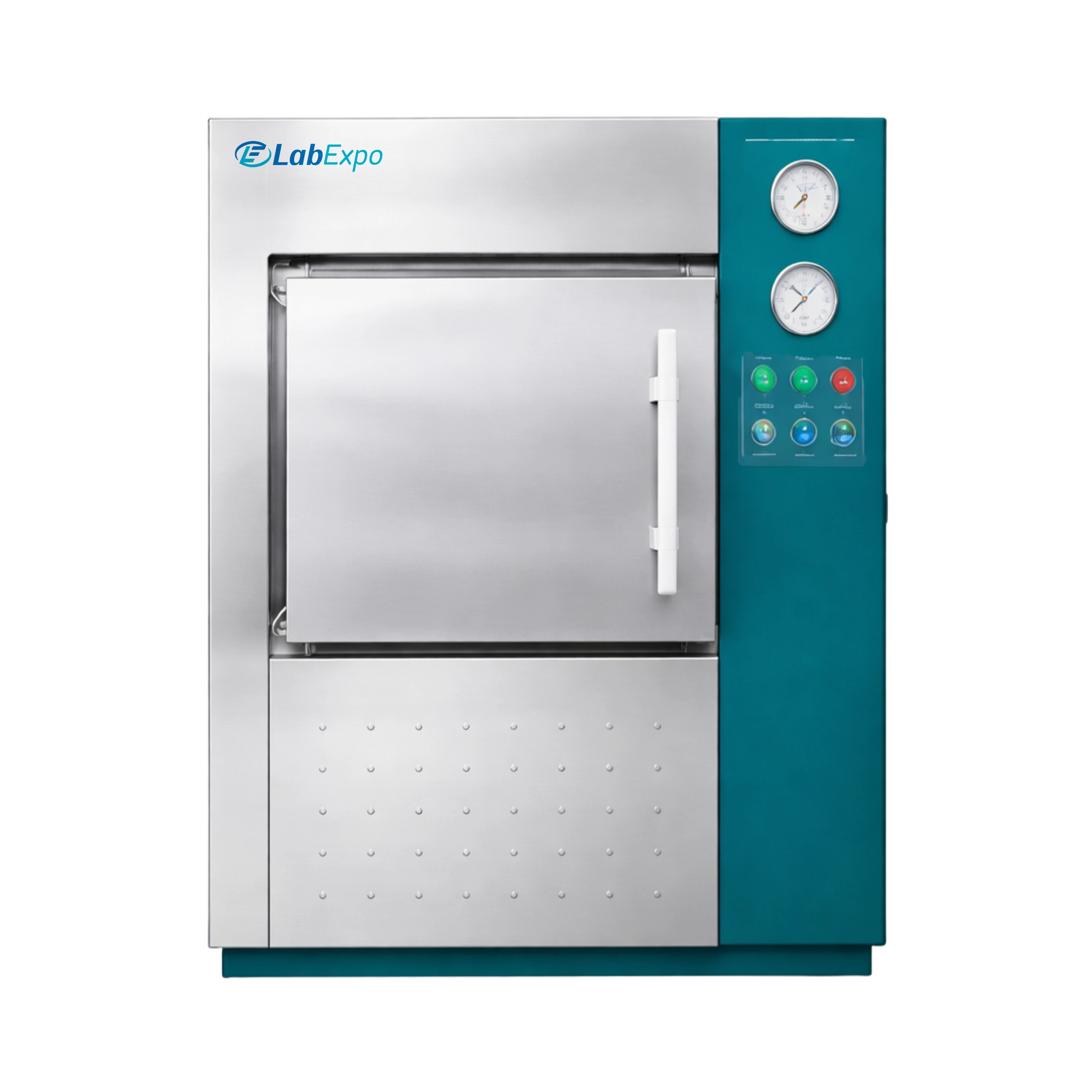

Horizontal Autoclave 26-HAC400

Horizontal Autoclave 26-HAC400

Horizontal Laboratory Autoclave is a 250 Liters double door microprocessor controlled automatic autoclave. It is equipped with motorized or sliding door with an effective sterilization temperature of 139 °C. With safety features like auto door lock against raised safety pressure and automatic shutoff preventing overload of current this autoclave is an ideal laboratory device.

$29,304.00 $ 24420

Specifications

Capacity 250 L
Sterilization Temperature 139 °C
Sterilization Pressure 0.25Mpa
Steam Pressure and the Consumption 0.4 - 0.6 Mpa / 15 kg
Water Source Pressure and the Consumption 0.2 - 0.3 Mpa / 150 kg
Compressed Air Pressure 0.6 - 0.8 Mpa
Power Supply 26 kw
Inner Chamber Dimension ( L × W × H ) 800 × 600 × 600 mm
Outer Dimension ( L × W × H ) 1100 × 1300 × 1700 mm
Net Weight 650 kg
Gross Weight 800 kg

Features

  • Digital LCD interface for real-time monitoring of operating status and parameters
  • Working pressure control up to 0.22 MPa for high-pressure steam sterilization =
  • Working temperature capability up to 139 C for high-temperature sterilization cycles
  • Interlocked door lock system preventing opening until chamber pressure drops to 0.027 MPa
  • Automatic power cut-off with alarm indication for low water level conditions
  • Motorized sliding door with pneumatic sealing to prevent sterile steam loss

Applications

FunctionImplementation
Media SterilizationCulture media preparation for aseptic techniques
Instrument SterilizationSurgical and laboratory instruments
Material ProcessingDressings and intravenous equipment
Component SterilizationRubber closures and glass equipment components
Aseptic SupportHeat- and pressure-resistant items used in sterile workflows

Catalog

Horizontal Autoclave 26-HAC400 Catalog

Horizontal Autoclave 26-HAC400

Related Models Of Horizontal Autoclave

Lab Expo Horizontal Autoclaves are applied in high-capacity sterilization workflows where large instrument loads require uniform steam distribution and controlled cycle execution. Each horizontal steam sterilizer operates using pressurized steam and is constructed from stainless steel to support continuous operation and corrosion resistance. Digital control systems regulate temperature, pressure, and cycle parameters, while integrated safety mechanisms support automated operation and controlled processing of large-volume loads.
