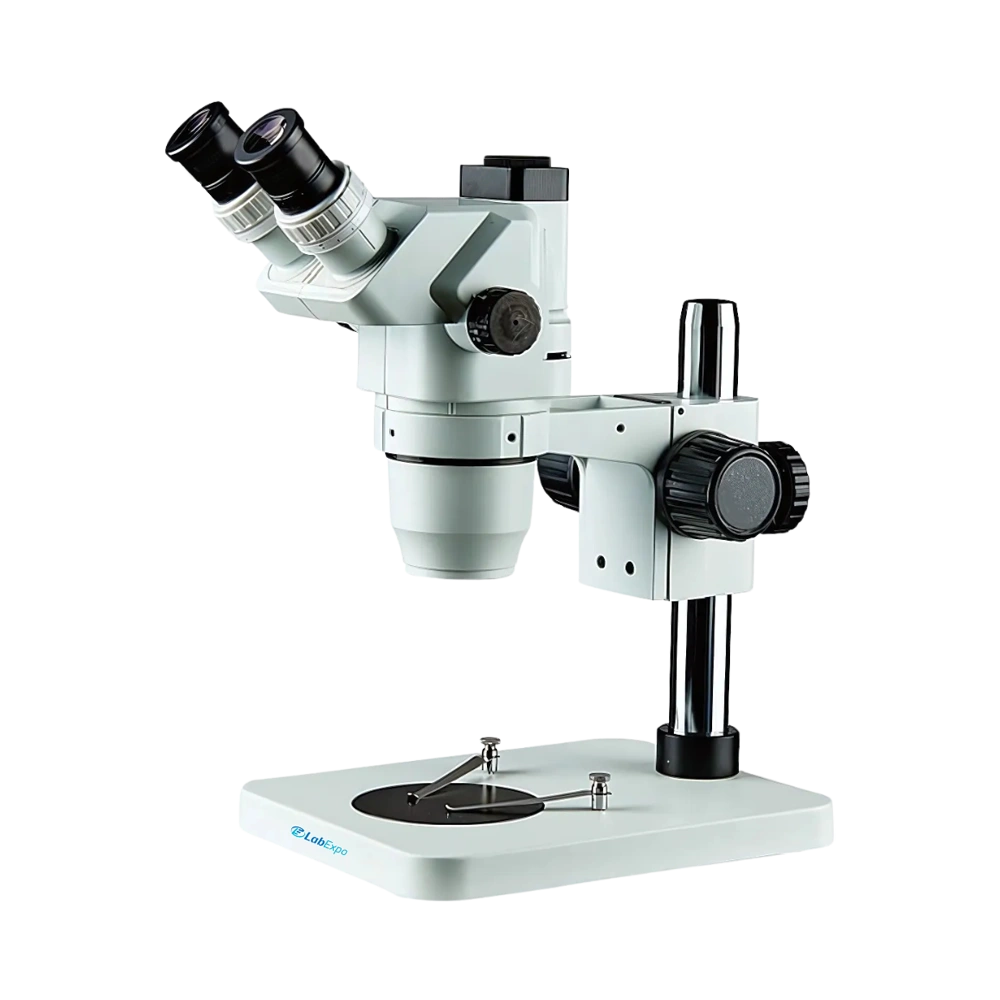

Lab Expo Stereo Microscope LE-SM103 delivers a high-performance imaging for precise visual inspection. Equipped with a fully coated optical system for enhanced clarity. Integrated zoom optics maintain focus across the entire range. Incorporated magnification flexibility from 3.35X to 270X. Our Stereo Microscope is ideal for both industrial as well as biological research applications.
FunctionImplementationQuality control inspection10X/22mm eyepiece enables detailed visual assessmentBiological research labs6.7X to 45X magnification supports specimen analysisIndustrial manufacturing3.35 to 270X with optional lens facilitates precision measurementClinical diagnostics±5 diopters adjustment allows customized focus settingsEducational institutionsTrinocular body rotated 360° enables shared viewing and documentation
| Head | Trinocular |
| Magnification | 6.7X to 45X, 3.35 to 270X with optional lens |
| Working Distance | 105mm, 26 to 287mm with optional lens |
| Eyepiece | 10X/22mm |
| Zoom Range | 0.67X to 4.5X |
| Zoom Ratio | 6.7:1 |
| Objective | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X |
| Diopter Adjustment | ±5 diopters |
| Interpupillary Distance | 54 to 75mm |
| Trinocular Body | Can be Rotated a Full 360° and Locked in Any Position Desired |
| Focusing Mount | A1 Focusing Bracket, Handwheel's Tightness is Adjustable, Lifting Range 50mm |
| Base | CB1 Base |
| Illumination | Fluorescent Lamp, LED Ring Light, for More Option |
| Trinocular Interface | Fit with Three-Eye Pole and CTV, It Can Be Connected with Ordinary Camera, Digital Camera, Industrial Camera and CCD |
