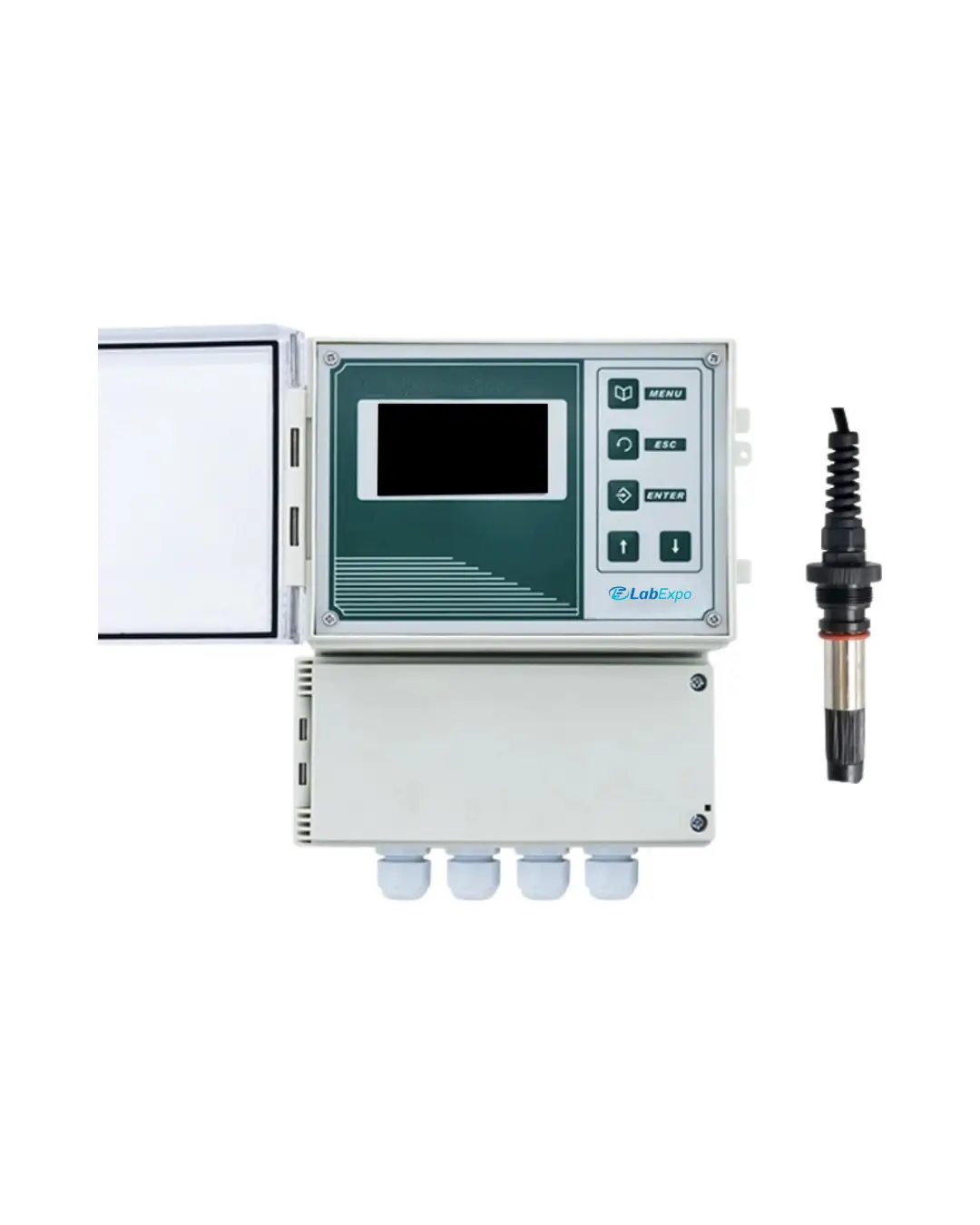

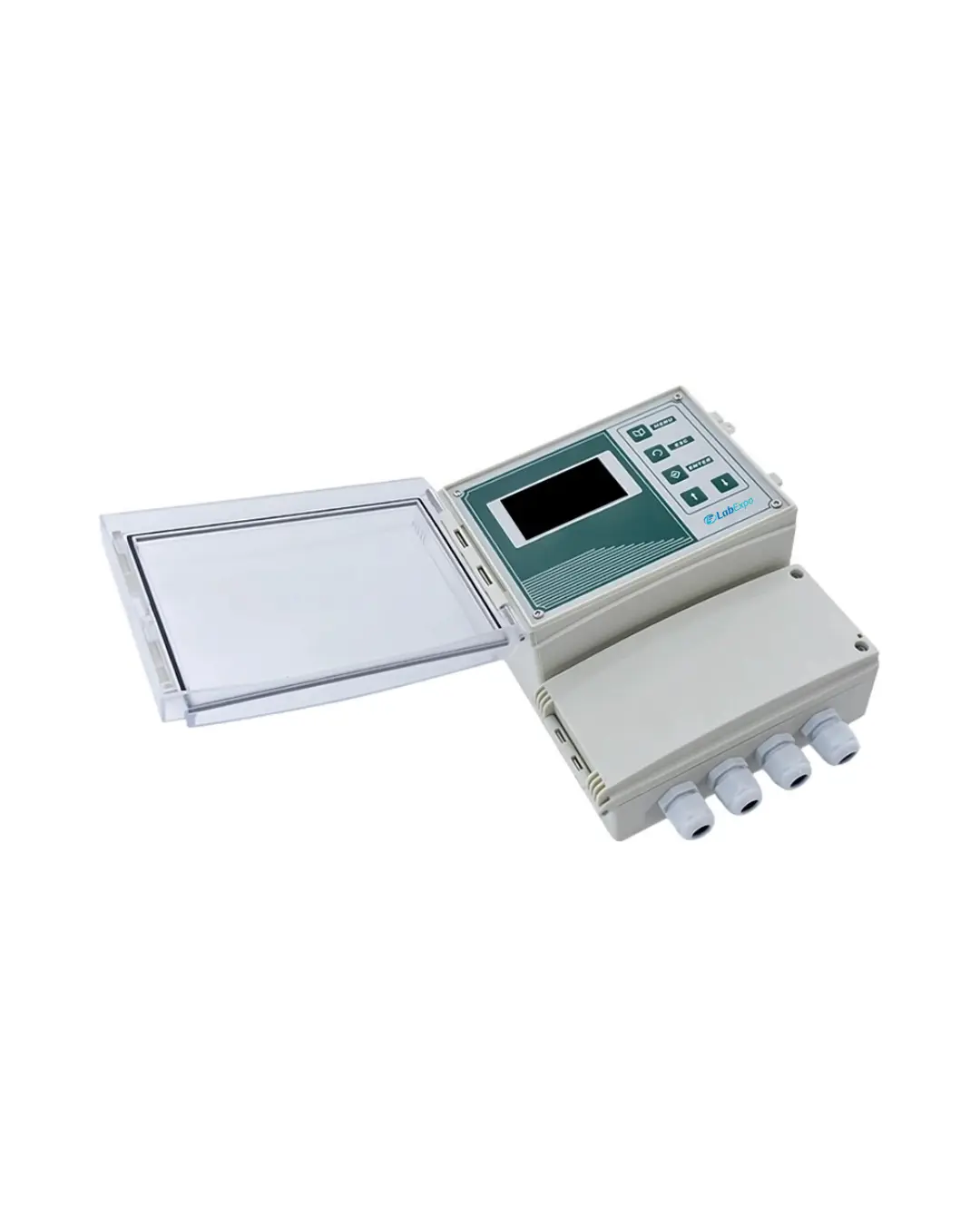

Lab Expo Chlorine Meter LE-CM101 offers a chlorine measuring range from 0 to 20.00 mg/L, enabling accurate monitoring. It offers a multi-channel meter that can be combined with other parameter measurements. Built with a moisture-proof enclosure to provide reliable performance in humid or wet environments. Our Chlorine Meter is an ideal choice for comprehensive water quality monitoring.
$3,449.00 $ 2874
| CL Measuring Range | 0 to 20.00 mg/L |
| HOCL Measuring Range | 0 to 10.00 mg/L |
| pH Range | 0 to 14 |
| Temperature range | 0 to 60°C |
| Resolution | 0.001mg/L, 0.01mg/L, 0.01pH, 0.1°C |
| Accuracy | Superior to ±1% |
| Working Temperature | 0 to 60°C |
| Electrode cable | 5M |
| Installation | Wall mounting |
| Protection grade | IP65 |
| Power Supply | AC220V ± 10%, 50/60 Hz or DC24V |
| Dimension | 218 × 183 × 126 mm |
| Weight | 3 kg |
Function Implementation Water treatment plants 0 to 20.00 mg/L CL measuring range supports accurate chlorine monitoring Laboratory quality control IP65 protection enables reliable performance in humid environments Field sampling sites AC220V ± 10% or DC24V power supply allows flexible installation Process control systems Wall mounting design facilitates integration into monitoring setups Environmental compliance testing 5M electrode cable enables remote sampling access
Flow cell
1: Where can Chlorine Meter LE-CM101 be used?
Our Chlorine Meter is ideal for water treatment plants, laboratories, and industrial facilities requiring precise chlorine and pH monitoring.
2: Can it measure pH values as well?
Yes, it supports pH measurement from 0 to 14, making it suitable for comprehensive water quality analysis.
3: What kind of screen does the device use?
It features an LCD screen for clear, real-time display of measurements.
4: What are the available communication and interface option?
Our device is equipped with a communication interface for data connectivity and integration with external systems.
5: What is the resolution and accuracy of the readings?
The optimal operating temperature is 25°C, with an acceptable range from 10°C to 30°C and humidity ? 85% RH.
6: What is a Chlorine Meter used for?
A Chlorine Meter is used to continuously measure free or total chlorine levels in water to ensure safe and accurate disinfection in various applications.
7: What type of display does the Chlorine Meter use?
The Chlorine Meter features a high-contrast digital display that provides clear, real-time readings of multiple parameters simultaneously.
8: Can the unit be installed both indoors and outdoors?
Yes, the Chlorine Meter is designed for both indoor and outdoor installations, thanks to its durable and weather-resistant housing.
9: What is the purpose of the integrated data acquisition software?
The software enables real-time data monitoring, logging, and analysis of chlorine levels and other measured parameters for better process control.
10: In which applications is this Chlorine Meter commonly used?
Our Chlorine Meter is widely used in swimming pools, hospital wastewater monitoring, sewage treatment plants, and drinking water facilities for continuous chlorine level monitoring and control.
Lab Expo Chlorine Meter units are used for measurement of free and total chlorine levels in water across monitoring and treatment workflows. The range includes systems supporting continuous measurement with digital parameter display and data acquisition functions. Units integrate sensing elements, signal processing, and installation-ready configurations, suitable for water treatment plants, swimming pools, hospital wastewater, and drinking water monitoring applications.
