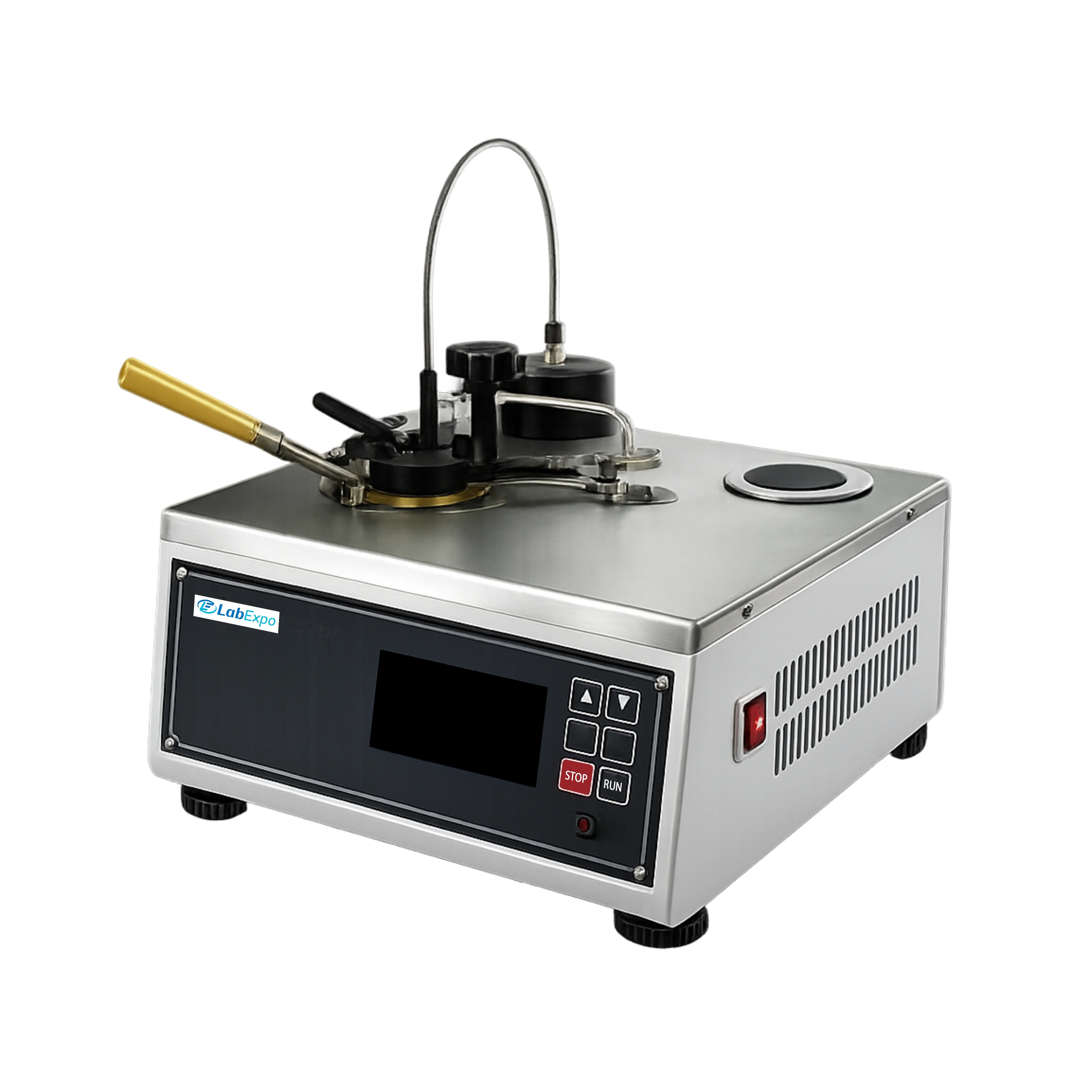

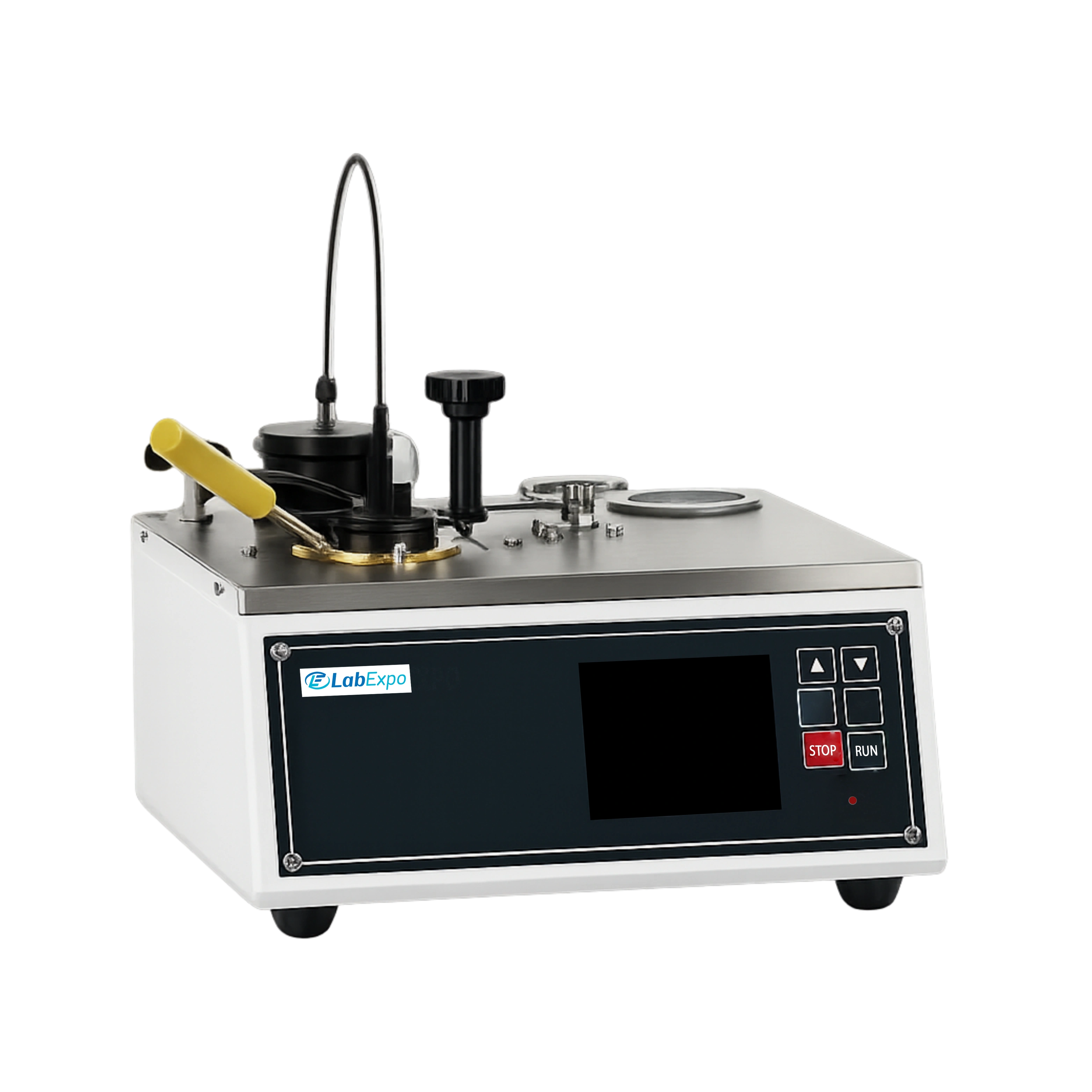

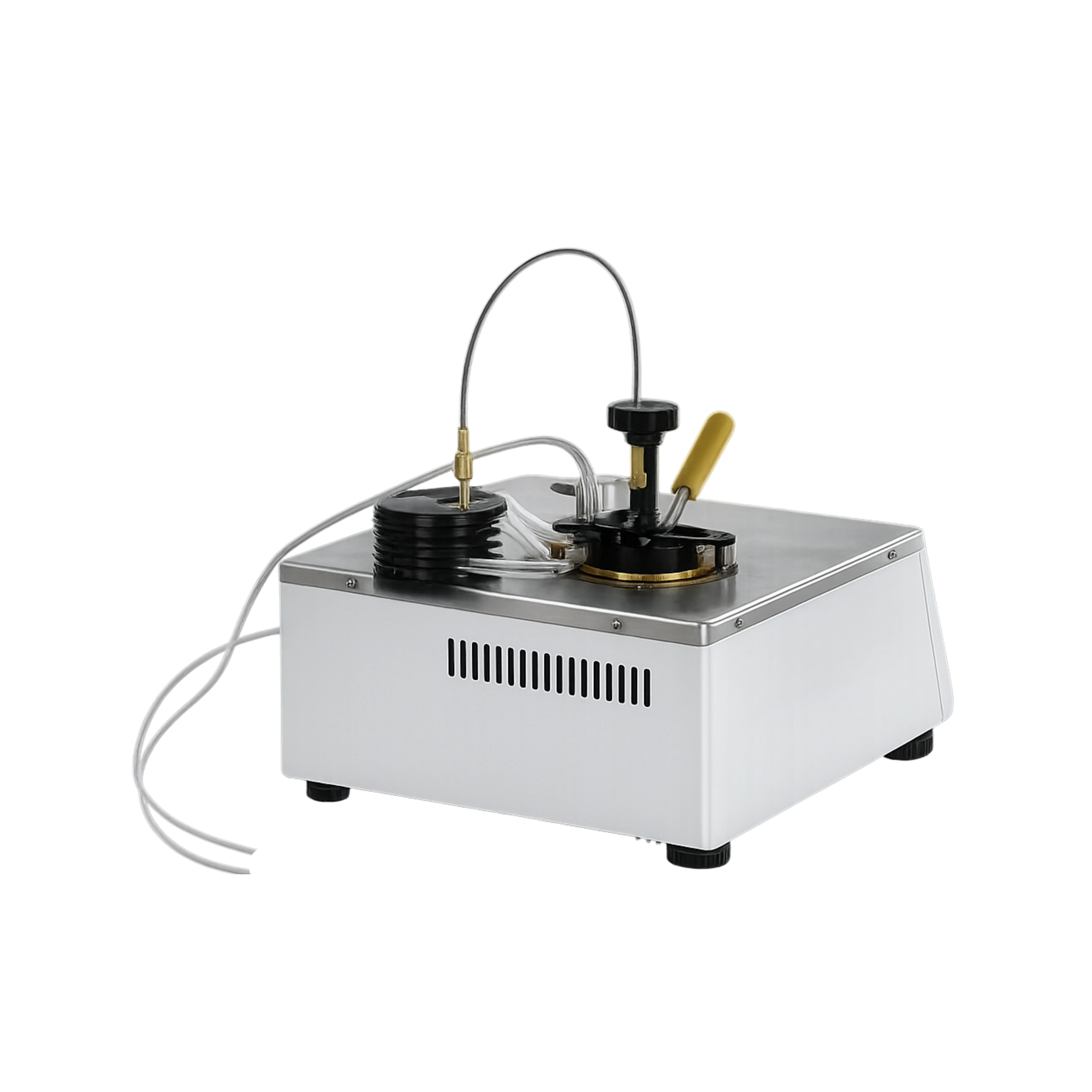

PMCC Flash Point Tester 52-CFP100 offers a wide temperature range of 5°C to 370°C with scale divisions of 0.5°C, 1°C, and 2°C. Featuring an adjustable stirring speed, it ensures uniform temperature distribution throughout the fluid. It includes a 70 ml capacity oil cup to hold sufficient sample volume. Equipped with a 0.8 mm aperture ignition device, it ensures precise flash point determination. This tester uses coal gas as ignition source to deliver precise and reliable results.
$1,570.00
$1,308.00
Specifications
| Temperature Range | 5 °C to 110 °C, each scale division is 0.5 °C 20 °C to 150 °C, each scale division is 1.0 °C 90 °C to 370 °C, each scale division is 2 °C |
| Aperture of Ignition Device | 0.8 mm |
| Standard Oil Cup-Inner Diameter | 50.7 to 50.8 mm |
| Standard Oil Cup- Depth | 55.7 to 56.0 mm |
| Standard Oil Cup- Depth of Marked Line on the Oil Cup | 33.9 to 34.3 mm |
| Standard Oil Cup-Oil Sample Cubage | About 70 ml |
| Stirring Speed | 90 to 120 rpm for procedure A; 250 ± 10 rpm for procedure B |
| Stirring Blade (L×W) | 8 × 40 mm |
| Sample Temperature Rising Rate | 1 to 12 °C per minute |
| Ambient Temperature | ≤ 35 °C |
| Relative Humidity | ≤ 85 % |
| Heating Power | 0 to 600 W |
| Total Power Consumption | 600 W |
| Heating Power | 0 to 600 W |
| Total Power Consumption | 600 W |
| Power Supply | AC 220 V ± 10 %, 50 Hz |
| Power Supply | AC 220 V ± 10 %, 50 Hz |
| Dimension (L×W×H) | 480×420×440 mm |
| Net Weight | 7 kg |
| Gross Weight | 13 kg |
Features
Applications
Our Flash Point Tester are used for determination of the flash point of a sample in petroleum, oil, chemical and pharmaceutical industries.
Catalog
Lab Expo Closed Cup Flash Point Testers are engineered for safety and quality control, determining the flash point of flammable liquids. They have automated gas or electric ignition and flash point detection for accuracy. These testers feature over-temperature protection and programmable heating. Our Closed Cup Flash Point Testers are compact, efficient, with rapid heating and a wide temperature range.
