Automatic PMCC Flash Point Tester  52-CFP101

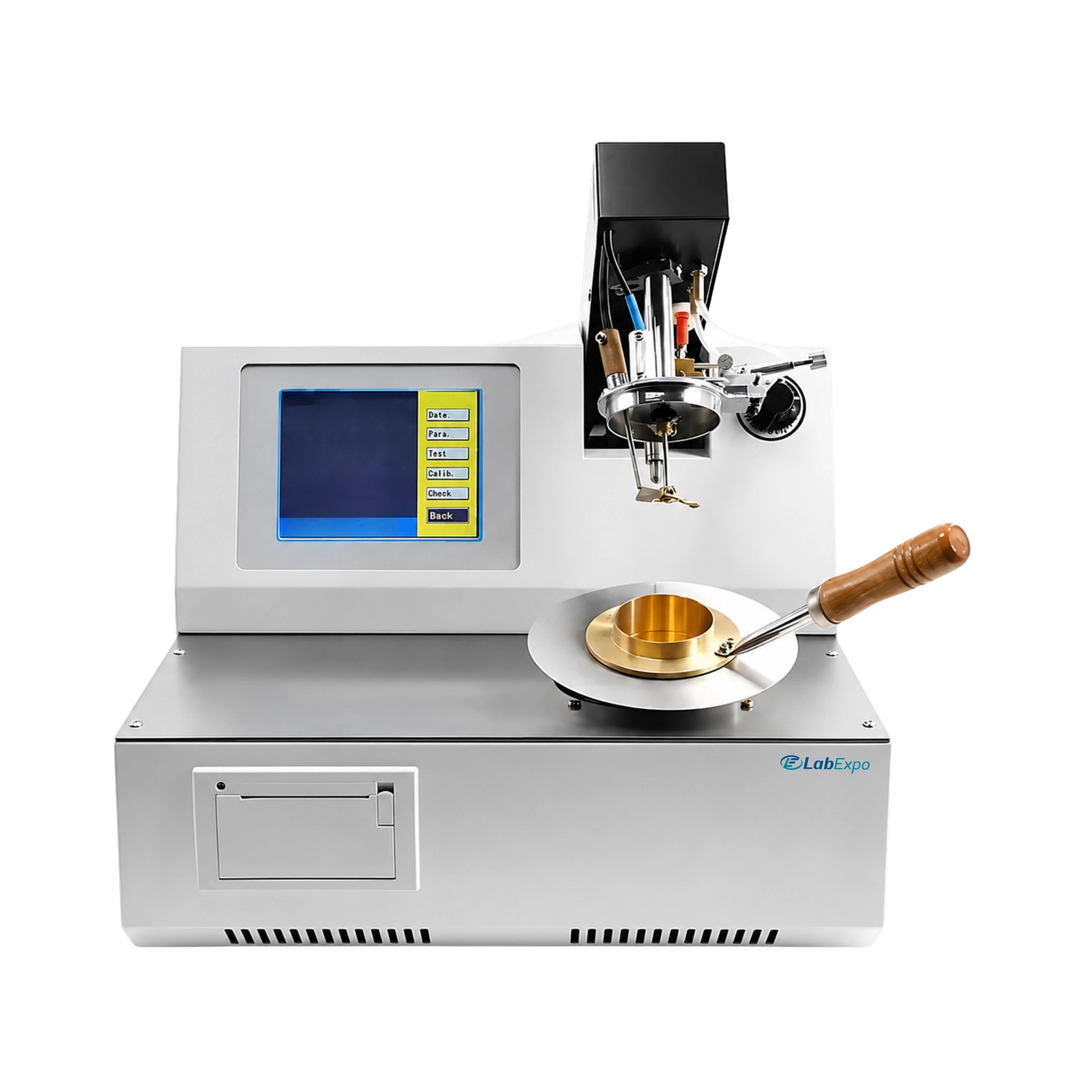

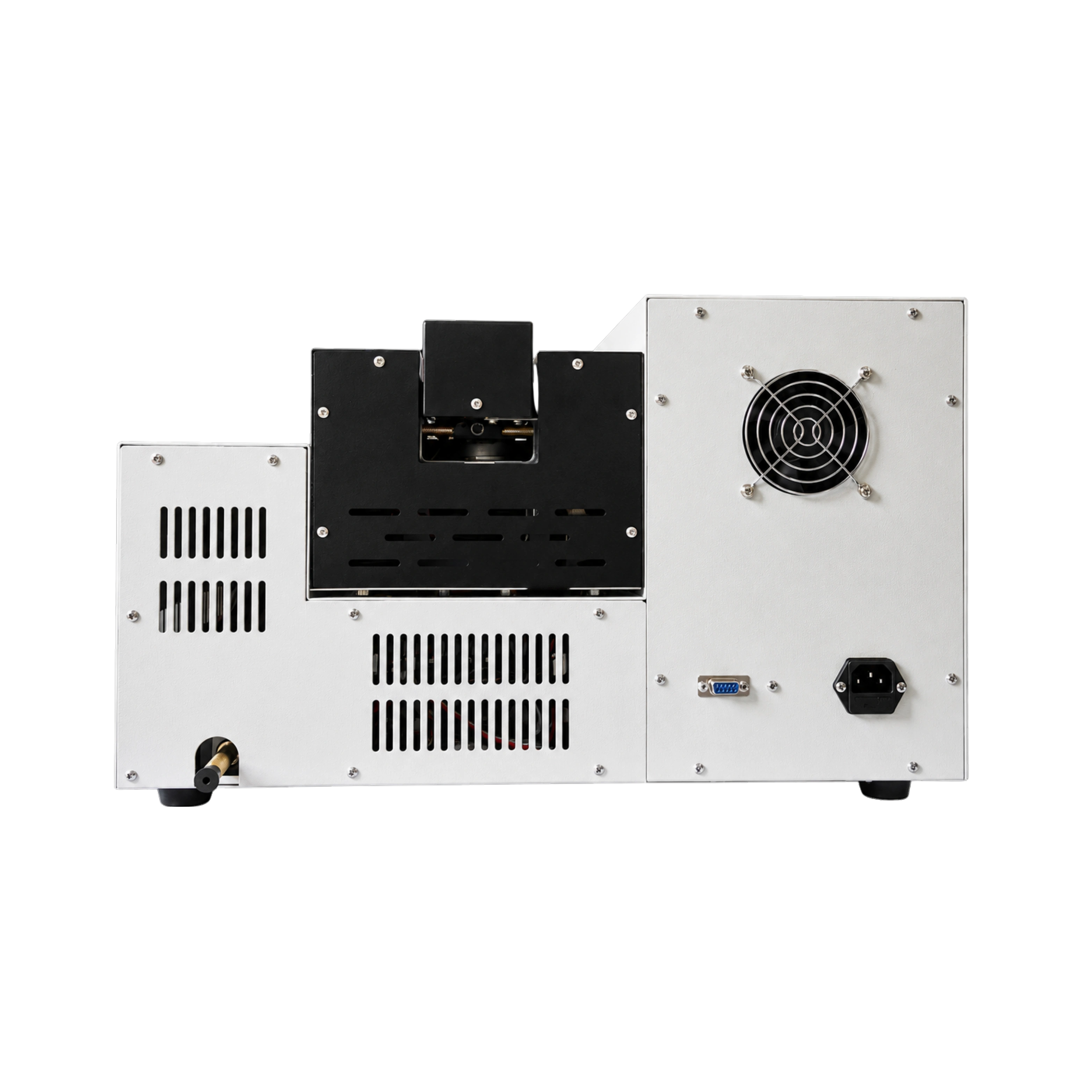

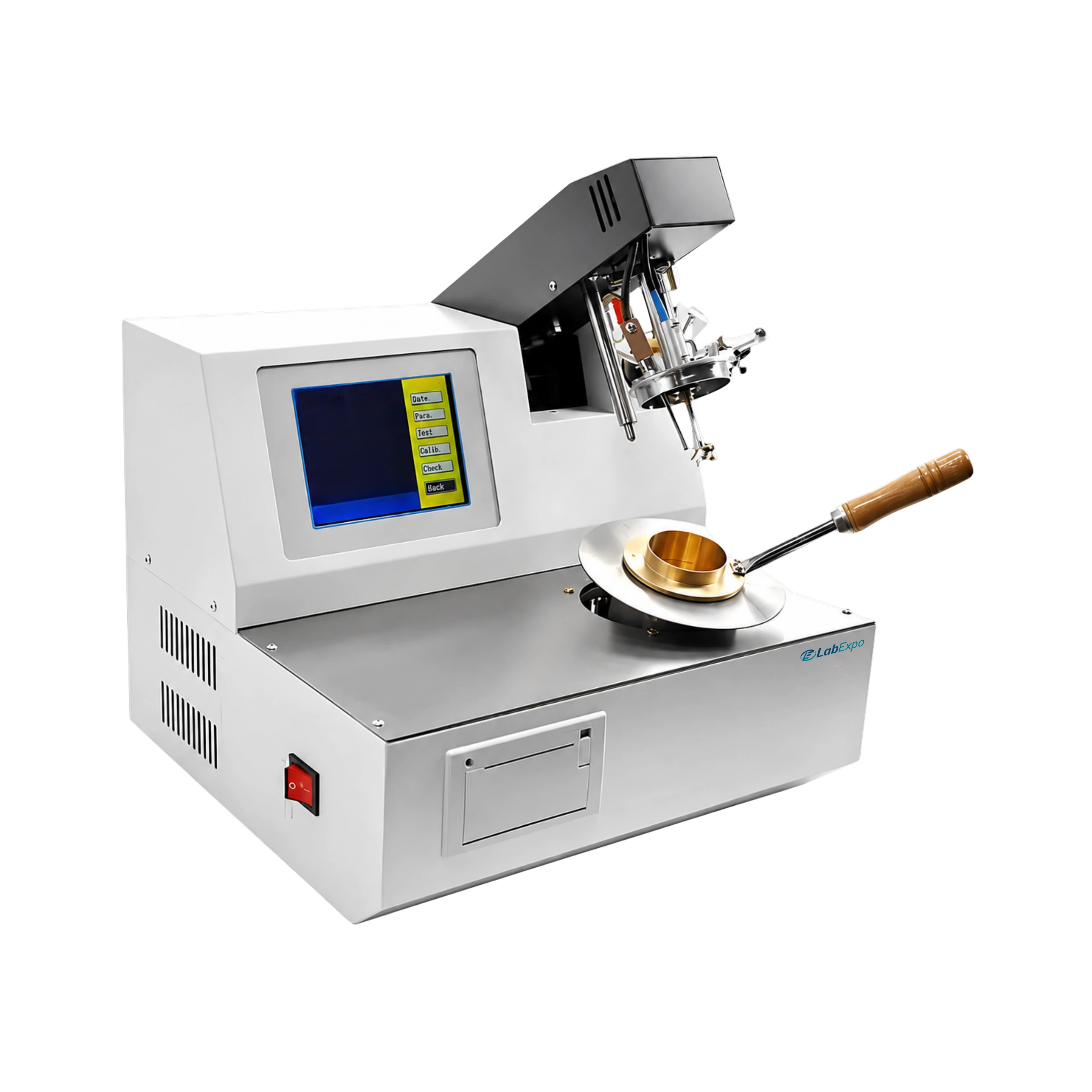

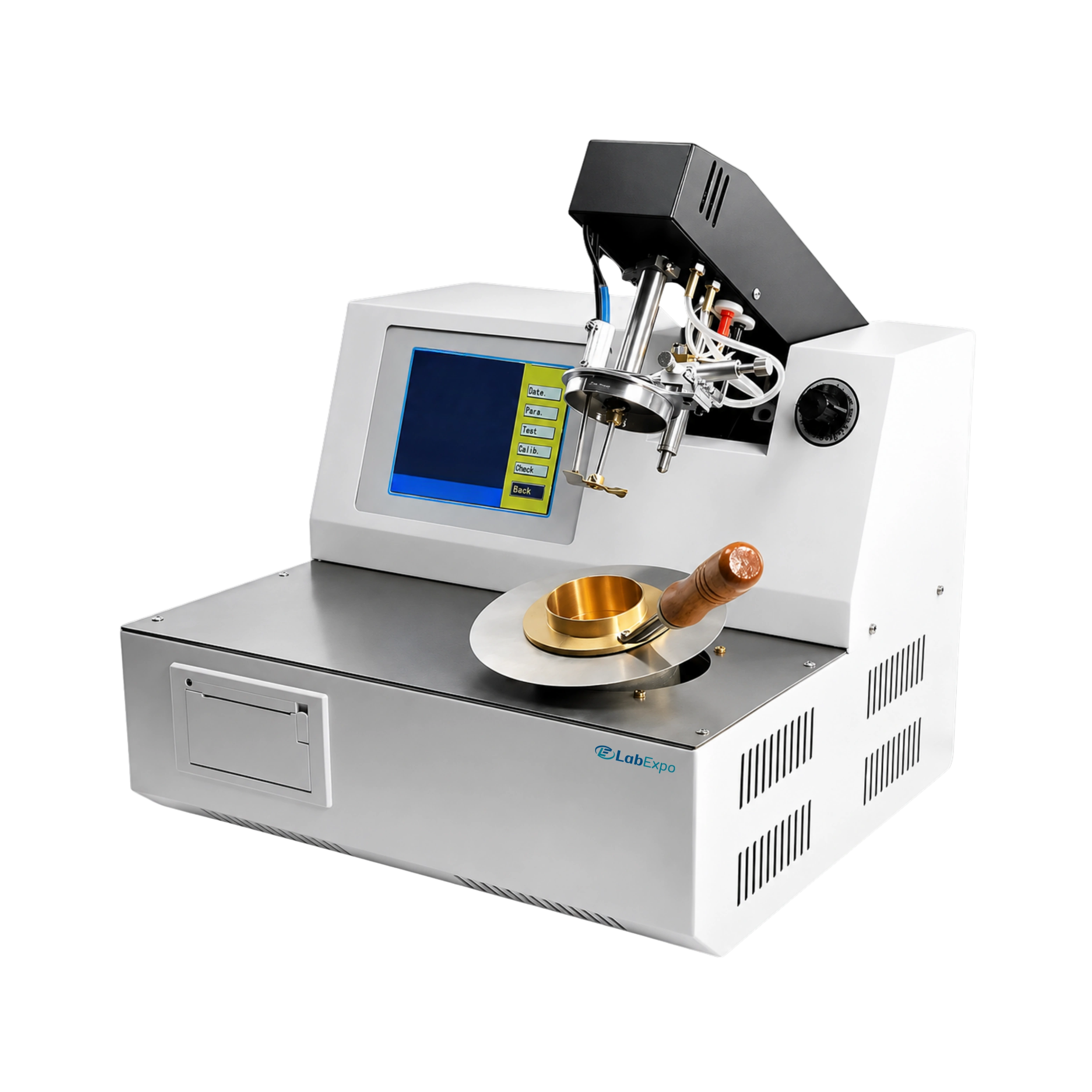

Automatic PMCC Flash Point Tester 52-CFP101

Price: $8136

52-CFP101 is an automated closed cup flash point tester with automatic control measurement procedures and test data. It is designed as per ASTM D93 “Test Methods for Flash Point of Petroleum Products (Closed Cup Methods)”.

Ambient temperature 10 °C ~ 40 °C
Relative humidity ≤ 80 %
Measurement Range Ambient Temperature ~ 250 °C
Flash Point Lower than 104 °C , error is 2 °C; Higher than 104 °C , error is 6 °C
Resolution 0.1 °C
Precision 0.005
Gas Flame 3 ~ 4 mm
Dimension 550 × 470 × 500 mm
Total Power Consumption 350 W
Power supply AC 220 V ± 10 %, 50 Hz
  • Revised value calculation
    Measurement procedures and test data has programmed function
    Gas flame ignition mode
    Atmospheric pressure is modified automatically along with temperature control
    Measurement procedures and test data has automatic function
    Results are analyzed and saved automatically
  • It is suitable to determine closed cup flash point of petroleum products having a flash point higher than 40 °C

Customer Reviews

Submit Your Review

Similar Products

PMCC Flash Point Tester

  • Temperature Range: 5 °C to 110 °C, each scale division is 0.5 °C
    20 °C to 150 °C, each scale division is 1.0 °C
    90 °C to 370 °C, each scale division is 2 °C
  • Aperture of Ignition Device: 0.8 mm
  • Standard Oil Cup-Inner Diameter: 50.7 to 50.8 mm
  • Standard Oil Cup- Depth: 55.7 to 56.0 mm

Semi-auto PMCC Flash Point Tester 52-CFP102

  • Ambient temperature: 10 °C ~ 30 °C
  • Relative humidity: < 80 %
  • Stirring speed: 105 rpm
  • Measurement Range: Ambient temperature ~ 250 °C

Automatic PMCC Flash Point Tester 52-CFP103

  • Ambient temperature: 10 °C ~ 40 ℃
  • Relative humidity: ≤ 80 %
  • Ignition Mode: electron igniter / gas flame
  • Temperature range: Room Temperature ~ 300 ℃
