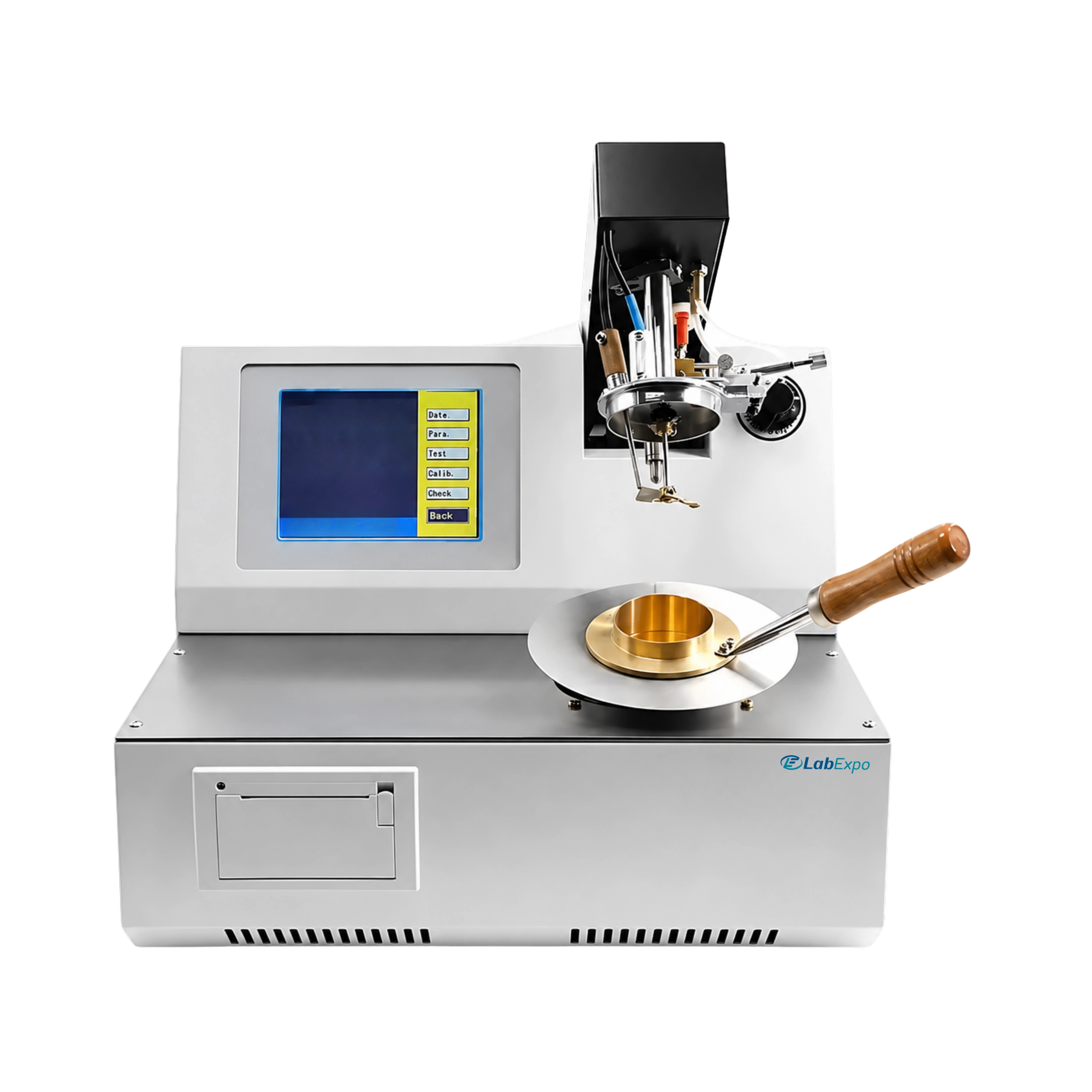

Lab Expo Semi-auto PMCC Flash Point Tester 52-CFP102 is equipped with advanced software. It is suitable for flammability applications on both biodiesel and biodiesel-blended fuels along with distillate fuels like diesel, heating oil and kerosene. It is designed as per ASTM D93 “Test Methods for Flash Point of Petroleum Products (Closed Cup Methods)”.
$9,720.00 $ 8100
| Ambient temperature | 10 °C ~ 30 °C |
| Relative humidity | < 80 % |
| Stirring speed | 105 rpm |
| Measurement Range | Ambient temperature ~ 250 °C |
| Flash Point | Lower than 104 °C : 1 °C; higher than 104 °C : 2 °C |
| Resolution | 0.1 °C |
| Repeatability | Lower than 104 °C : error is 2 °C; higher than 104 °C : error is 4 °C |
| Accuracy | 0.002 |
| Gas Flame | 4 mm |
| Dimension | 360 × 110 × 300 mm |
| Total Power Consumption | 300 W |
| Power supply | AC 220 V ± 10 %, 50 Hz |
| Net Weight | 10 kg |
Function Implementation Quality control labs 0.1 °C resolution enables precise flash point determination Petroleum testing facilities Ambient to 250 °C measurement range supports diesel and kerosene analysis Biodiesel blending operations 105 rpm stirring speed ensures uniform sample heating during test cycles Clinical fuel screening Repeatability error of 2 °C below 104 °C allows consistent quality assessment Industrial safety compliance Flash point accuracy of 1 °C below 104 °C meets ASTM D93 requirements
Lab Expo Closed Cup Flash Point Tester units are used for determination of flash point of flammable liquids under controlled enclosed conditions in laboratory workflows. The range supports testing from approximately 5 °C to 400 °C with defined resolution and repeatability. Systems integrate controlled heating, automated ignition, and sample stirring, suitable for petroleum testing, chemical analysis, and safety compliance applications.
