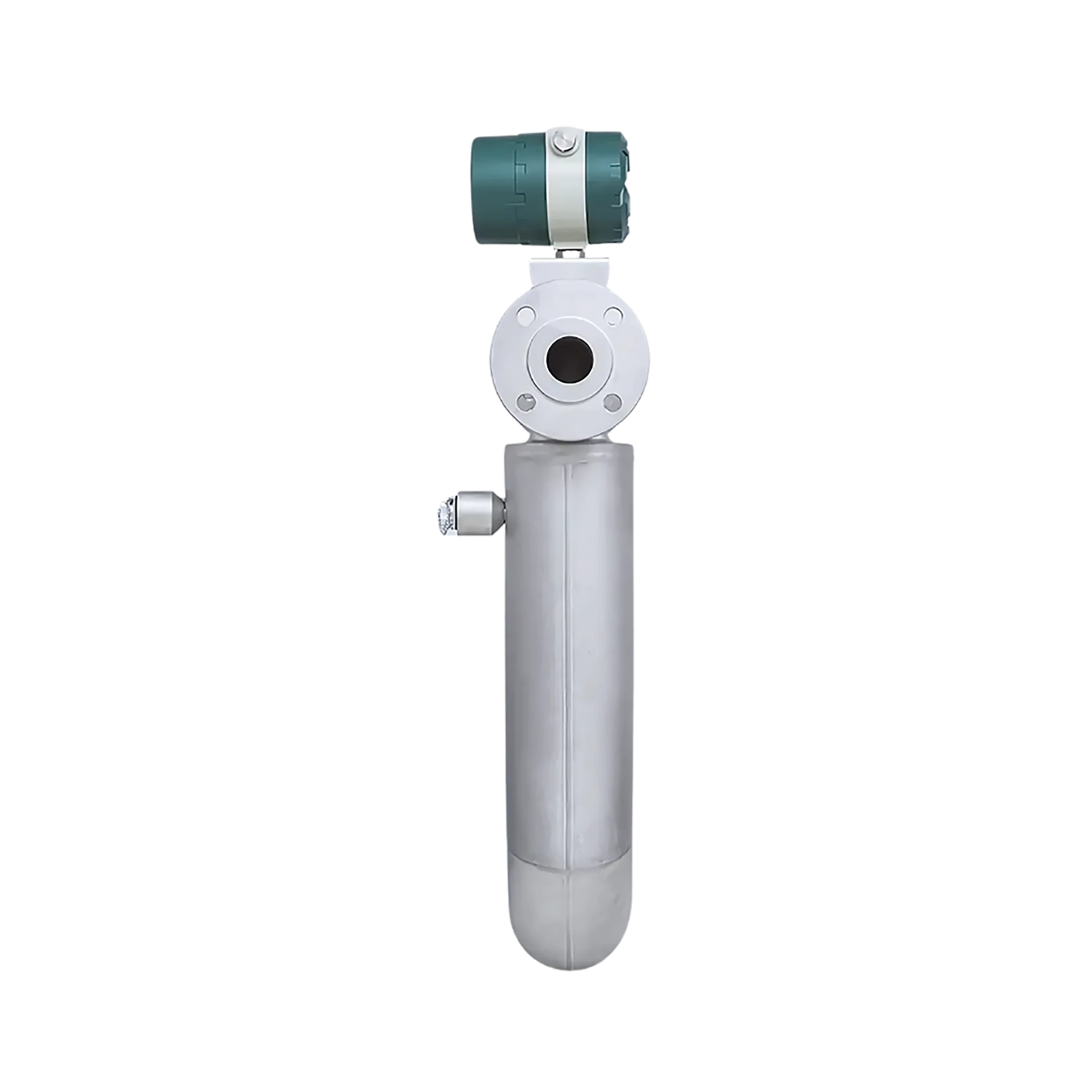

Coriolis Mass Flowmeter 20CMF-100
Product1

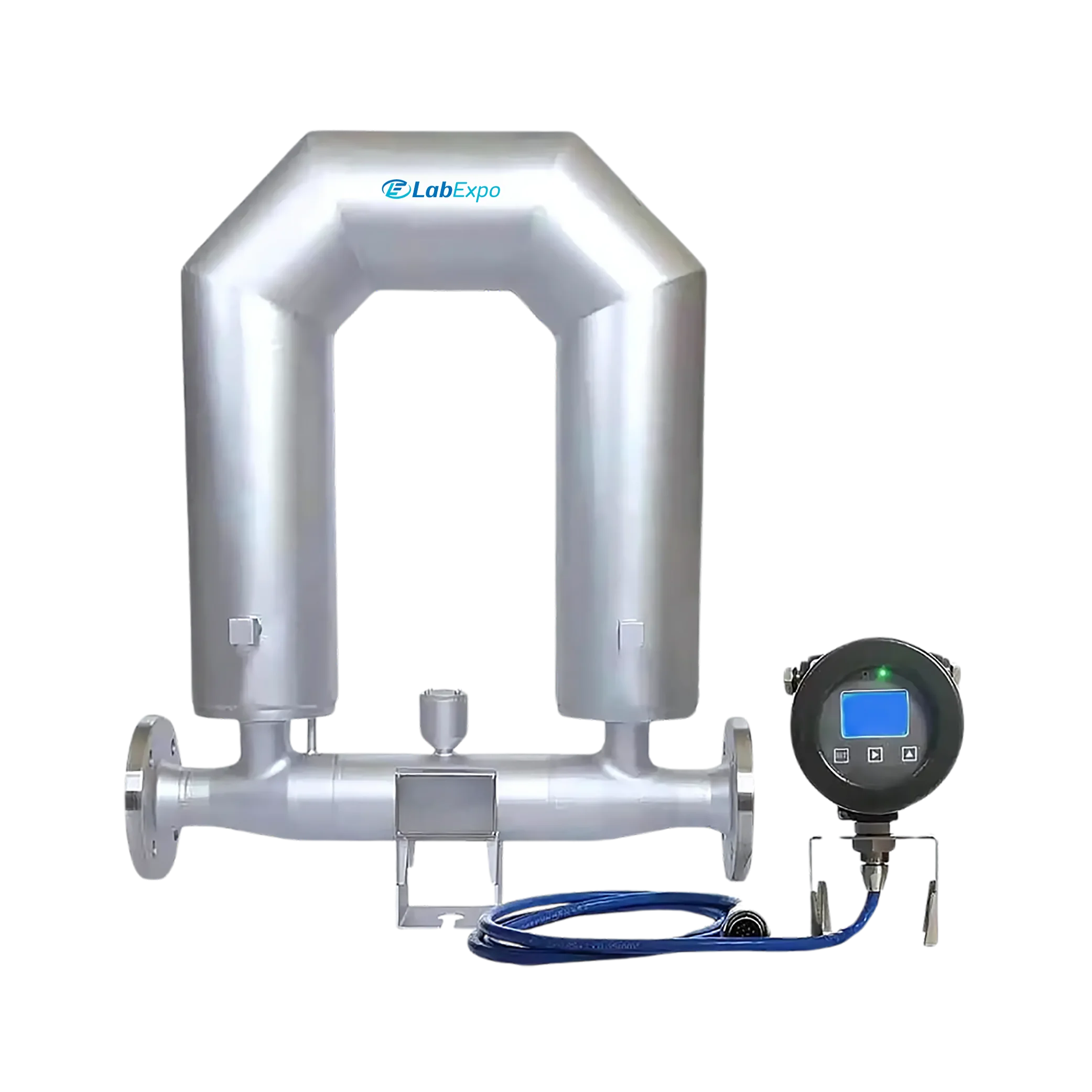

Product2

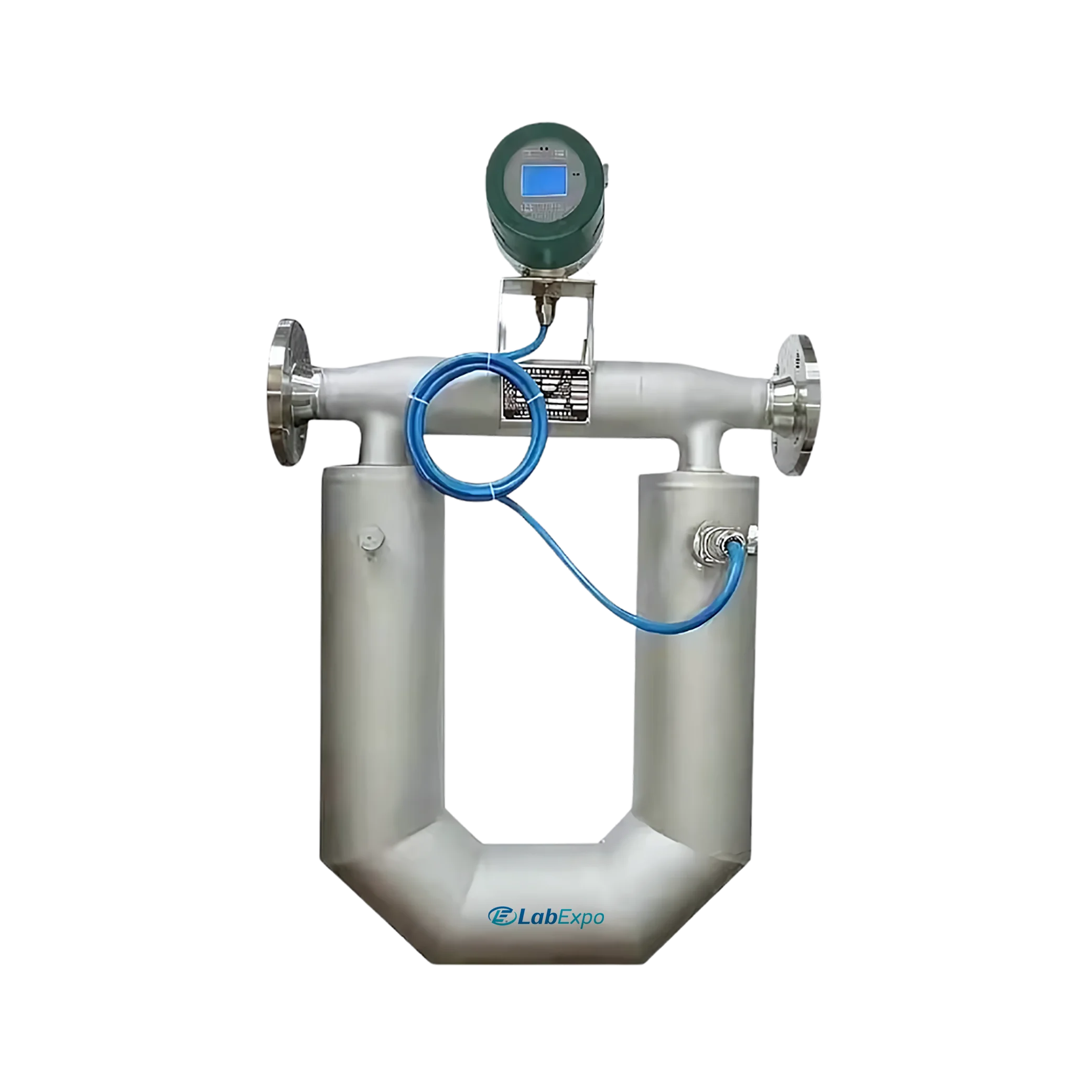

Product3

Coriolis Mass Flowmeter 20CMF-100

Lab Expo Coriolis Mass Flowmeter 20CMF-100 ensures precision flow with a 16MPa rated pressure, delivering top accuracy for liquids and slurries. Our system is designed to function reliably within a standard operating temperature range of -50 to 200°C. It guarantees to minimize process complexities and mounting challenges for easy installation. Its unique design guarantees stability, reliability, and minimal external influence across the widest flow range.

$6,648.00 $ 5540

Coriolis Mass Flowmeter 20CMF-100 - Specifications

Nominal size 25
Flow rate 0 to 10200 to13500 kg/hr
Stability zero kg/h 0.2% to 2.025
0.15% to 1.35
0.1% to 1.35
Rated Pressure 16MPa
Accuracy ±0.1 to 0.5%
Repeatability ±0.1 to 0.25%
Density measurement range 0.5 to 2g/cm3
Temperature range -50 to 200℃(standard), -200 to 300℃
Power supply 24VDC or 220VAC
Product dimension 430x650x875mm
Packaging dimension 700x650x380mm
Net weight 21 Kg
Gross Weight 35 Kg

Coriolis Mass Flowmeter 20CMF-100 - Key Features

  • Temperature operating range -50 to 200C standard
  • Flow rate capacity up to 13500 kg/hr
  • Accuracy specification ±0.1 to 0.5% of reading
  • Repeatability performance ±0.1 to 0.25% FS
  • Rated pressure rating at 16MPa maximum

Coriolis Mass Flowmeter 20CMF-100 - Applications

FunctionImplementation
Quality control labs±0.1 to 0.5% accuracy supports precise flow measurement
Chemical processing plants16MPa rated pressure enables handling of high-pressure fluids
Food and beverage production0.5 to 2g/cm3 density range allows monitoring of viscous liquids
Pharmaceutical manufacturing-50 to 200℃ temperature range ensures operation in varied environments
Industrial process monitoring0 to 13500 kg/hr flow rate accommodates high-volume throughput

Coriolis Mass Flowmeter 20CMF-100 - Optional Accessories

Liquid Flowrate (32mm) with Transmitter
Liquid Flowrate (20mm) With Transmitter

Coriolis Mass Flowmeter 20CMF-100 - Catalog

Coriolis Mass Flowmeter 20CMF-100 Catalog

Coriolis Mass Flowmeter

Lab Expo Coriolis Mass Flowmeter units are configured for direct mass flow measurement in process lines requiring precise flow control and monitoring. The range includes nominal size 25 units supporting flow rates from 0 up to 13500 kg/hr with zero stability between 0.2% and 2.025%. Systems utilize Coriolis-based sensing for consistent mass flow and density measurement, suitable for chemical processing, fluid transfer operations, and applications requiring stable low-flow accuracy.
