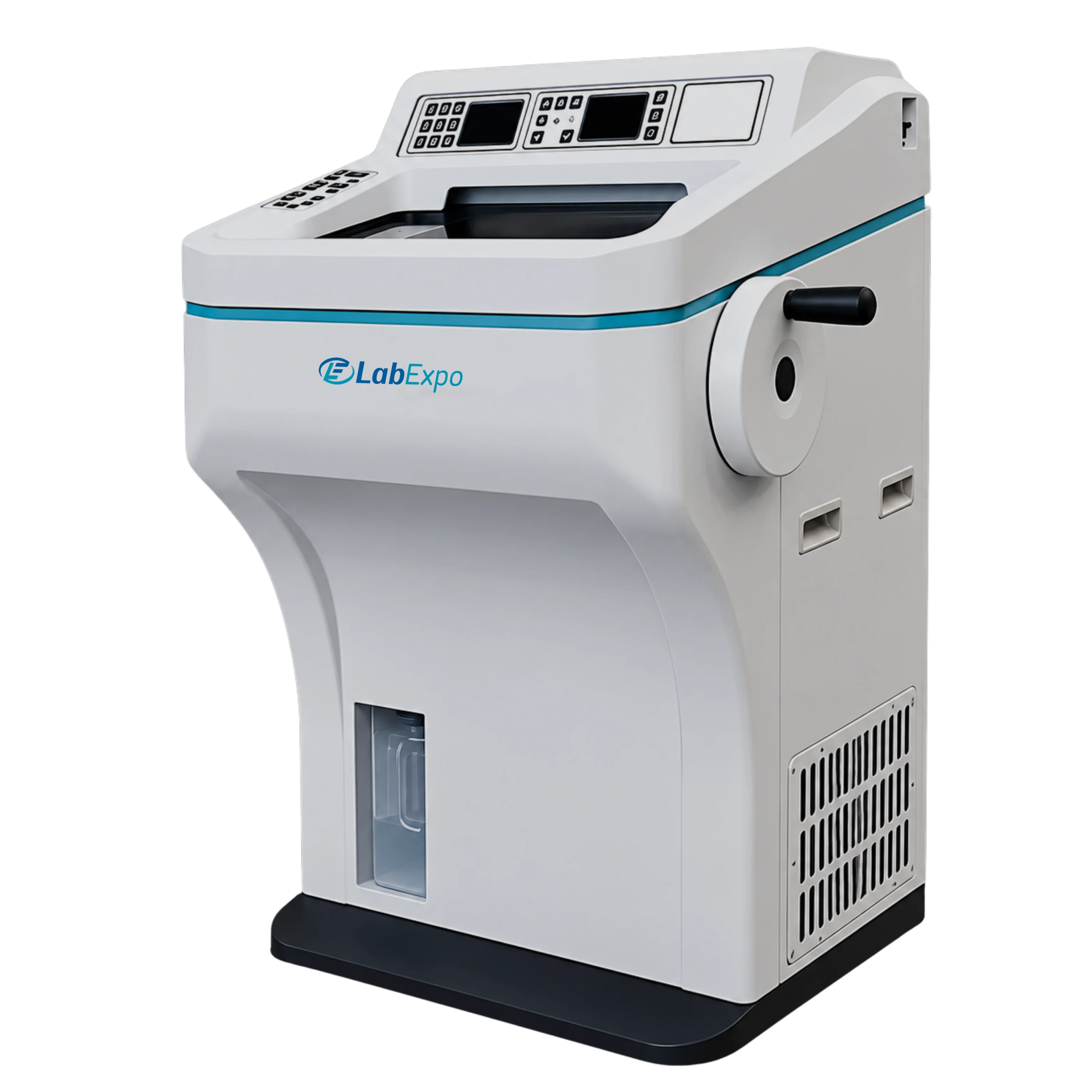

Cryostat Microtome 23-LCM100

Name: Cryostat Microtome 23-LCM100
Brand: Labexpo
SKU: 23-LCM100
Rating: 4.6 (685 reviews)

Lab Expo Cryostat Microtome 23-LCM100 is a sophisticated piece of equipment that seamlessly integrates freezing technology and microtome tissue sectioning. Creates thin slices of frozen specimens within a range of 1µm to 100µm. The freezing chamber maintains temperatures of -10°C to -40°C for accurate sectioning. Designed with a user-friendly handwheel lock system, and an anti-fog window to enhance usability.

$21,312.00 $ 17760

Cryostat Microtome 23-LCM100 - Specifications

Section thickness setting range	1 to 100 µm:1 μm to 20 μm, in 1 μm increments;20 μm to 50 μm, in 2 μm increments;50 μm to 100 μm, in 5 μm increments
Trimming thickness range	10 to 400 µm:10 μm to 50 μm, in 5 μm increments;50 μm to 100 μm, in 10 μm increments;100 μm to 400 μm, in 50 μm increments
Freezing chamber temperature range	-10°C to -40°C
Freezing shelf minimum temperature	-45°C
Peltier element minimum temperature	-60°C
Peltier element cooling spots	2
Chuck holder minimum temperature	-50°C
Chuck holder cutting angle	12°
Specimen stroke (Vertical × Horizontal)	70 × 20 mm
Maximum specimen size	50 × 80 mm
Rough feeding speed	0.9 mm/s;0.3 mm/s
Retraction range	0 μm to 80 μm; Adjustable in 5 μm increment
Freezing system noise	40 dB
Compressor	Dual
Shell	Injection moulding shell
Handwheel type	Handwheel with lock system
Window	Anti-fog glass window
Blade holder	Auto pump blade device
Power	800 W
Power supply	AC 220/110 V ± 10%, 50/60 Hz
Dimension (W×D×H)	660×640×1130 mm
Net weight	125 kg
Packaging dimension (W×D×H)	785×785×1336 mm
Gross weight	180 kg

Cryostat Microtome 23-LCM100 - Key Features

UV sterilizer prevents cryostat surface contamination
Peltier stage regulates temperature with 0.5C accuracy
Dual compressors enable 40 dB silent freezing operation
Adjustable cool plate reaches minimum temperature of -45C
Cool plate holds 28 specimen chunks with four-color chuck system
Refraction function range 0 to 80 μm ensures specimen integrity
Adjustable chuck holder cutting angle set at 12 degrees for precision

Cryostat Microtome 23-LCM100 - Applications

Function	Implementation
Histology labs	1 to 100 µm section thickness range enables precise tissue slicing
Clinical diagnostics	-45°C freezing shelf minimum temperature supports rapid specimen freezing
Research facilities	Dual compressor ensures stable cooling during extended operation
Quality control labs	70 × 20 mm specimen stroke accommodates varied sample sizes
Industrial testing	Anti-fog glass window maintains visibility in humid environments
