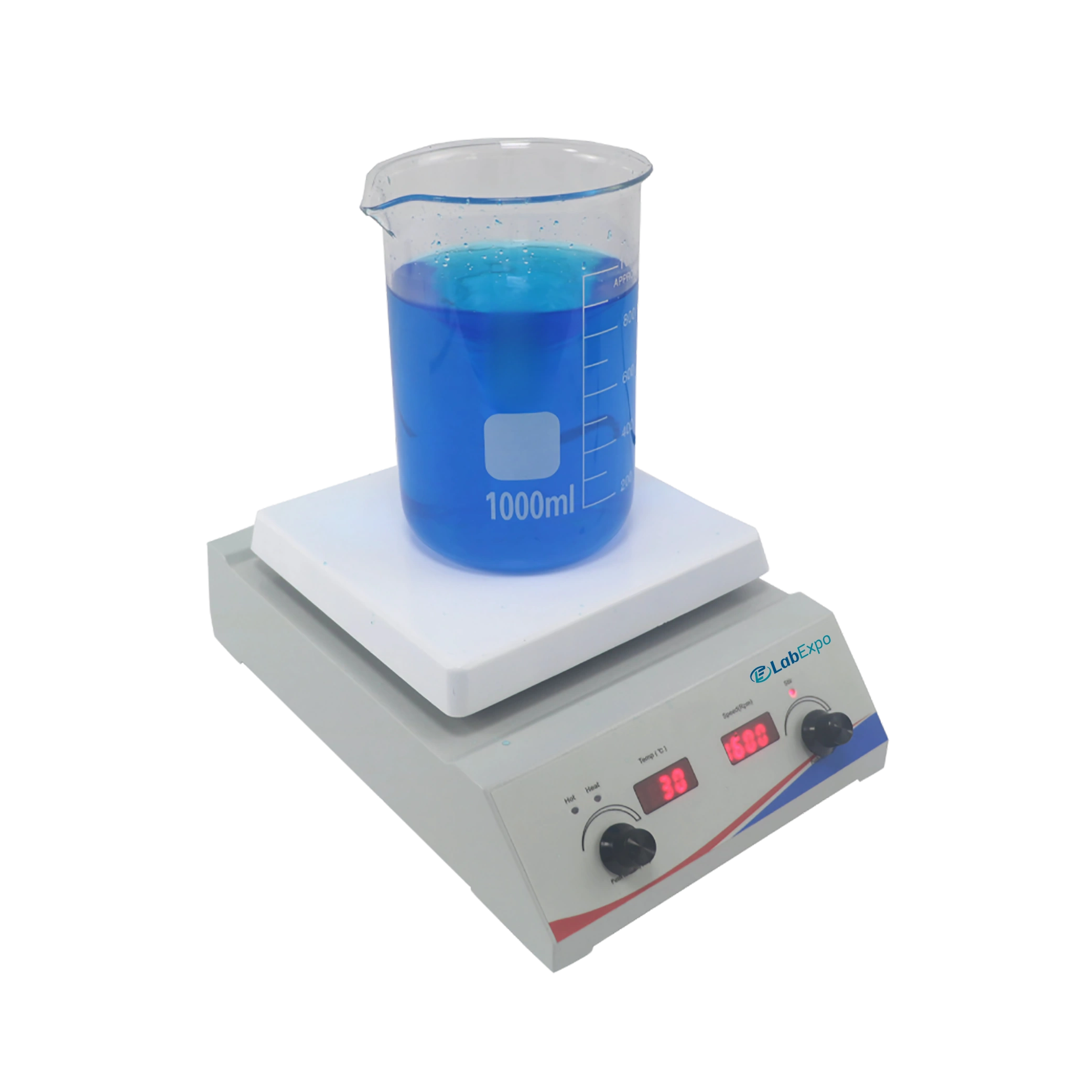

Lab Expo Digital Hot Plate LE-DHP205 offers a single stirring position for efficient heating and mixing tasks. It features a compact design that allows easy placement while ensuring efficient operation. Incorporated maximum stirring capacity of 20 liters (H₂O) per position. Built-in quiet operation ensures a noise-free working environment for improved user comfort and focus. Our Digital Hot Plate is suitable for precise heating in chemical synthesis, sample preparation, and research studies.
$1,882.00 $ 1568
| Display Mode | LED |
| Number of Stirring Positions | 1 |
| Maximum Stirring Quantity per Position | 20L (H2O) |
| Temperature Setting Range | 35℃ to 500℃ |
| Heating Range for Plate | 35℃ to 500℃ |
| Heating Range for Solution | 35℃ to 200℃ |
| Temperature Stability | 1℃ |
| Heating Setting Resolution of Plate | 1℃ |
| Heating Setting Resolution of Solution | 0.1℃ |
| Heat Control Accuracy with PT1000 | +/-0.5℃ |
| Stirring Bar Length | 30 to 80mm |
| External Temperature Sensor | PT 1000 |
| Plate Material | Ceramic |
| Chemical Resistant | Yes |
| Operation Temperature | 5 to 40℃ |
| Operation Relative Humidity | 80% |
| Hot Warning | Yes |
| Overheat Warning in Plate and Medium Detection | Yes |
| Protection Class According to DIN EN 60529 | IP 21 |
| Power Supply | 110 to 130 V/200 to 240 V |
| Frequency | 50/60Hz |
| Power Consumption | 600W |
| Plate Dimensions | 290 × 290mm |
| Dimensions | 292 × 422 × 110mm |
| Weight | 8.5 kg |
Function Implementation Chemical synthesis 600W supports precise heating in reactions Sample preparation Ceramic plate enables uniform thermal distribution Research studies ±0.5℃ accuracy ensures repeatable measurements Quality control testing 20L max stirring capacity handles batch volumes Industrial applications IP21 protection allows operation in humid environments
Lab Expo Digital Hot Plates are structured around PID-controlled heating architecture to maintain precise surface temperature stability. This laboratory hot plate uses a corrosion-resistant ceramic plate for uniform heat transfer under extended duty cycles. One-touch control with LED monitoring, external temperature sensing, and integrated safety alarms enable accurate thermal regulation for chemical reactions, sample preparation, and controlled laboratory heating workflows.
