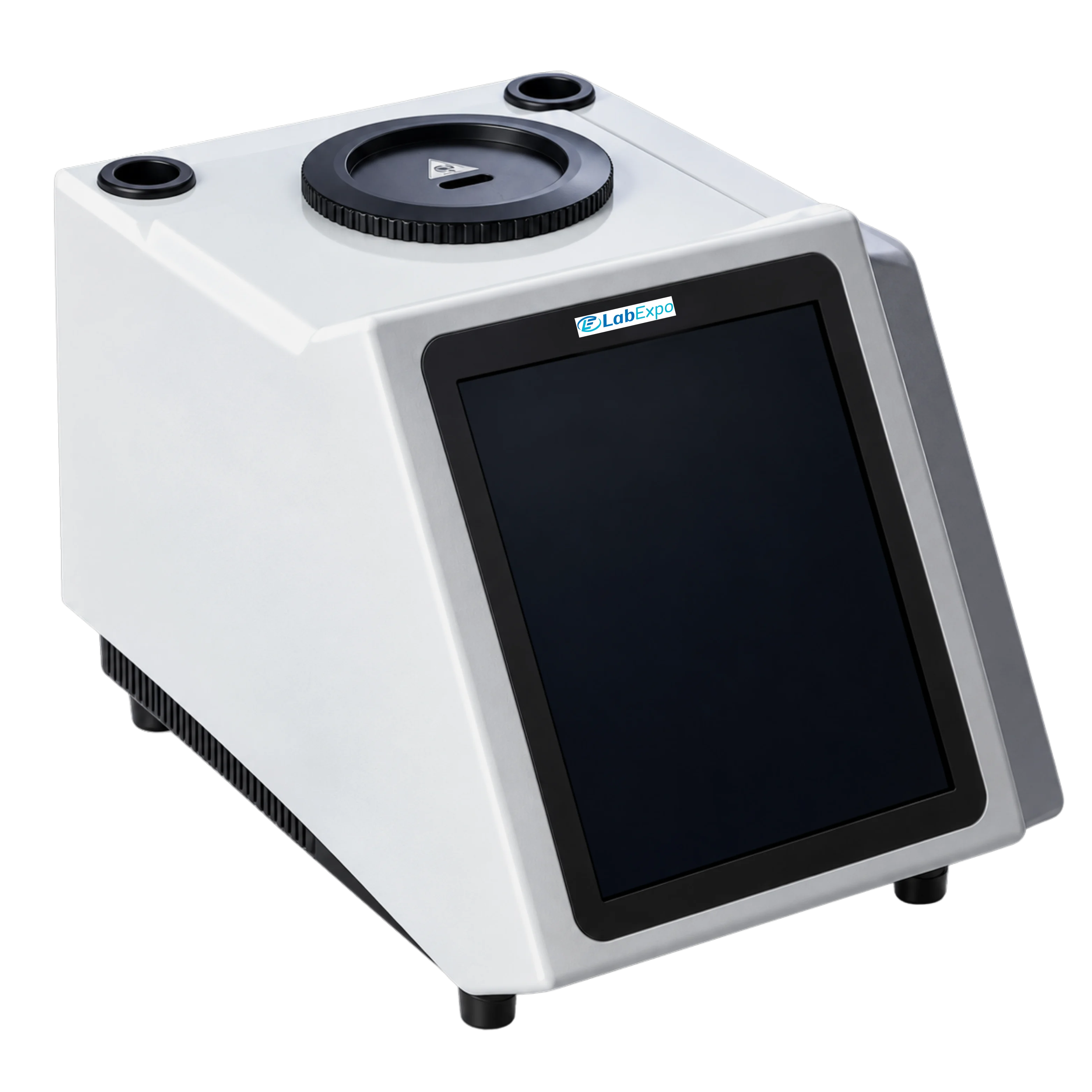

Lab Expo Digital Melting Point Apparatus LE-DMPA302 is designed to process 4 samples per batch for efficient analysis. It operates in a semi-automatic detection mode, ensuring consistent and accurate measurement of melting points. Integrated with a responsive touchscreen interface that simplifies navigation and improves operational efficiency. Incorporated with a temperature range from room temperature to 350 ℃ for versatile melting point analysis. Our Digital Melting Point Apparatus is well-suited for applications in the chemical, pharmaceutical, food, dye, and fragrance industries.
$5,842.00 $ 4868
| Temperature Range | RT to 350 ℃ |
| Detection Mode | Semi-Automatic |
| Processing Capacity | 4 Pieces/Batch |
| Temperature Resolution | 0.1℃ |
| Heating Rate | 0.1℃ to 20℃ (200 Steps) |
| Accuracy | ±0.3°C (250℃） |
| Repeatability | ±0.1℃ at 0.1℃/min |
| Video Function | Photos, Video |
| Video Playback | Yes |
| Magnification | 8× |
| Data Saving Result | 600 Entries |
| Video Storage Capacity | 16 GB |
| Display Mode | TFT High-Definition True Color Screen |
| Data Interface | USB, RS232, Wi Fi, RJ45 |
| Power Consumption | 120 W |
| Power Supply | 220V, 50Hz |
| Capillary Dimension | Outer Diameter: Φ1.4 mm, Inner Diameter: Φ1.0 mm |
Function Implementation Quality control labs ±0.3°C accuracy ensures precise melting point verification Pharmaceutical testing 4 pieces/batch processing supports sample throughput needs Research laboratories RT to 350℃ temperature range enables diverse compound analysis Clinical diagnostics USB and WiFi interfaces allow seamless data transfer Industrial material screening 16 GB video storage capacity records detailed thermal behavior
Lab Expo Digital Melting Point Apparatus is structured around photoelectric detection and precision block heating to capture phase transitions with high resolution. This digital melting point apparatus uses platinum resistance sensing with stabilized temperature control to track melting curves accurately. LCD visualization, automatic data logging, and PC connectivity support repeatable analysis, documentation, and quality control workflows in pharmaceutical, chemical, and academic laboratories.
