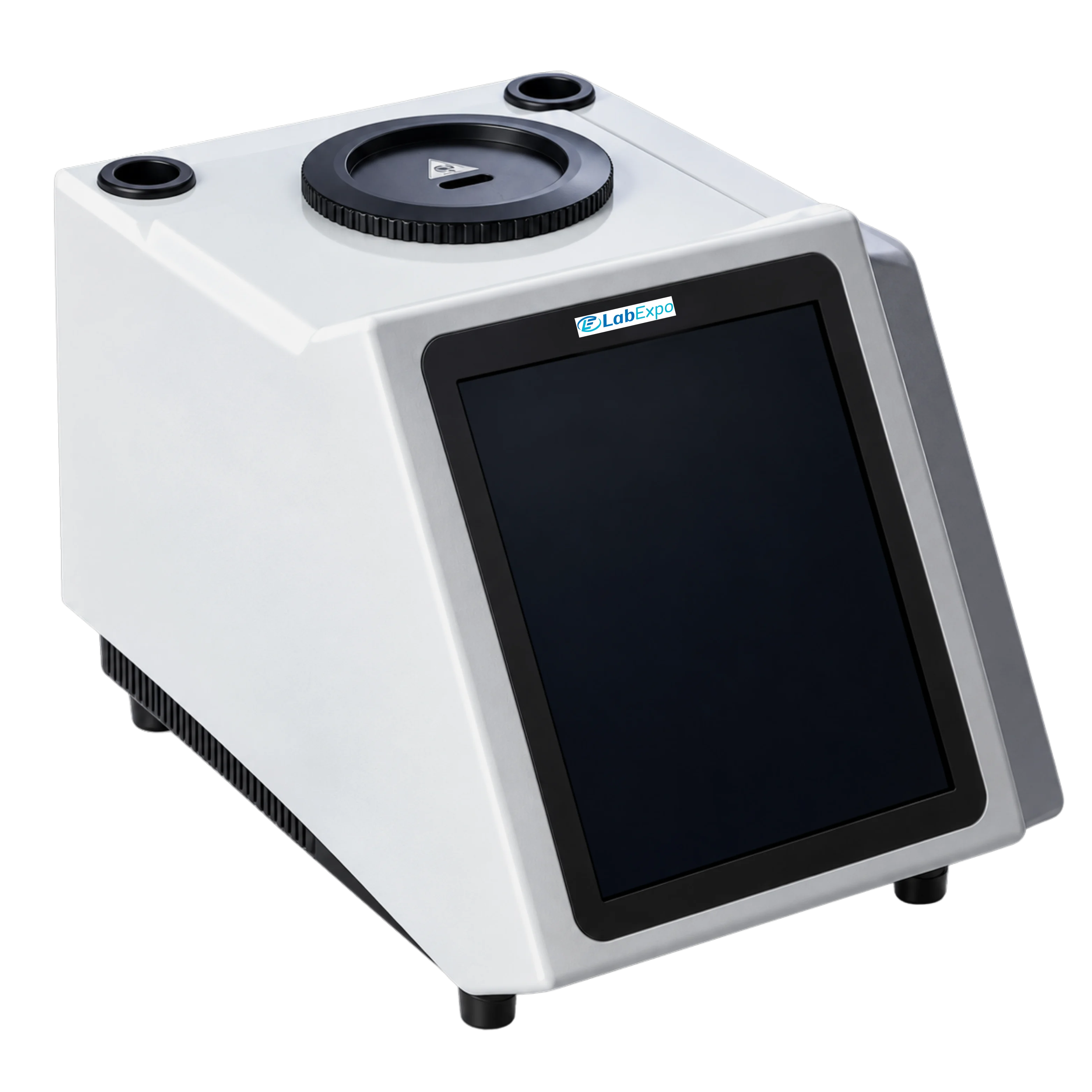

Lab Expo Digital Melting Point Apparatus LE-DMPA303 delivers a wide temperature range from room temperature to 420 ℃ for accurate analysis. It operates in a fully automatic detection mode, ensuring hassle-free melting point determination. Built-in with a 200-step adjustable heating rate ranging from 0.1 ℃ to 20 ℃ for precise control. Integrated with a processing capacity of 4 pieces per batch for simultaneous and efficient sample analysis. Our Digital Melting Point Apparatus is ideally suited for use in the chemical, pharmaceutical, food and perfume manufacturing industries.
$10,800.00 $ 9000
| Temperature Range | RT to 420 ℃ |
| Detection Mode | Fully Automatic |
| Processing Capacity | 4 Pieces/Batch |
| Temperature Resolution | 0.1℃ |
| Heating Rate | 0.1℃ to 20℃ (200 Steps) |
| Accuracy | ±0.3°C (250℃） |
| Repeatability | ±0.1℃ at 0.1℃/min |
| Video Function | Photos, Video |
| Video Playback | Yes |
| Magnification | 8× |
| Data Saving Result | 1000 Entries |
| Video Storage Capacity | 32 GB |
| Display Mode | TFT High-Definition True Color Screen |
| Data Interface | USB, RS232, Wi Fi, RJ45 |
| Power Consumption | 120 W |
| Power Supply | 220V, 50Hz |
| Capillary Dimension | Outer Diameter: Φ1.4 mm, Inner Diameter: Φ1.0 mm |
Function Implementation Quality control labs ±0.3°C accuracy supports precise melting point verification Research facilities RT to 420 ℃ temperature range enables diverse compound analysis Clinical testing sites Fully automatic detection mode streamlines routine sample processing Industrial material assessment 4 pieces per batch processing capacity improves workflow efficiency Pharmaceutical development 0.1℃ to 20℃ heating rate (200 steps) allows controlled thermal profiling
Lab Expo Digital Melting Point Apparatus is structured around photoelectric detection and precision block heating to capture phase transitions with high resolution. This digital melting point apparatus uses platinum resistance sensing with stabilized temperature control to track melting curves accurately. LCD visualization, automatic data logging, and PC connectivity support repeatable analysis, documentation, and quality control workflows in pharmaceutical, chemical, and academic laboratories.
