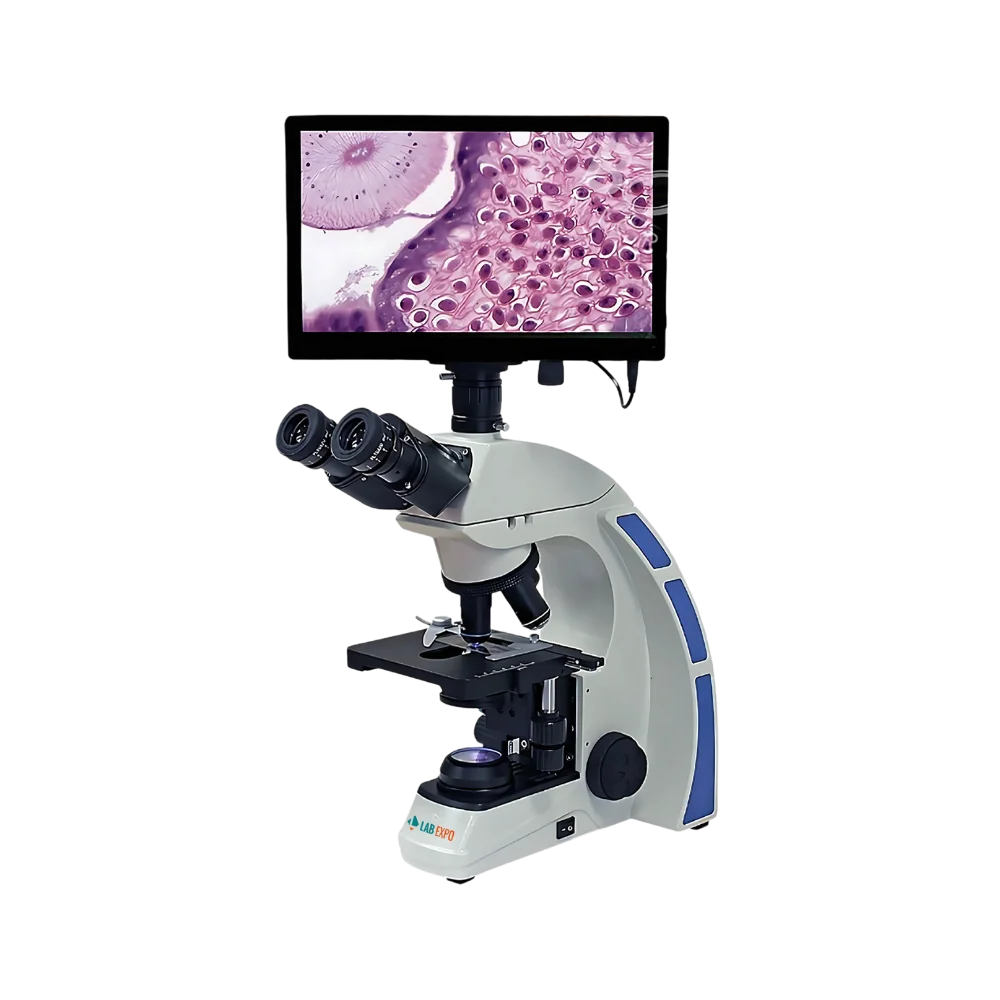

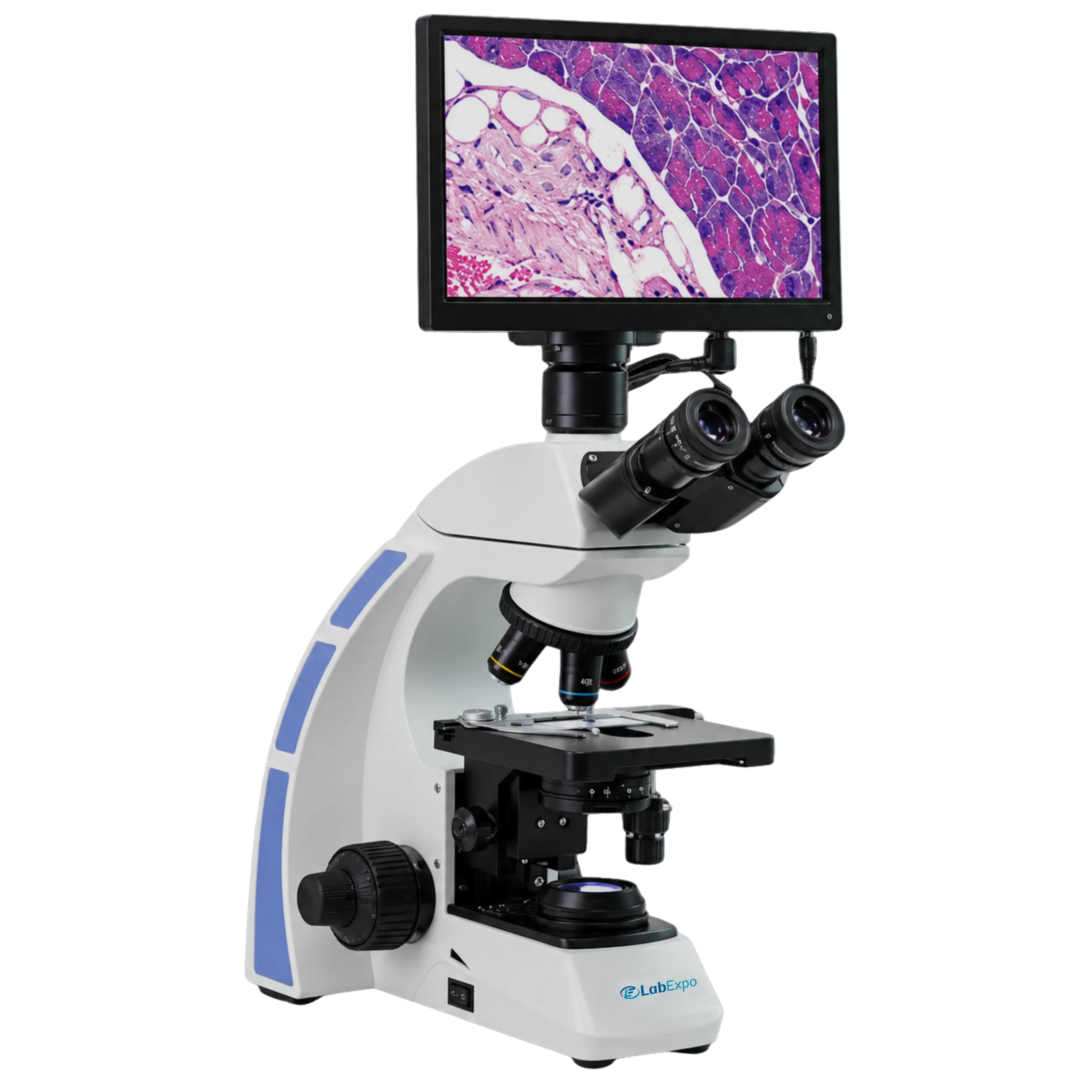

Lab Expo Digital Microscope 43-DMS100 allows person to view the sample without straining the eyes because of which quantitative analysis of samples at microscopic level is possible. It comes with advanced technology LCD TFT touch screen for high resolution image of the specimen. We can obtain clear and sharp images of the specimen using coarse and fine focusing adjustment mechanism.
$3,538.00 $ 2948
| Optical system | Infinite optical system |
| Viewing head | Trinocular head, inclined at 30º, interpupillary distance 54 mm-75 mm |
| Eyepiece | High eye point wide field plan eyepiece PL10X/22 mm, with ±5 diopter control |
| Objectives | Infinity plan achromatic objective: 4x, 10x, 40x(s), 100x(s, Oil) |
| Stage | Coaxial mechanical stage: 140 x130 mm Travel stage: 76x50 mm |
| Condenser | Kohler N.A. 1.25 condenser (with socket for phase contrast& dark field sliders) |
| Focusing | Coarse and fine focusing adjustment with limited and tension adjustment. Coarse adjustment range 25 mm, fine adjustment precision:0.002 mm |
| Nosepiece | Backward quadruple nosepiece |
| Illumination | Main supply 100 V ~ 240 V, 3W LED lamp with intensity control (fixed center) |
| LCD Screen | 9.7 inch TFT touch screen |
| Output | USB 2.0, HDMI |
| Operating system | Android 4.2.2 |
| Software | IMS camera |
| Valid Pixel | 5.0 Mega pixel |
| Dimension | 300×320×160 mm |
| Net weight | 1 kg |
| Gross weight | 2 kg |
| Power supply | 85 V to 265 V universal power supply |
Function Implementation Education labs 9.7 inch TFT touch screen enables interactive specimen viewing Quality control stations 5.0 Mega pixel Valid Pixel supports detailed inspection analysis Research facilities Trinocular head allows simultaneous eyepiece and camera observation Clinical settings Coaxial mechanical stage: 140 x130 mm accommodates standard slides Industrial workshops Universal power supply 85 V to 265 V ensures stable operation across sites
| Accessories No. | Name |
| 1 | Dark field slider for condenser |
| 2 | Simple polarization (with analyzer & polarizer) |
| 3 | Phase contrast kit (10x, 20x, 40x, 100x) |
Lab Expo Digital Microscopes are structured around integrated optical–digital imaging paths to deliver high-resolution visualization on a built-in LCD display. Precision coarse and fine focus control, adjustable LED illumination, and plan achromatic optics ensure sharp image formation across specimen types. USB connectivity, Android compatibility, and intelligent analysis software support measurement, documentation, and efficient data handling for research, industrial inspection, education, and clinical laboratory workflows.
