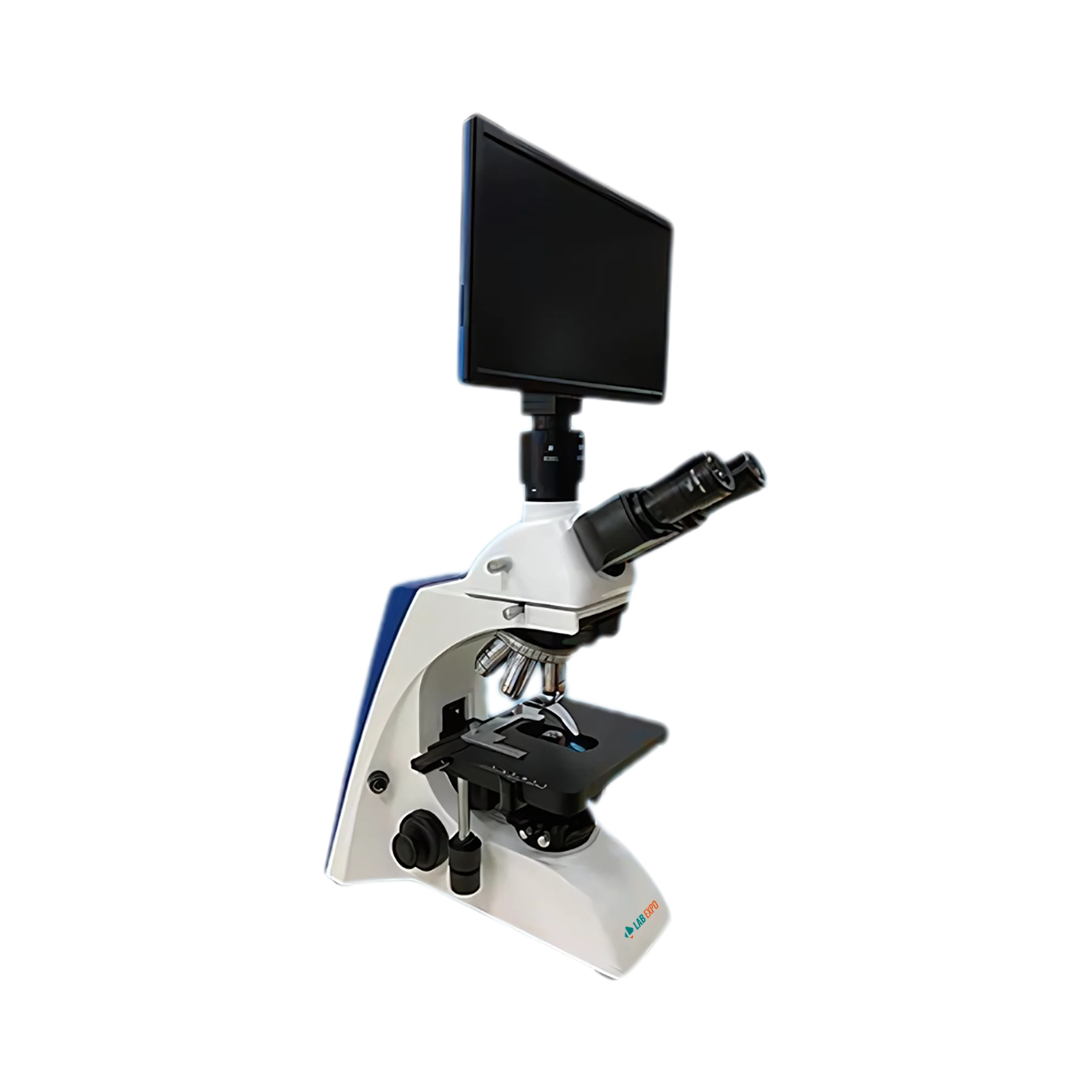

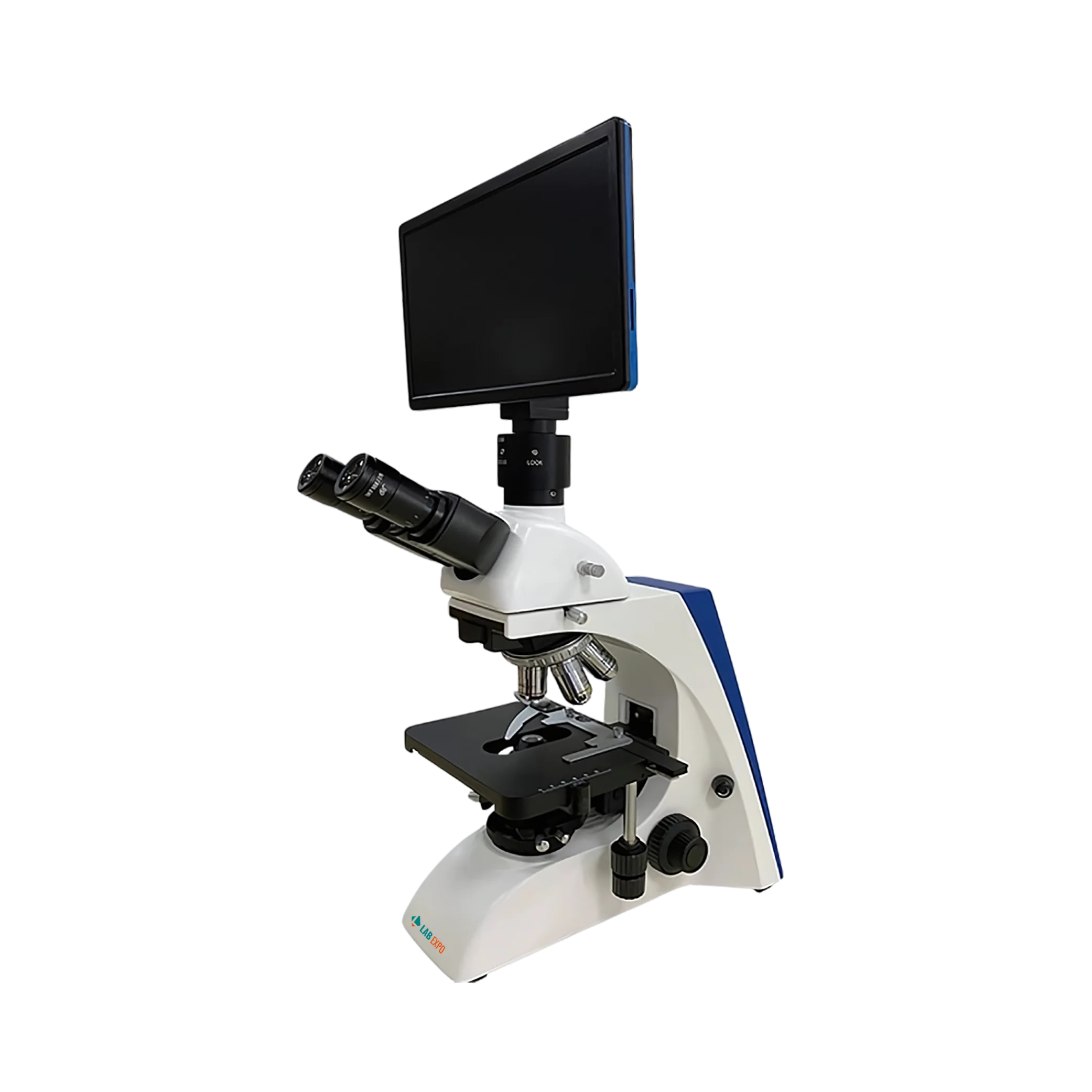

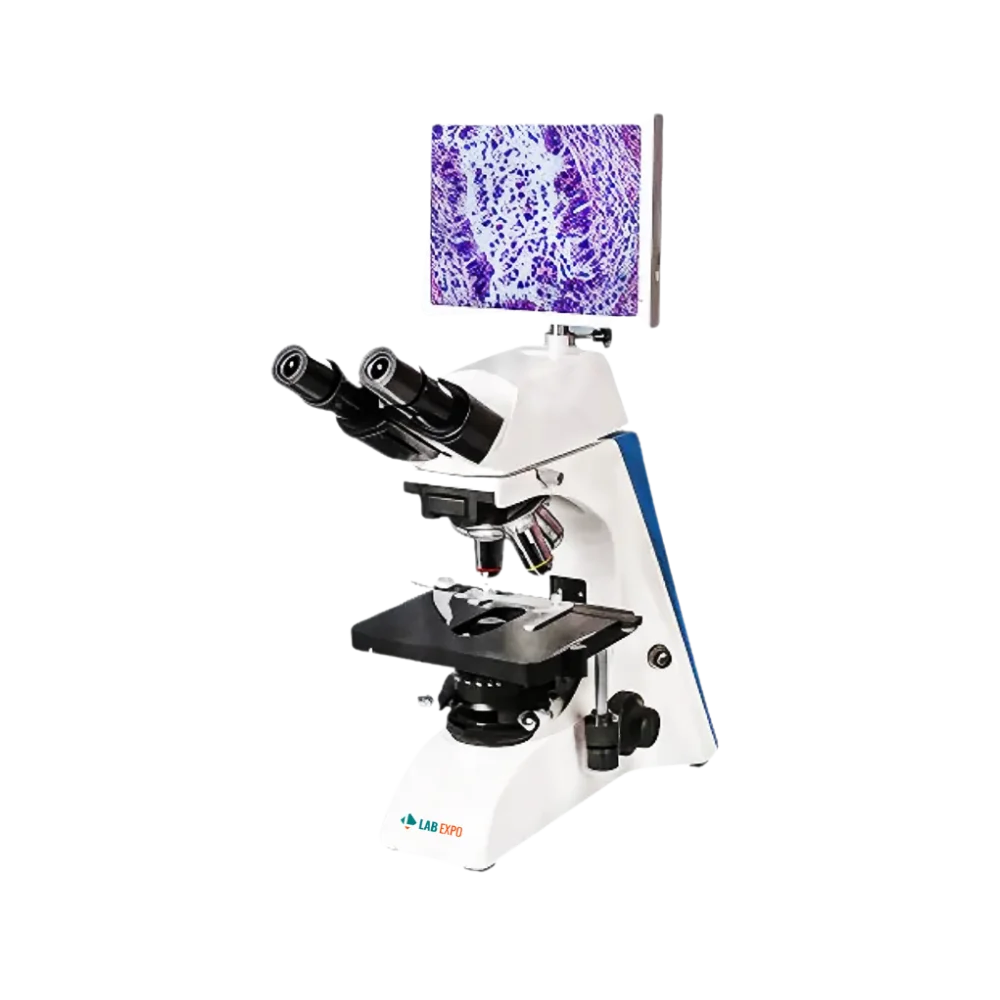

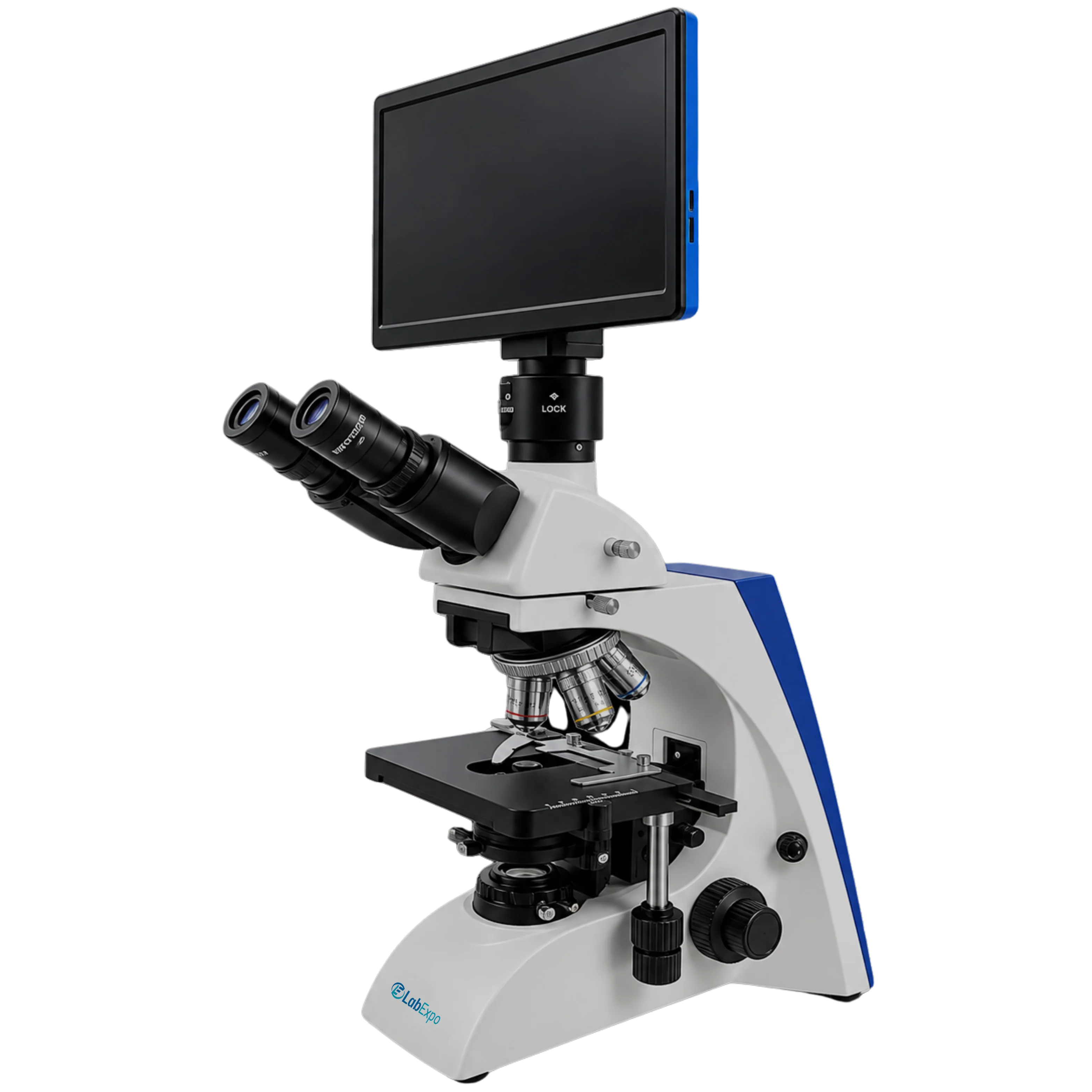

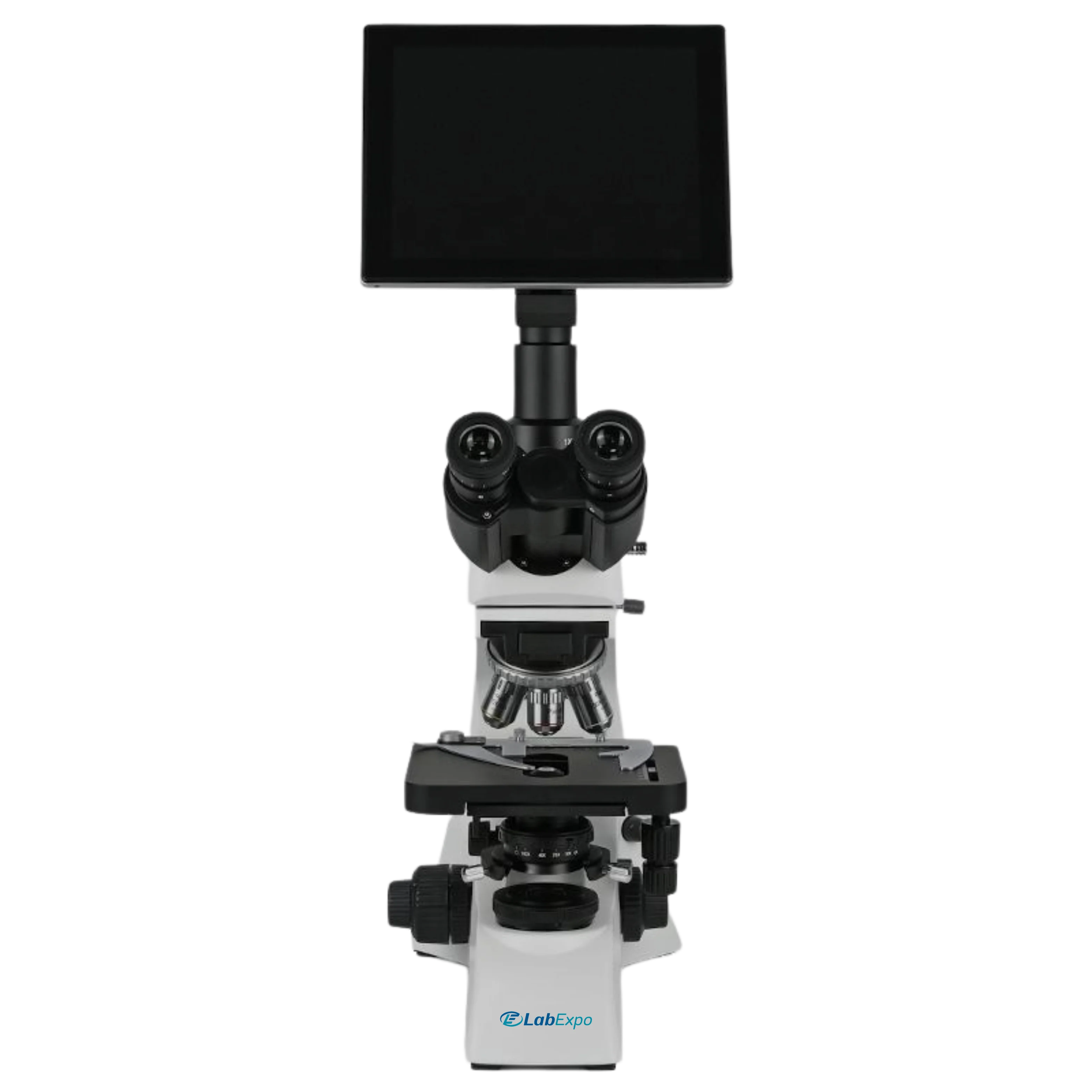

Lab Expo Digital Microscope 43-DMS101 allows person to view the sample without straining the eyes because of which quantitative analysis of samples at microscopic level is possible. It comes with advanced technology LCD TFT touch screen for high resolution image of the specimen. We can obtain clear and sharp images of the specimen using coarse and fine focusing adjustment mechanism.
$3,005.00 $ 2504
| Optical system | Infinite optical system |
| Viewing head | Siedentopf type binocular head , inclined at 30º, 360ºeyepiece tube rotation, interpupillary distance 50 mm-75 mm, anti-fungal system |
| Eyepiece | WF10X |
| Objectives | Infinity plan achromatic objective: 4x, 10x, 40x(s), 100x(s, Oil) |
| Stage | Double layer mechanical stage: 180x145 mm Travel stage: 56 x75 mm with right hand stage handle |
| Condenser | Abbe type N.A. 1..25 condenser with iris diaphragm |
| Focusing | Coarse and fine focusing adjustment with rack and pinion mechanism fine focusing interval 0.002mm |
| Nosepiece | Quintuple quick-stop revolving mechanism with multiple ball bearing |
| Illumination | Built-in kohler illumination system 3W LED, adjustable brightness, field diaphragm |

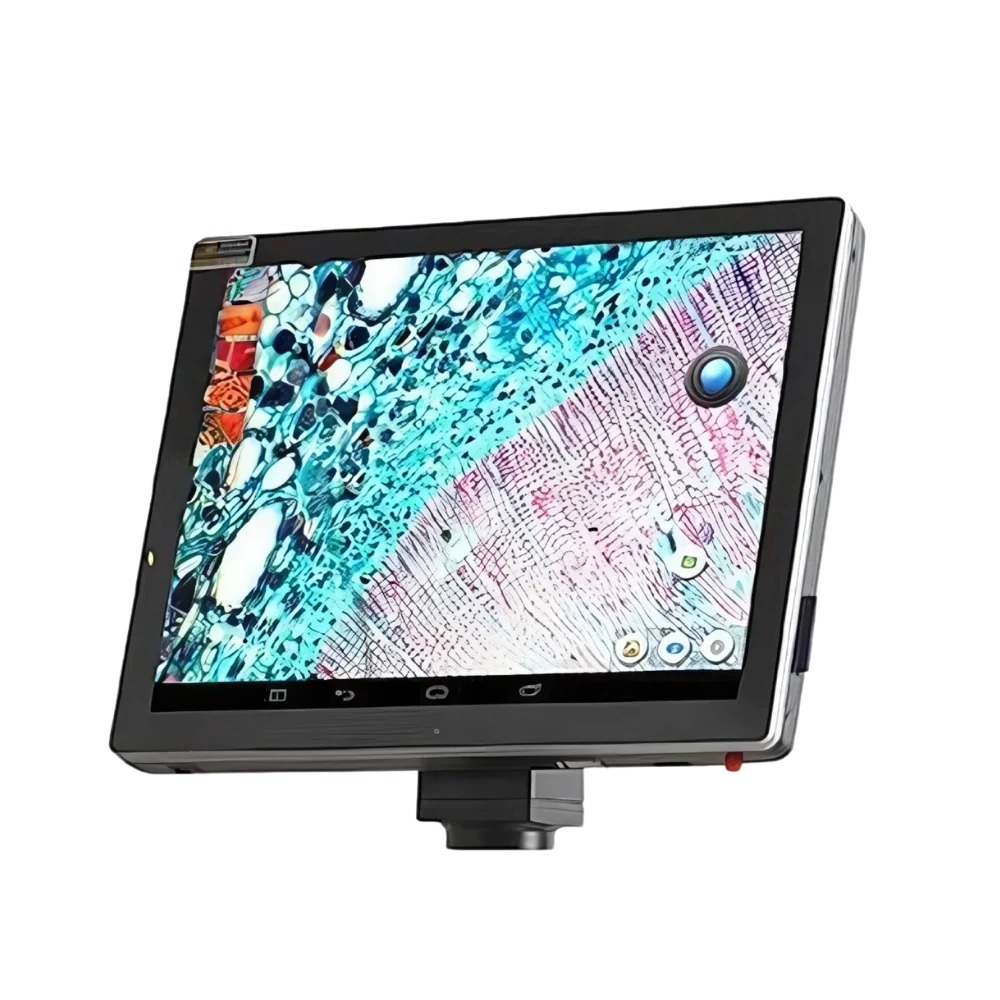

| LCD Screen | 8.0 inch TFT touch screen |
| Output | USB 2.0, HDMI |
| Operating system | Android 4.2.2 |
| Software | Touch scope |
| Valid Pixel | 5.0 Mega pixel |
| Dimension | 380×380×750 mm |
| Net weight | 13 kg |
| Gross weight | 14 kg |
| Power supply | 85 V to 265 V universal power supply |
Function Implementation Education labs 8.0 inch TFT touch screen enables clear specimen viewing Clinical analysis 5.0 Mega pixel Valid Pixel supports detailed imaging Research facilities Infinity plan achromatic objective 4x, 10x, 40x(s), 100x(s, Oil) allows magnification flexibility Quality control Fine focusing interval 0.002mm ensures precise adjustments Industrial inspection USB 2.0, HDMI output connects to external displays for documentation
Lab Expo Digital Microscopes are structured around integrated optical–digital imaging paths to deliver high-resolution visualization on a built-in LCD display. Precision coarse and fine focus control, adjustable LED illumination, and plan achromatic optics ensure sharp image formation across specimen types. USB connectivity, Android compatibility, and intelligent analysis software support measurement, documentation, and efficient data handling for research, industrial inspection, education, and clinical laboratory workflows.
