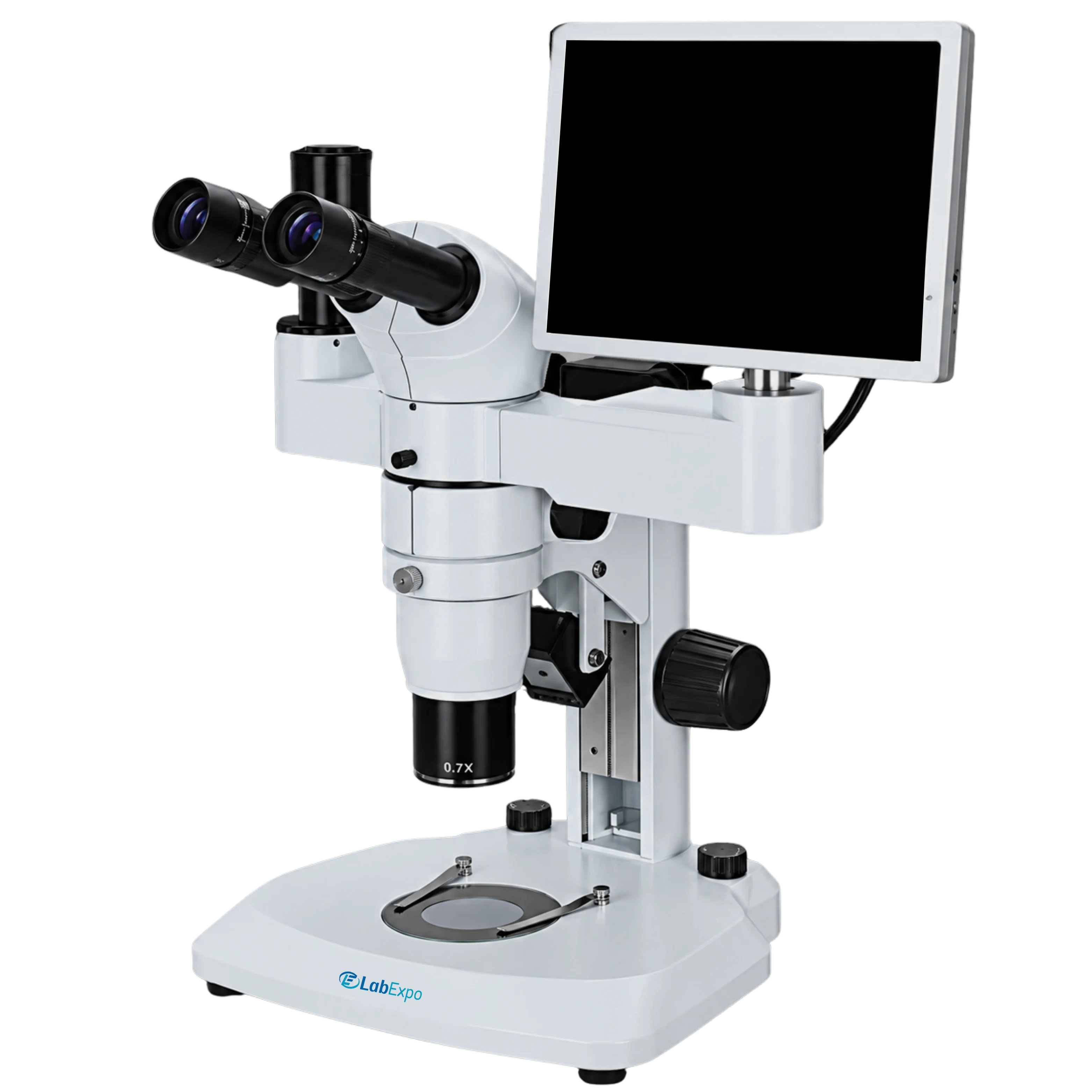

Lab Expo Digital Microscope 43-DMS202 allows person to view the sample without straining the eyes because of which quantitative analysis of samples at microscopic level is possible. It comes with advanced technology LCD TFT touch screen for high resolution image of the specimen. We can obtain clear and sharp images of the specimen using coarse and fine focusing adjustment mechanism.
$5,467.00 $ 4556
| Viewing head | Binocular head, inclined at 20º , interpupillary distance 55 to 75 mm |
| Eyepiece | EW10X/ Ø22 mm |
| Objectives | Plan achromatic objective: 1x Zoom objectives: 0.8x-8x with 1:10 zoom ratio |
| Stage | working distance: 78 mm |
| Focusing | Focusing distance: 105 mm |
| Illumination | Transmission & reflected LED illumination, brightness adjustable |
| LCD Screen | 8 inch TFT touch screen |
| Output | USB 2.0 Mini USB, HDMI |
| Operating system | Android 4.2.2 |
| Software | Touch scope (for microscope) NMS client (for PC) |
| Digital Part | 5.0 mega pixel, CMOS chip and support Wi-Fi and Bluetooth |
| Dimension | 370×320×670 mm |
| Net weight | 9 kg |
| Gross weight | 10 kg |
Function Implementation Quality control labs 5.0 mega pixel CMOS chip enables detailed specimen analysis Clinical diagnostics 8 inch TFT touch screen supports high-resolution image viewing Educational institutions Adjustable interpupillary distance 55 to 75 mm accommodates multiple users Research facilities Zoom objectives 0.8x-8x with 1:10 zoom ratio allows flexible magnification Industrial inspection Transmission & reflected LED illumination with brightness adjustable ensures clear imaging
| Accessories No. | Name |
| 1 | Tilting binocular head 0 to 35° inclined, interpupillary distance 55 mm to 75 mm |
| 2 | Plan achromatic objective: 2x |
| 3 | Plan apochromatic objective: 0.5x |
| 4 | Achromatic objective: 0.3x and 0.5x |
| 5 | Eyepiece: EW15X/ Ø 16 mm |
| 6 | Coaxial coarse and fine focusing attachment |
Lab Expo Digital Microscopes are structured around integrated optical–digital imaging paths to deliver high-resolution visualization on a built-in LCD display. Precision coarse and fine focus control, adjustable LED illumination, and plan achromatic optics ensure sharp image formation across specimen types. USB connectivity, Android compatibility, and intelligent analysis software support measurement, documentation, and efficient data handling for research, industrial inspection, education, and clinical laboratory workflows.
