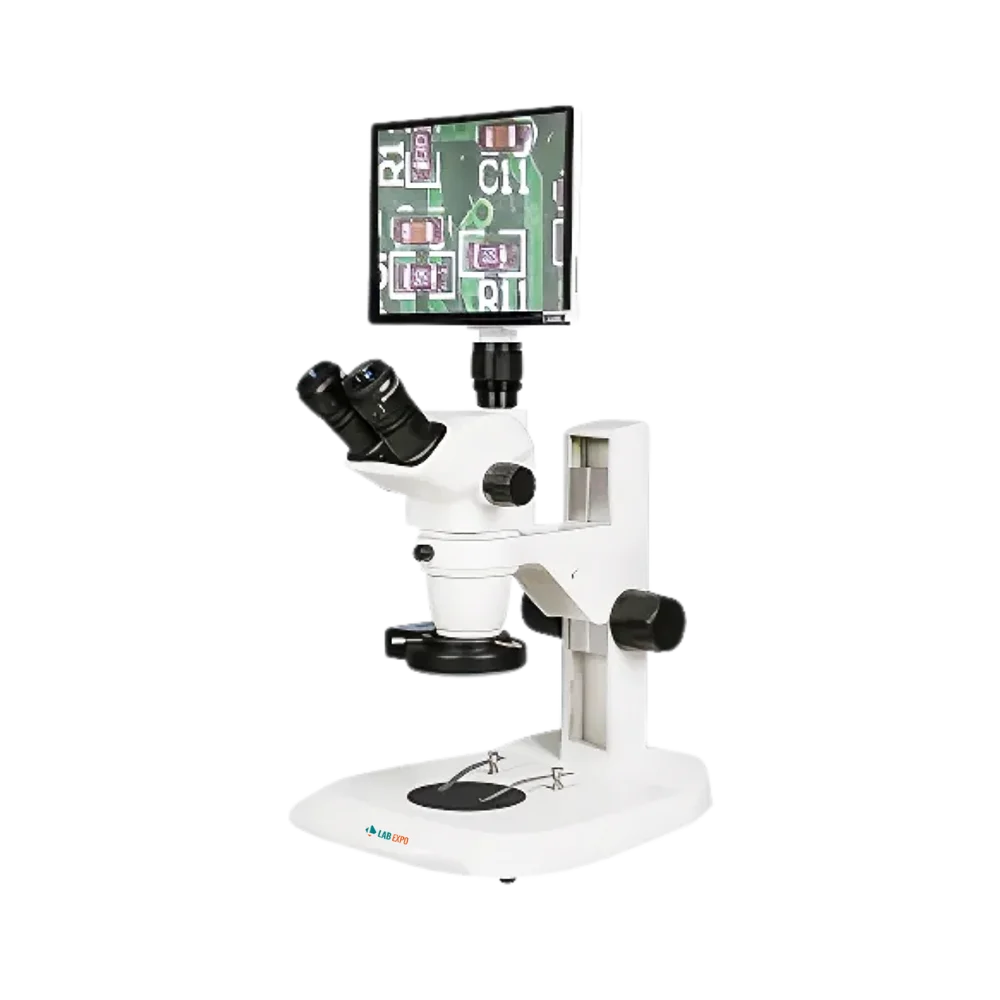

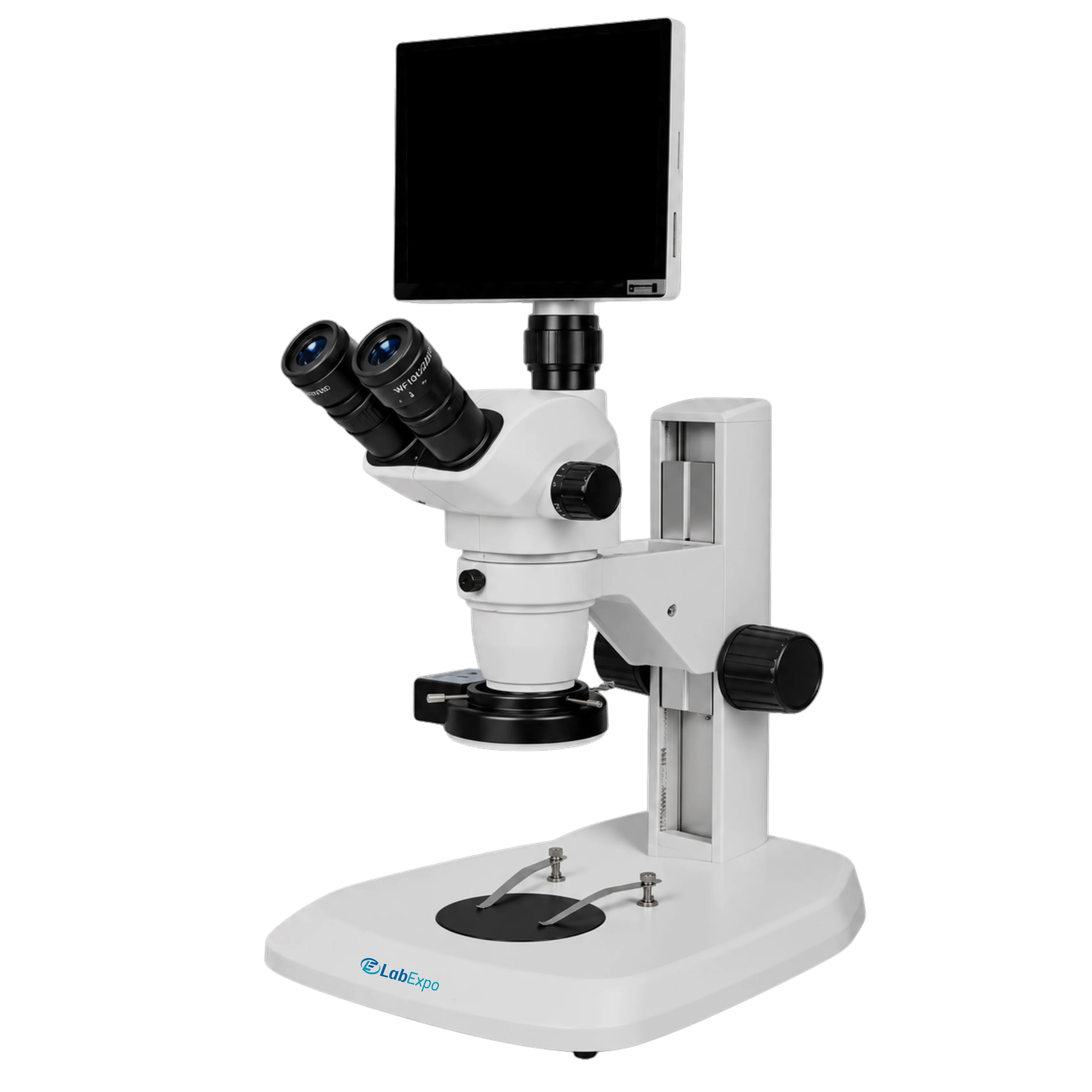

Digital Microscope 43-DMS203

Digital microscope allows person to view the sample without straining the eyes because of which quantitative analysis of samples at microscopic level is possible. It comes with advanced technology LCD TFT touch screen for high resolution image of the specimen. We can obtain clear and sharp images of the specimen using coarse and fine focusing adjustment mechanism.

Viewing head 45° inclined and 360° rotable trinocular head, interpupillary distance 55-75 mm
Eyepiece WF10X/ 22 mm
Objectives Zoom objectives: 0.67x-4.5x
Zoom ratio: 1:6.7
Magnification: 6.7x-45x
Stage Working distance: 105 mm
Illumination White and black plate
Incident & transmitted illumination by 3W LED
LCD Screen 9.7 inch TFT touch screen
Digital Part 60 LED bulbs
Dimension 430×430×510 mm
Net weight 8 kg
Gross weight 9.5 kg
Power supply 220 V / 50 Hz or 110 V / 60 Hz
  • 9.7 inch TFT touching screen
  • Incident & transmitted illumination by 3W LED
  • LED ring lamp with 60 LED bulbs
  • Equipped with zoom objectives
  • Large working distance 105mm
  • IMS camera software

Accessories no. Name
1 Auxiliary objective: 0.5x, 1.5x, 2x
2 Eyepiece WF20X/12mm
3 Eyepiece: EW15X/ Ø 16 mm
4 Frosted glass plate
5 LED ring lamp: 48 LED bulbs

They have wide and promising applications in the fields of engineering, metallurgic industry and others for the inspection of electrical circuits, metal thin plate and also used in medical research field to study the details of the specimen on LCD screen.
