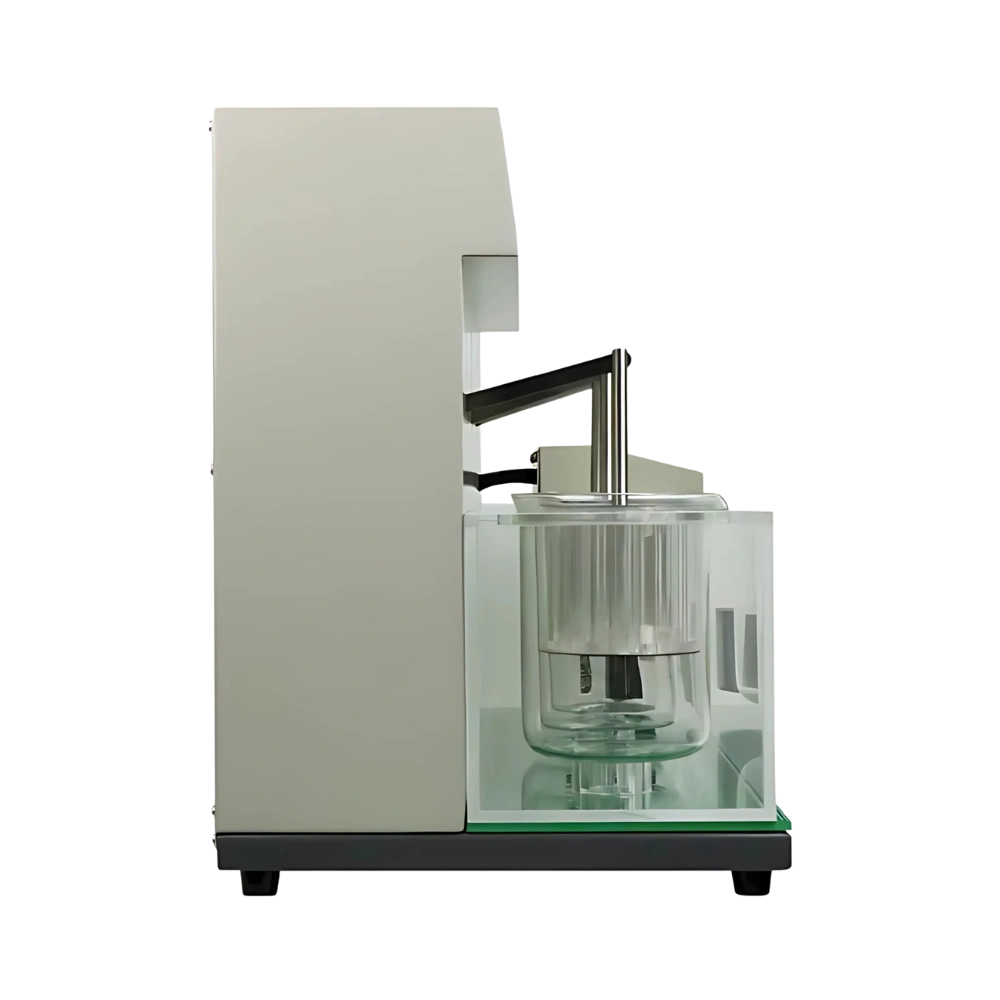

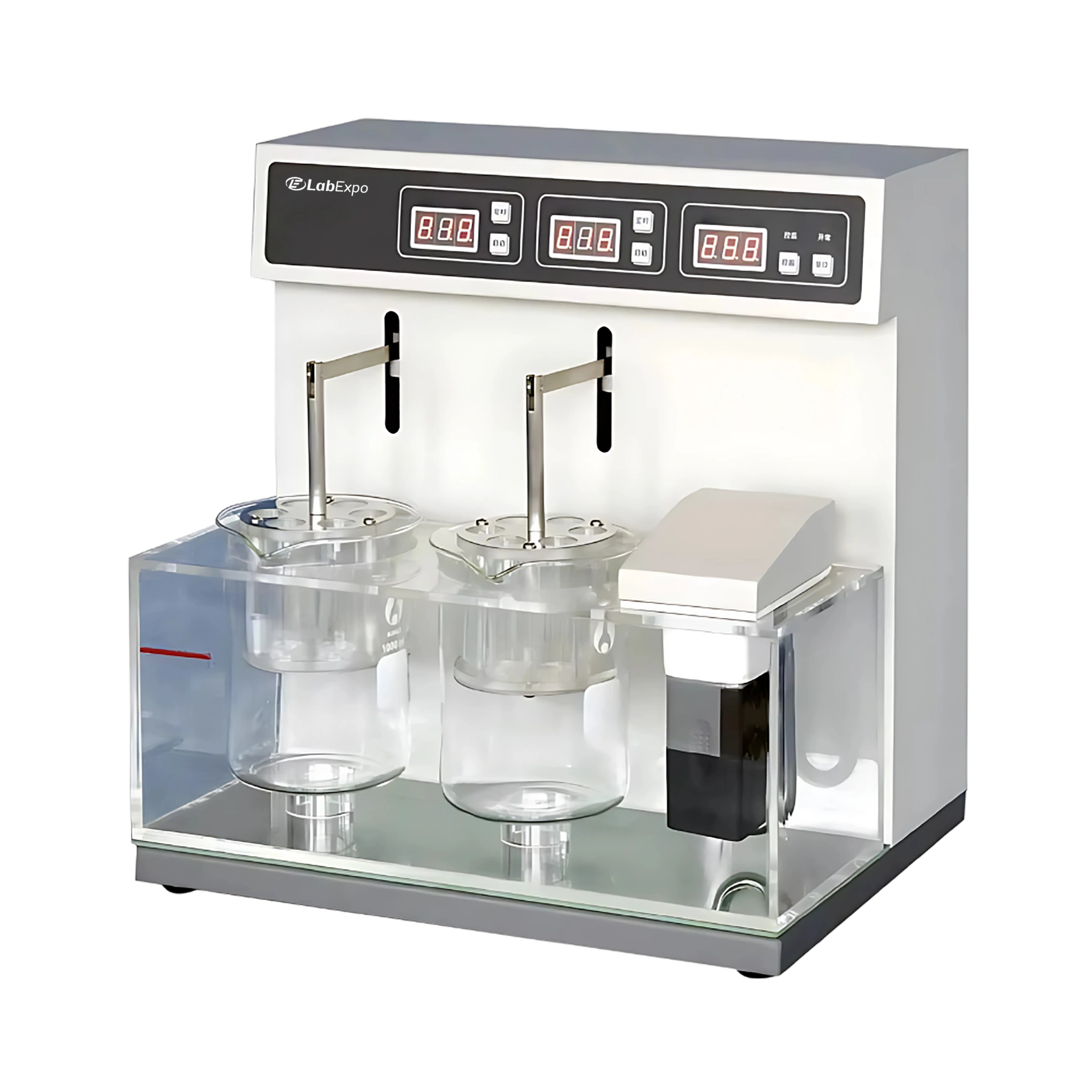

Lab Expo Disintegration Tester LE-DT101 offers an automatic time range setting from 5 to 120 minutes to allow precise control. It includes an auto-stop function that activates at the preset timing point. Equipped with MPU to automatically control the back-and-forth frequency of the nacelle. Integrated with digital displays for clear visualization of real-time test parameters. Our Disintegration Tester is an essential tool for pharmaceutical quality control.
$3,293.00 $ 2744
| Basket assembly | 2 |
| Nacelle back and forth frequency | (30 to 32)/min |
| Nacelle back and forth range | 55±1 mm |
| Automatic time range | 5 to 120 mm |
| Accuracy of controlling temperature | 37 ± 0.5°C |
| Power Consumption | 600 W |
| Power Supply | 110V/60 Hz or 220V/50Hz |
| Dimension | 400 × 300 × 420 mm |
| Weight | 16 kg |
Function Implementation Pharmaceutical QC labs 37 ± 0.5°C temperature accuracy ensures precise tablet disintegration testing Tablet dissolution analysis Automatic time range from 5 to 120 minutes allows customizable test durations Dual-basket operations Basket assembly of 2 enables simultaneous sample processing High-frequency motion control Nacelle back and forth frequency of (30 to 32)/min provides consistent mechanical action Benchtop laboratory use Dimension of 400 × 300 × 420 mm fits standard lab workspaces
Lab Expo Disintegration Tester units are used to assess tablet and capsule disintegration under controlled motion conditions in pharmaceutical testing workflows. The range includes systems with dual basket assemblies operating at 30 to 32 cycles per minute and a reciprocating range of 55 ±1 mm. Configurations are structured for consistent immersion and movement, supporting evaluation of dosage form breakdown in quality control and formulation testing environments requiring repeatable disintegration analysis.
