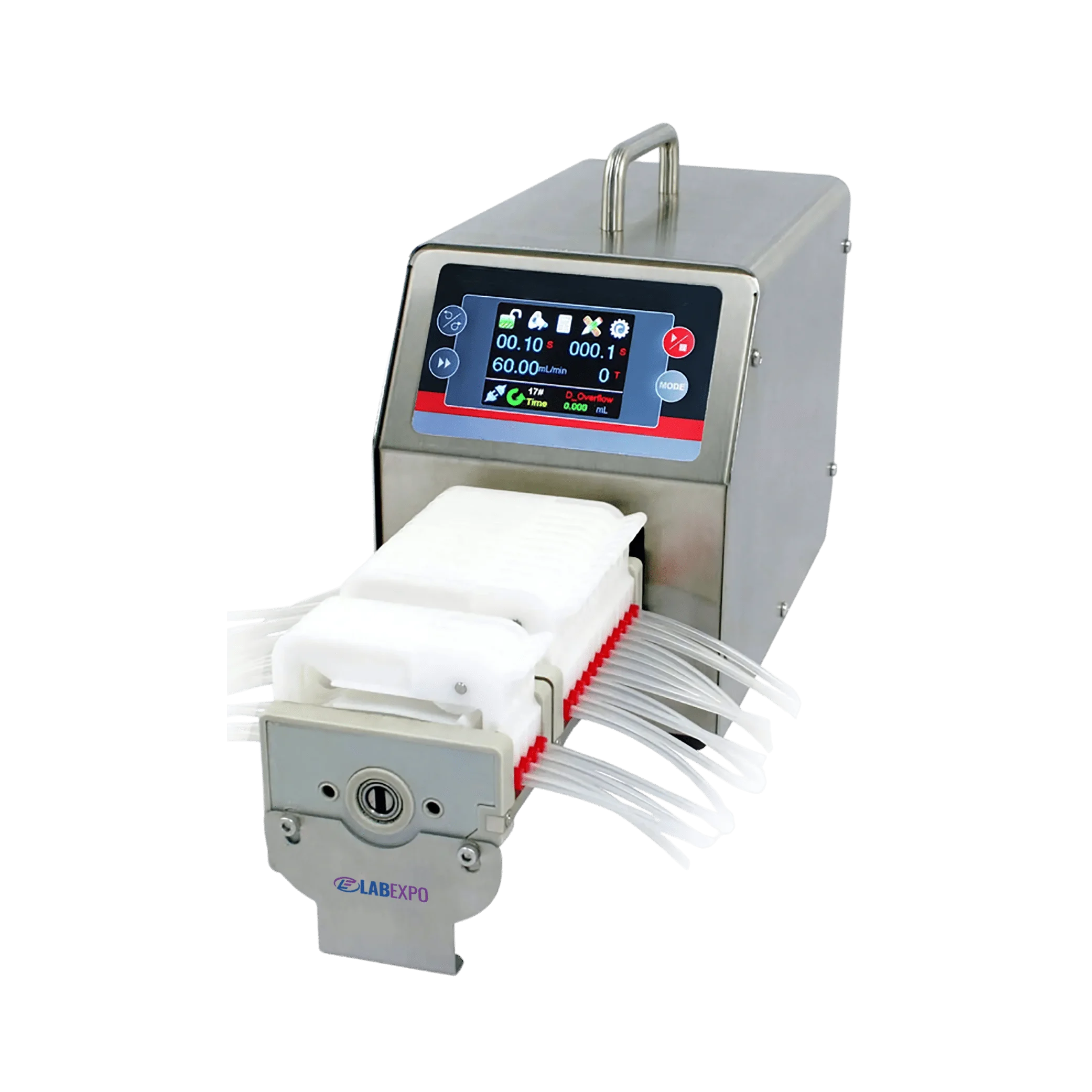

Dispensing Pump is a twenty-four channeled pump equipped with a touch screen controller that allows monitoring of parameters and change of speed. Equipped with advanced features such as flow rate calibration and anti-drip function. Four operational modes available for high productive efficiency and separating fluid to number of equal parts. Easy dispense mode to dispense the recorded volume by one touch DISPENSE key. Intelligent cooling fan control helps in minimizing the work noise. Built in no maintenance high torque brushless motor.
| Flow Range | 0.00011 ~ 1700 mL/min |
| Flow Accuracy | 0.5 %. |
| Speed Range | 0.1 ~ 150 rpm |
| No of channel | 24 |
| Speed Resolution | 0.1 rpm |
| Ambient Temperature | 0 ~ 40 °C |
| Relative Humidity | < 80 % |
| IP grade | IP 31 |
| Power supply | AC 220 V ±10 % , 50 Hz / 60 Hz |
| Power Consumption | < 60 W |
| Dimensions ( L x W x H ) | 285 × 250 × 195 mm |
| Weight | 6.5 kg |
| Model No | Pump Head Flow rate | Channel | Tubing Size ( mm ) |
|---|---|---|---|
| 51-DPP400A | 0.00016 - 26 Flow rate (mL/min) | 8 | Wall : 0.8 ~ 1 |
| 51-DPP400B | 0.00011 - 20 Flow rate (mL/min) | 8 | Wall : 0.8 ~ 1 |
| 51-DPP400C | 0.00016 - 26 Flow rate (mL/min) | 12 | Wall : 0.8 ~ 1 |
| 51-DPP400D | 0.00011 - 20 Flow rate (mL/min) | 12 | Wall : 0.8 ~ 1 |
| 51-DPP400E | 0.00016 - 26 Flow rate (mL/min) | 16 | Wall : 0.8 ~ 1 |
| 51-DPP400F | 0.00011 - 20 Flow rate (mL/min) | 16 | Wall : 0.8 ~ 1 |
| 51-DPP400G | 0.00016 - 26 Flow rate (mL/min) | 24 | Wall : 0.8 ~ 1 |
| 51-DPP400H | 0.00011 - 20 Flow rate (mL/min) | 24 | Wall : 0.8 ~ 1 |
| 51-DPP400I | 0.0002 - 82 Flow rate (mL/min) | 8 | Wall : 0.8 ~ 1 |
| 51-DPP400J | 0.006 - 420 Flow rate (mL/min) | 1 | Wall : 0.8 ~ 1 |
| 51-DPP400K | 0.16 - 420 Flow rate (mL/min) | 1 | Wall : 0.8 ~ 1 |
| 51-DPP400L | 0.006 - 420 Flow rate (mL/min) | 2 | Wall : 0.8 ~ 1 |
| 51-DPP400M | 0.16 - 420 Flow rate (mL/min) | 2 | Wall : 0.8 ~ 1 |
| 51-DPP400N | 0.006 - 570 Flow rate (mL/min) | 1 | Wall : 0.8 ~ 1 |
| 51-DPP400O | 0.017 - 720 Flow rate (mL/min) | 1 | Wall : 0.8 ~ 1 |
| 51-DPP400P | 0.006 - 570 Flow rate (mL/min) | 2 | Wall : 0.8 ~ 1 |
| 51-DPP400Q | 0.017 - 720 Flow rate (mL/min) | 2 | Wall : 0.8 ~ 1 |
| 51-DPP400R | 0.05 - 400 Flow rate (mL/min) | 1 | Wall : 0.8 ~ 1 |
| 51-DPP400S | 0.05 - 400 Flow rate (mL/min) | 2 | Wall : 0.8 ~ 1 |
| 51-DPP400T | 0.05 - 260 Flow rate (mL/min) | 4 | Wall : 0.8 ~ 1 |
| 51-DPP400U | 0.25 - 1200 Flow rate (mL/min) | 1 | Wall : 0.8 ~ 1 |
| 51-DPP400V | 0.3 - 1700 Flow rate (mL/min) | 1 | Wall : 0.8 ~ 1 |
