Dissolution Tester LE-DS101

Dissolution Tester LE-DS101

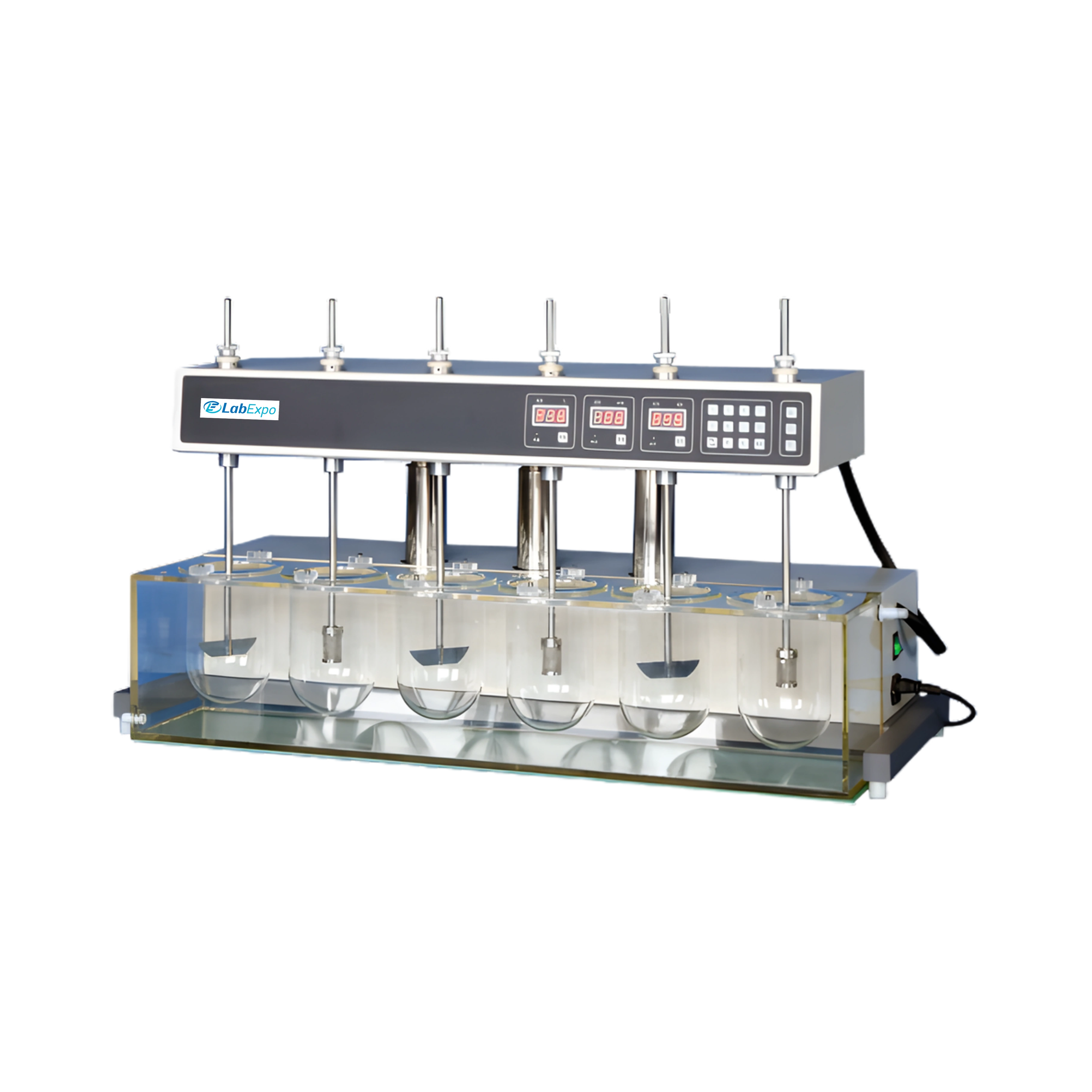

Lab Expo Dissolution Tester LE-DS101 operates at a speed range of 20 to 200 r/min to ensure precise and consistent agitation. It features an automatic time range from 1 to 999 minutes to enable precise control over dissolution cycles. Integrated with LED display and control panel to monitor and adjust parameters. Built with stainless steel for durability and long-term integrity. Our Dissolution Tester is equipped with six vessels and six poles arranged in a single line.

$5,309.00 $ 4424

Dissolution Tester LE-DS101 - Specifications

Speed Range 20 to 200 r/min
Speed Accuracy ±2 r/min
No of Vessels and Poles 6
Temperature Range RT to 45°C
Temperature Stability ±0.3°C
Time Range 1 to 999 min
Time Accuracy ± 0.1 min
Paddle Radial Run-Out ±0.5 mm
Basket Radial Run-Out ±1 mm
Material Stainless Steel (SUS 316L)
Power Consumption 1200 W
Power Supply 220 V/50 HZ or 110 V/60 HZ
Dimension 960 × 320 × 480 mm
Weight 80 Kgs (Approx.)

Dissolution Tester LE-DS101 - Key Features

  • Benchtop Design supporting 1200 W power consumption
  • Magnetic Pump enabling RT to 45C temperature range
  • MPU-Controlled Parameters maintaining ±2 r/min speed accuracy
  • Easy Keystroke Operation achieving ±0.1 min time accuracy

Dissolution Tester LE-DS101 - Applications

FunctionImplementation
Pharmaceutical QC labs±0.3°C temperature stability ensures consistent test conditions
Clinical research settings20 to 200 r/min speed range accommodates varied testing protocols
Industrial material testing1 to 999 min time range supports extended dissolution studies
Quality control facilities±0.1 min time accuracy enables repeatable analytical results
Multi-sample laboratoriesSix vessels and poles allow parallel sample processing

Dissolution Tester LE-DS101 - Catalog

Dissolution Tester LE-DS101 Catalog

Dissolution Tester LE-DS101

Dissolution Tester LE-DS101

Dissolution Tester

Lab Expo Dissolution Tester units are configured for controlled release testing of solid dosage forms in pharmaceutical workflows. The range includes systems operating at 20 to 200 r/min with speed accuracy of ±2 r/min and six-vessel configurations for parallel sample processing. Units are arranged to maintain consistent agitation and media interaction, supporting dissolution profiling in quality control, formulation development, and batch evaluation environments requiring repeatable test conditions.
