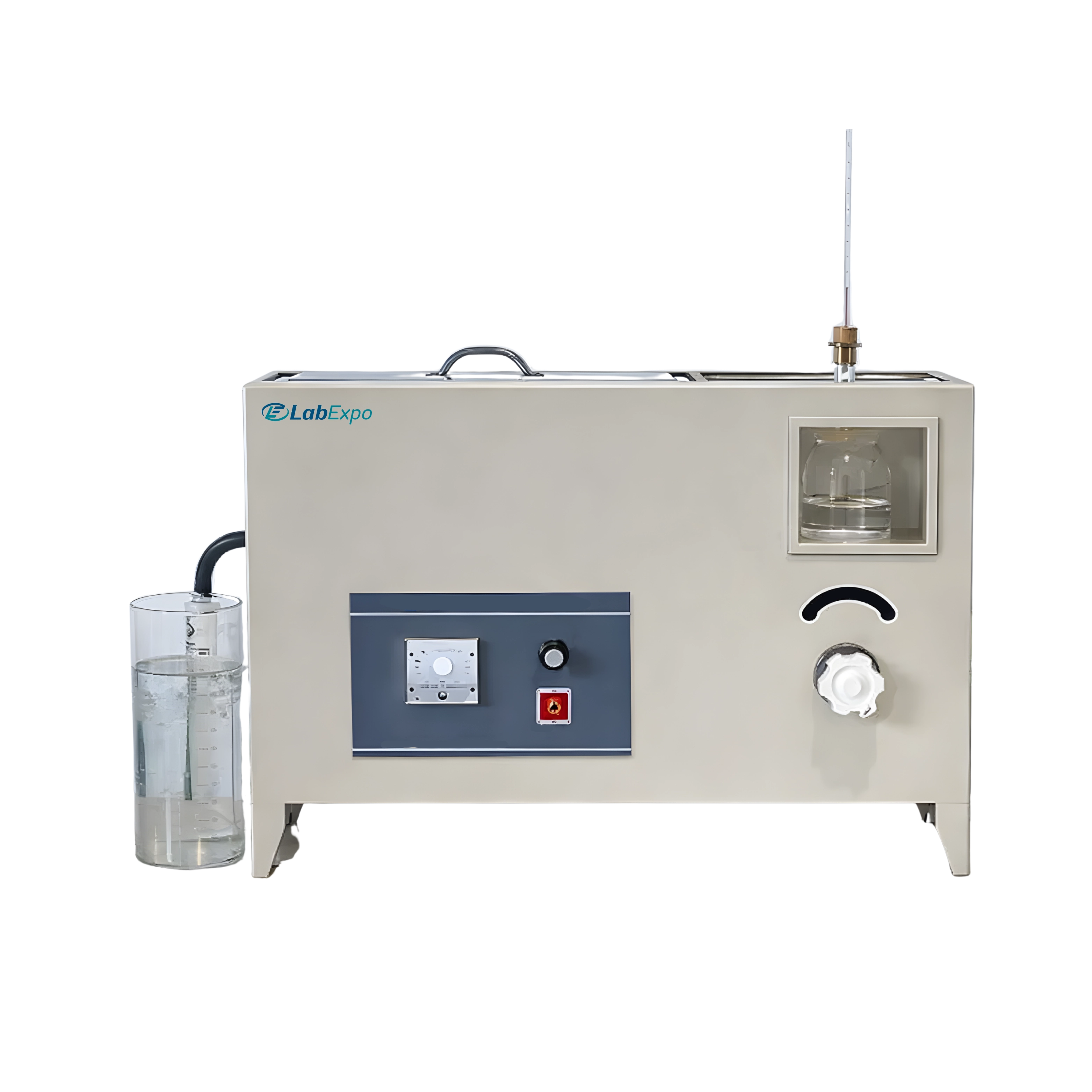

Lab Expo Distillation Tester 52-DTT100 is automated and can withstand a very high temperature. It is designed according to “Test Methods for Distillation Characteristics of Petroleum Products” as per ASTM D86.
$2,450.00 $ 2042
| Graduated flasks | 10 ml and 100 ml |
| Scale division of graduated flask | 10 ml is 0.1 ml and 100 ml is 1 ml |
| Ambient temperature | (-10) °C ~ 35 °C |
| Relative humidity | ≤ 85 % |
| Thermometer | 0 °C ~ 360 °C |
| Scale division | 1 °C |
| Inner diameter of electric furnace | Ф50 mm, Ф30 mm and with a gap |
| Outer diameter of electric furnace | Ф105 mm |
| Refrigeration tube | Made of copper tube of ф16 × 1 |
| Angle between refrigeration tube and water level | 15° |
| Length of refrigeration tube | 555 ± 3 mm |
| Size of refrigeration bath | 180 x 100 x 150 mm |
| Ball diameter of flask | Ф69 ± 1 mm |
| Neck diameter of flask | Ф16 ± 1 mm |
| Angle between branch tube and neck | 75° ± 3° |
| Dimension | 790 x 360 x 710 mm |
| Heating power system | 1000 W / 220 V |
| Total power consumption | ≤ 1100 W |
| Power supply | AC 220 V ± 10 %, 50 Hz |
Function Implementation Petroleum testing labs 1000 W heating power enables controlled fuel distillation analysis Quality control facilities Ф50 mm furnace diameter supports standard sample processing Research laboratories 360 °C thermometer range accommodates diverse compound testing Industrial workflows ±1°C scale division ensures precise measurement repeatability Educational institutions bath size fits standard teaching lab setups
Lab Expo Distillation Tester units are configured for boiling range and volatility determination across petroleum, solvent, and chemical testing workflows. The range includes standard, low-temperature, vacuum, and double-unit configurations with operating temperatures from -10 °C to 500 °C and flask capacities up to 1000 ml. Systems integrate controlled heating, condensation, and graduated collection assemblies for repeatable separation analysis. Suitable for refinery labs, fuel evaluation, and quality control environments requiring regulated distillation testing procedures.
