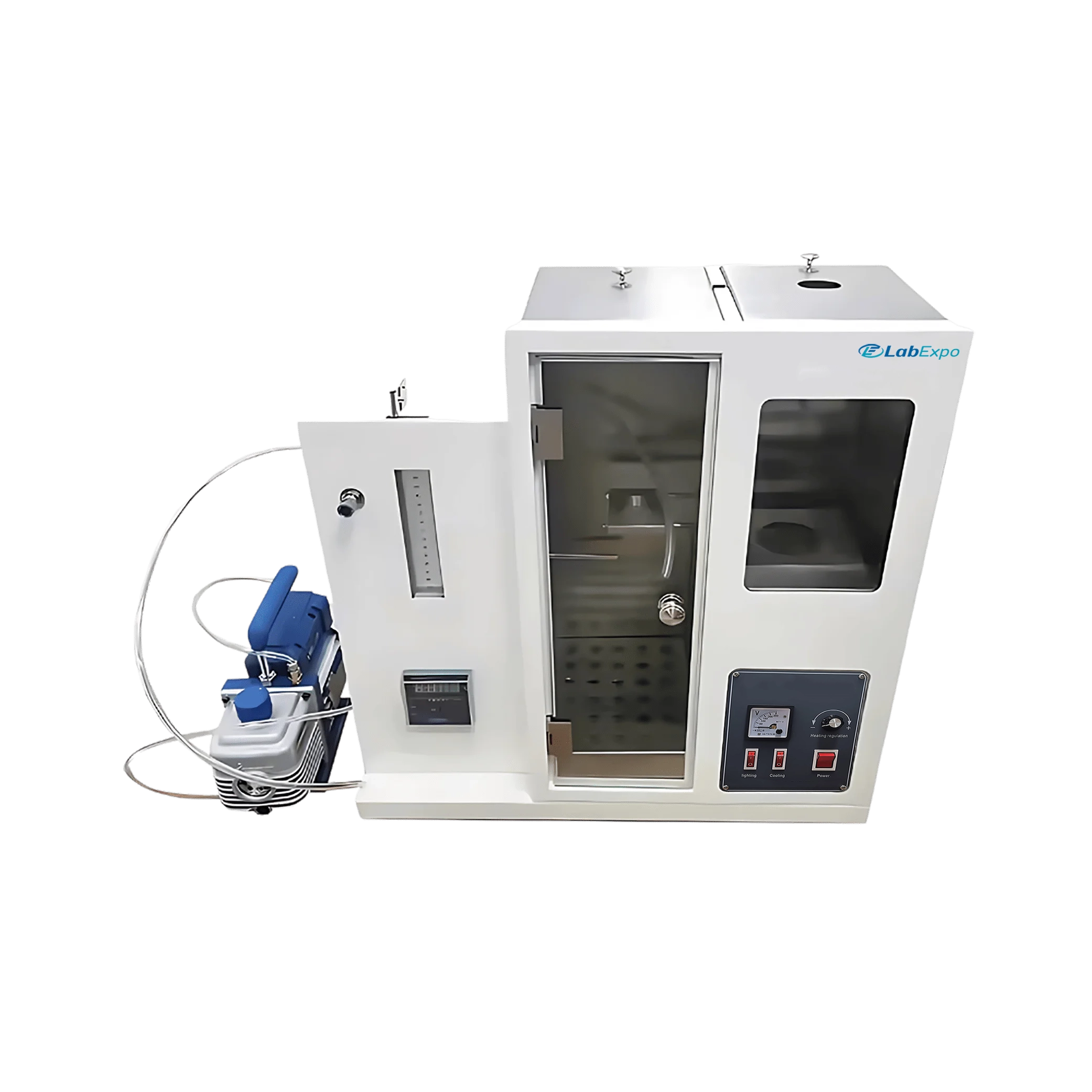

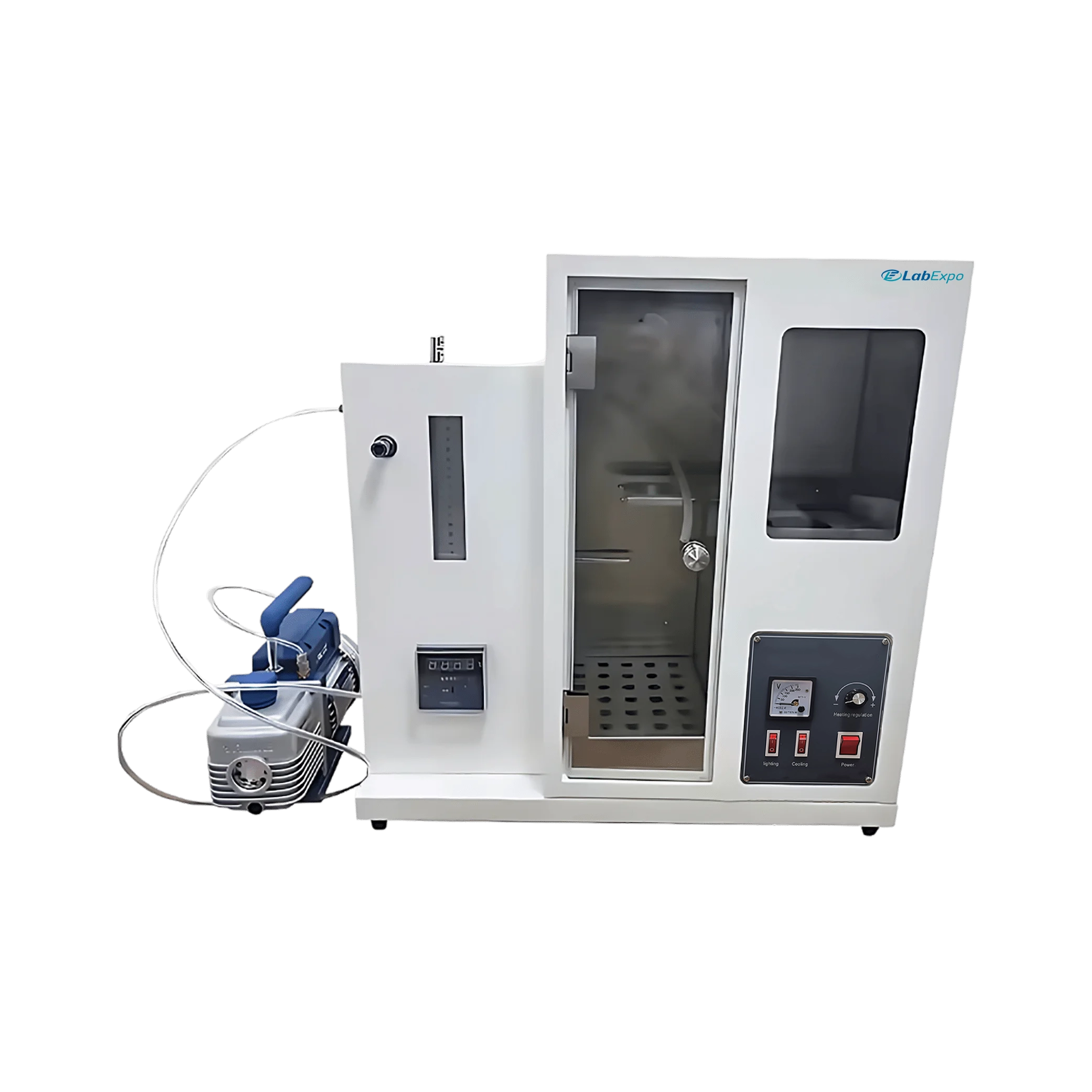

Vacuum Distillation Tester 52-DTT103 is specially designed for determining petroleum products with high viscosity. It is crafted and made as per the “Test Methods for Distillation Characteristics of High Boiling Point Petroleum Products at Reduced Pressure”.
$8,164.00
$4,082.00
Specifications
| Ambient temperature | 5 °C ~ 35 ℃ |
| Relative humidity | ≤ 85 % |
| Cubage of buffer vessel | 1000 ml |
| Max. Residual pressure | ≤ 2 mm Hg |
| Temperature controlling accuracy | ± 1 ℃ |
| Temperature range air bath | Ambient temperature ~ 100 ℃ adjustable |
| Heating power for distillation flask | 1000 W |
| Heating power for receiving flask | 350 W |
| Power supply | AC 220 V, 50 Hz |
Features
Applications
1.What is a Distillation Tester used for?
A Distillation Tester is used to evaluate the distillation characteristics of liquids such as fuels, solvents and other petroleum products to determine their boiling range and composition.
2.What is the role of automatic temperature control in a Distillation Tester?
Automatic temperature control ensures precise heating and consistent thermal conditions throughout the distillation process, minimizing errors and improving repeatability.
3.What is over-temperature protection in a Distillation Tester?
Over-temperature protection prevents the system from exceeding safe operating temperatures by automatically regulating the heating system or shutting it down if limits are breached.
4.How does automatic shutdown contribute to safety?
Automatic shutdown ensures the unit powers off or enters a safe mode if abnormal conditions are detected, such as excessive temperature, hardware malfunction or operator error minimizing the risk of fire or damage.
5.Why is an efficient cooling system important in distillation testing?
Efficient cooling accelerates the condensation of vaporized components, shortens the test cycle and ensures accurate measurement of distillate volumes without loss or leftover fraction.
