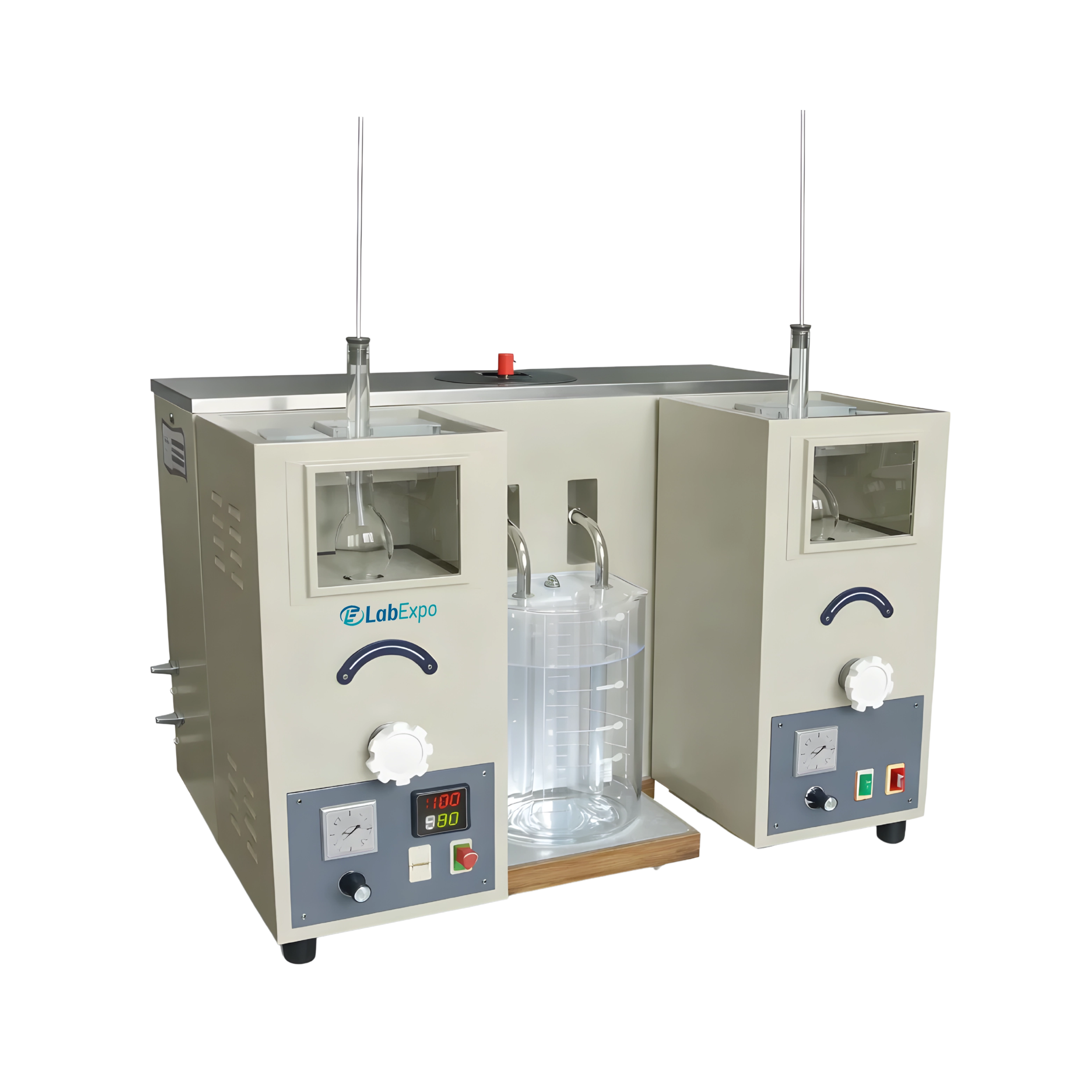

Lab Expo Distillation Tester (Double Units) 52-DTT105 performs precise distillation analysis of petroleum products with dual heating systems at 1000 W × 2, maintaining temperature control within ±0.5 °C across ranges up to 400 ℃ using calibrated thermometers. Equipped with two graduated flasks (125 ml and 100 ml), inner furnace diameters of φ32 mm and φ38 mm, and a scale division of 1 ml, it supports accurate fraction collection under controlled conditions (≤85% RH, ≤35°C ambient). Total power consumption remains ≤2500 W on AC 220 V ±10%, ensuring stable operation in laboratory environments for quality control testing of natural gasoline, jet fuels, solvents, and similar distillates.
$6,403.00 $ 5336
| Graduated flasks | 100 ml |
| Scale division of graduated flask | 1ml |
| Distillation flask | 125 ml |
| Ambient temperature | ≤ 35 °C |
| Relative humidity | ≤ 85 % |
| Temperature controlling accuracy | ± 0.5 °C |
| Temperature range air bath | Room temperature+ 10 °C ~ 60 °C |
| Thermometer | (-2 )°C ~ 300 ℃ and (-2) °C ~ 400 ℃ |
| Inner diameter of electric furnace | φ32 mm, φ38 mm |
| Outer diameter of electric furnace | φ50 mm |
| Dimension | 830 x 610 x 870 mm |
| Heating power system | 1000 W × 2 |
| Total power consumption | ≤ 2500 W |
| Power supply | AC 220 V ± 10 %, 50 Hz |
Function Implementation Quality control labs ±0.5 °C temperature controlling accuracy ensures precise distillation monitoring Petroleum testing facilities Room temperature +10 °C to 60 °C air bath range supports sample preparation workflows Clinical research labs 100 ml graduated flasks with 1ml scale division enable accurate volume measurement Industrial quality assurance Dual 1000W heating systems provide controlled thermal regulation for distillation processes Educational laboratories ≤2500 W total power consumption allows safe operation within standard lab electrical limits
Lab Expo Distillation Tester units are configured for boiling range and volatility determination across petroleum, solvent, and chemical testing workflows. The range includes standard, low-temperature, vacuum, and double-unit configurations with operating temperatures from -10 °C to 500 °C and flask capacities up to 1000 ml. Systems integrate controlled heating, condensation, and graduated collection assemblies for repeatable separation analysis. Suitable for refinery labs, fuel evaluation, and quality control environments requiring regulated distillation testing procedures.
