Distillation Tester (Low Temperature) 52-DTT107

Distillation Tester (Low Temperature) 52-DTT107

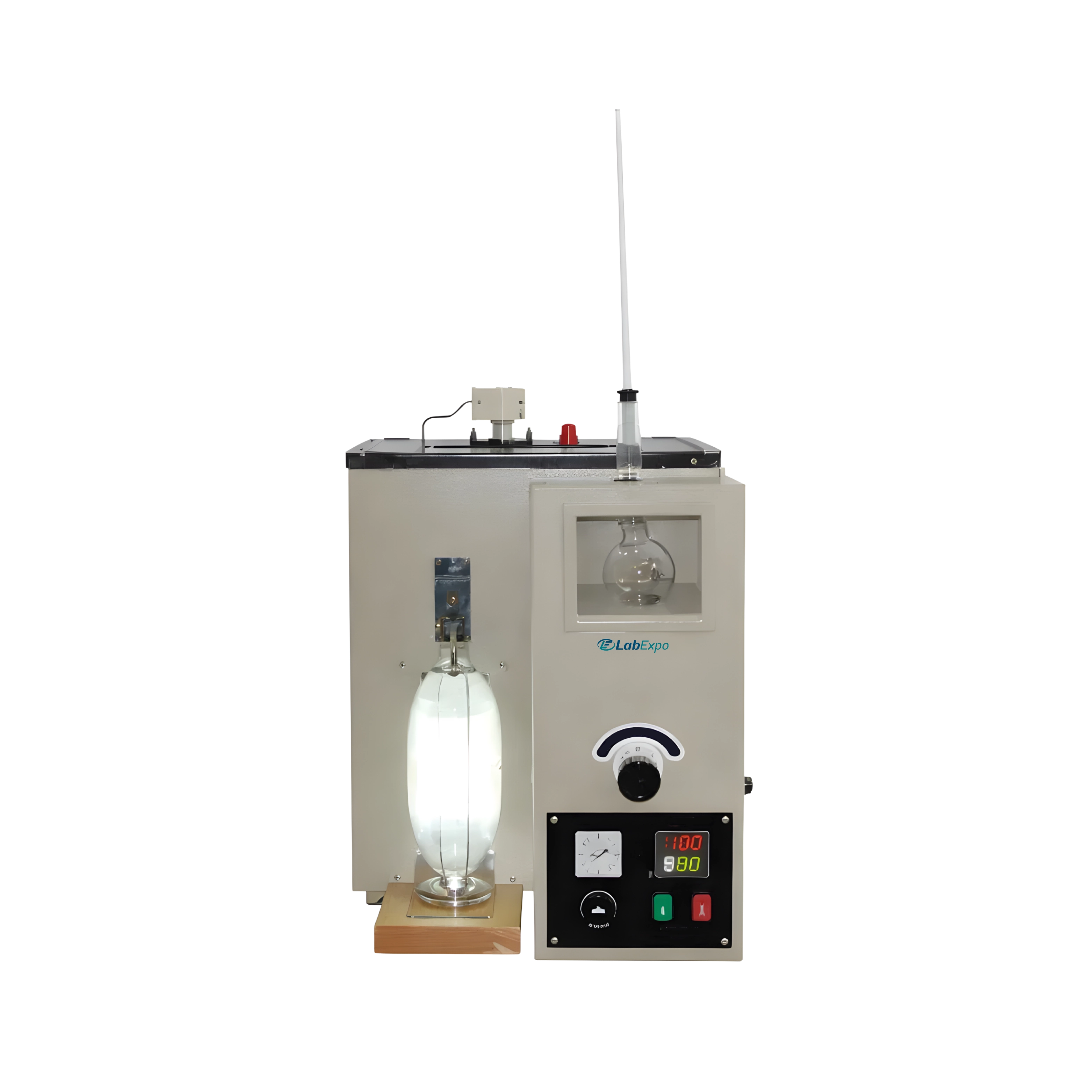

Lab Expo Distillation Tester (Low Temperature) 52-DTT107 is a single distillation system with advanced refrigerator compressor. It is devised according to “Test Methods for Distillation Characteristics of Petroleum Products at Barometric Pressure” as per ASTM D86, ideal for usage at laboratories.

$3,898.00 $ 3248

Distillation Tester (Low Temperature) 52-DTT107 - Specifications

Graduated flasks 100 ml
Distillation flask 125 mL
Ambient temperature ≤ 30 °C
Relative humidity ≤ 85 %
Temperature controlling range 0 °C ~ 60 °C
Temperature controlling accuracy ± 0.5 °C
Thermometer (-2 )°C ~ 300 ℃ and (-2) °C ~ 400 ℃
Division value 1°C
Scale division 1 ml
Inner diameter of electric furnace φ32 mm, φ38 mm
Outer diameter of electric furnace φ50 mm
Dimension 720 x 590 x 660 mm
Heating power system 1000 W
Total power consumption ≤ 2500 W
Power supply AC 220 V ± 10 %, 50 Hz

Distillation Tester (Low Temperature) 52-DTT107 - Key Features

  • Total immersion rod type thermometer with 1°C division value
  • LED digital display with real-time temperature monitoring
  • Digital temperature controller with PID control and 0.5C accuracy
  • Heater and refrigeration device with adjustable heating power
  • Stirrer mechanism for uniform sample agitation

Distillation Tester (Low Temperature) 52-DTT107 - Applications

FunctionImplementation
Quality control labs±0.5 °C accuracy ensures precise distillation endpoint detection
Clinical sample testing100 ml graduated flasks enable standardized volume measurement
Research laboratories0 °C ~ 60 °C temperature range supports low-boiling compound analysis
Industrial QC batches≤2500 W power consumption allows continuous operation under load
Educational training unitsφ32 mm and φ38 mm furnace diameters accommodate varied flask sizes

Distillation Tester (Low Temperature) 52-DTT107 - Catalog

Distillation Tester (Low Temperature) 52-DTT107 Catalog

Related Distillation Tester

Lab Expo Distillation Tester units are configured for boiling range and volatility determination across petroleum, solvent, and chemical testing workflows. The range includes standard, low-temperature, vacuum, and double-unit configurations with operating temperatures from -10 °C to 500 °C and flask capacities up to 1000 ml. Systems integrate controlled heating, condensation, and graduated collection assemblies for repeatable separation analysis. Suitable for refinery labs, fuel evaluation, and quality control environments requiring regulated distillation testing procedures.
