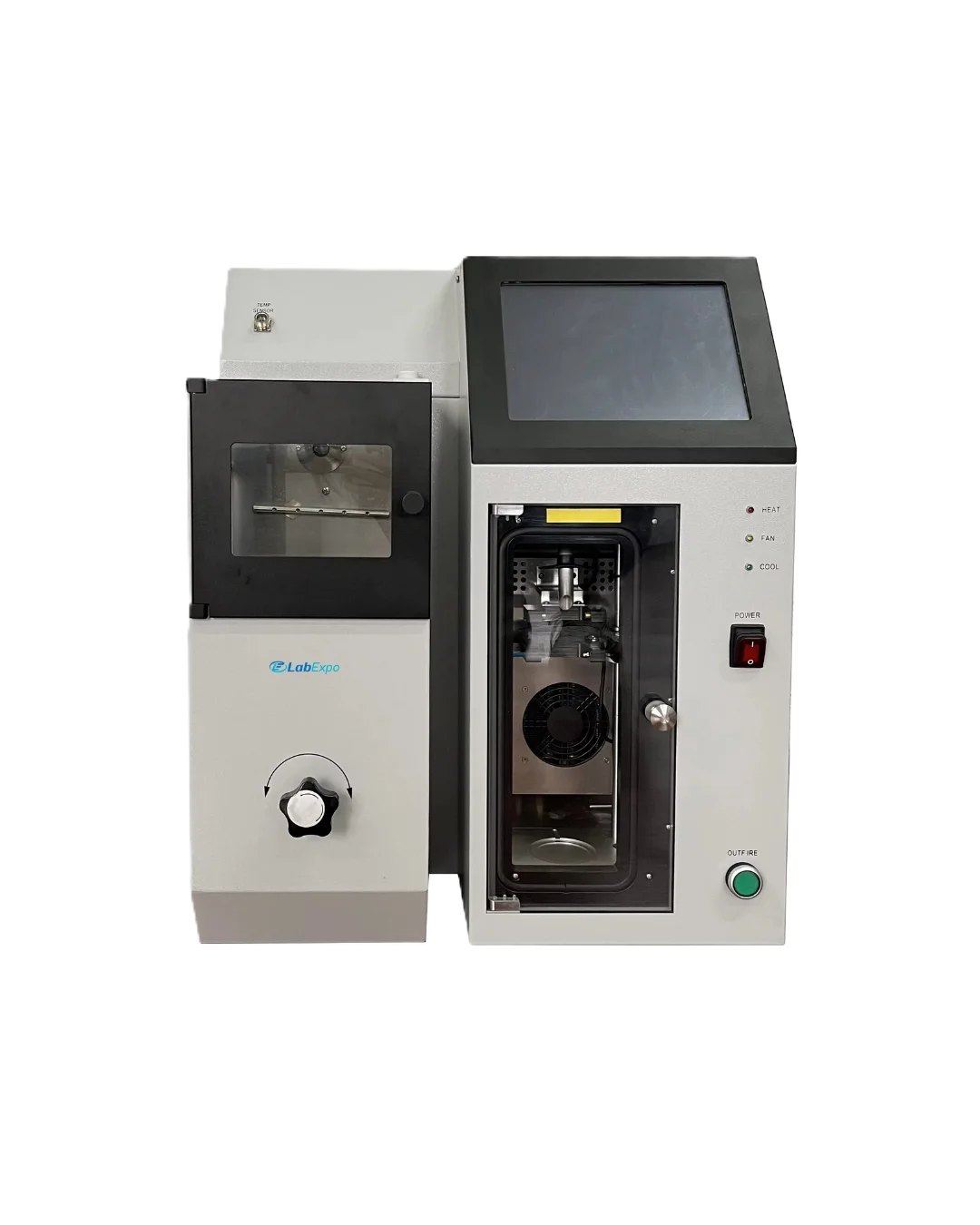

Distillation Tester LE-DTT101

Lab Expo Distillation Tester LE-DTT101 offers a steam temperature range from 0 to 400°C, enabling accurate analysis. It features a 2 KW heating system to ensure rapid and efficient thermal performance. Equipped with a 10-inch touch LCD that displays real-time temperature, volume, and process curves. Integrated fire alarm enhances operational safety by providing immediate alerts. Our Distillation Tester deliver efficient and reliable distillation analysis for laboratory and industrial applications.

$22,680.00 $ 18900

Distillation Tester LE-DTT101 - Specifications

Steam Temperature 0 to 400℃
Oven Temperature 0 to 500℃
Refrigeration Temperature 0 to 60℃
Temperature Measurement Accuracy ±0.1℃
Indoor Working Temperature 10 to 38°C (Recommend: 10 to 28℃)
Refrigeration Accuracy ±1℃
Volume Accuracy ±0.1 ml
Heating Power 2 KW
Cooling Power 0.5 KW
Humidity ≤70%
Power Supply AC220V ± 10% 50 Hz
Dimension 710 × 600 × 830 mm
Net Weight 60 Kg
Packaging Weight 80 Kg

Distillation Tester LE-DTT101 - Key Features

  • Microprocessor-based PID control with 0.1C resolution
  • Level tracking system with 0.1ml volume accuracy
  • Advanced refrigeration unit with 0.5KW cooling power
  • Automated heating control with 2KW heating element
  • Atmospheric pressure correction for steam temperature up to 400C
  • Automatic test termination at programmable time settings

Distillation Tester LE-DTT101 - Applications

FunctionImplementation
Quality control labs±0.1 ml volume accuracy ensures precise distillation measurements
Clinical testing facilitiesSteam temperature 0 to 400°C enables diverse sample analysis
Research laboratoriesOven temperature 0 to 500°C supports varied thermal processes
Industrial settingsCooling power 0.5 KW maintains stable refrigeration during operation
Educational institutionsRefrigeration accuracy ±1℃ ensures consistent experimental conditions

Distillation Tester LE-DTT101 - Catalog

Distillation Tester LE-DTT101 Catalog

Related Distillation Tester

Lab Expo Distillation Tester units are configured for boiling range and volatility determination across petroleum, solvent, and chemical testing workflows. The range includes standard, low-temperature, vacuum, and double-unit configurations with operating temperatures from -10 °C to 500 °C and flask capacities up to 1000 ml. Systems integrate controlled heating, condensation, and graduated collection assemblies for repeatable separation analysis. Suitable for refinery labs, fuel evaluation, and quality control environments requiring regulated distillation testing procedures.
