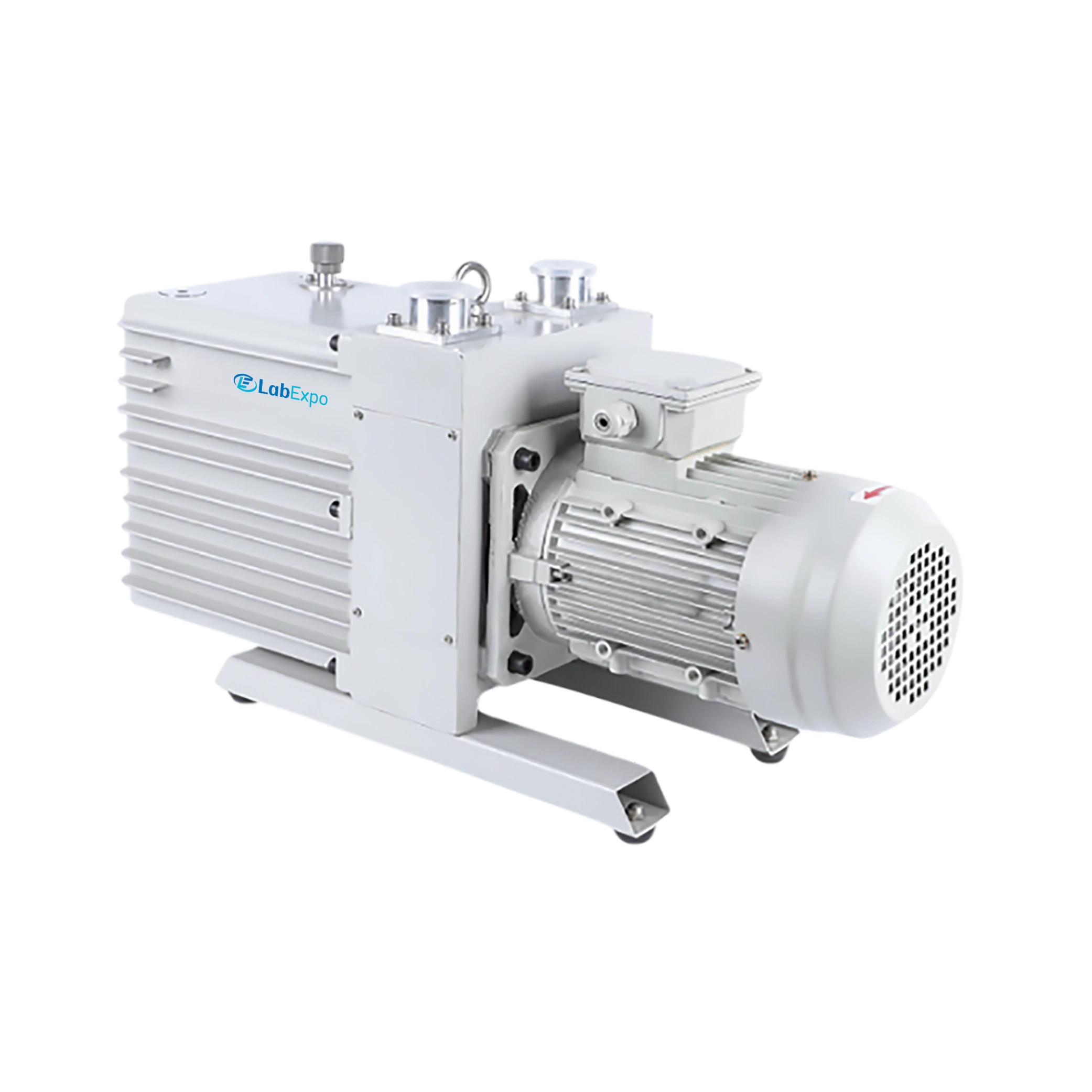

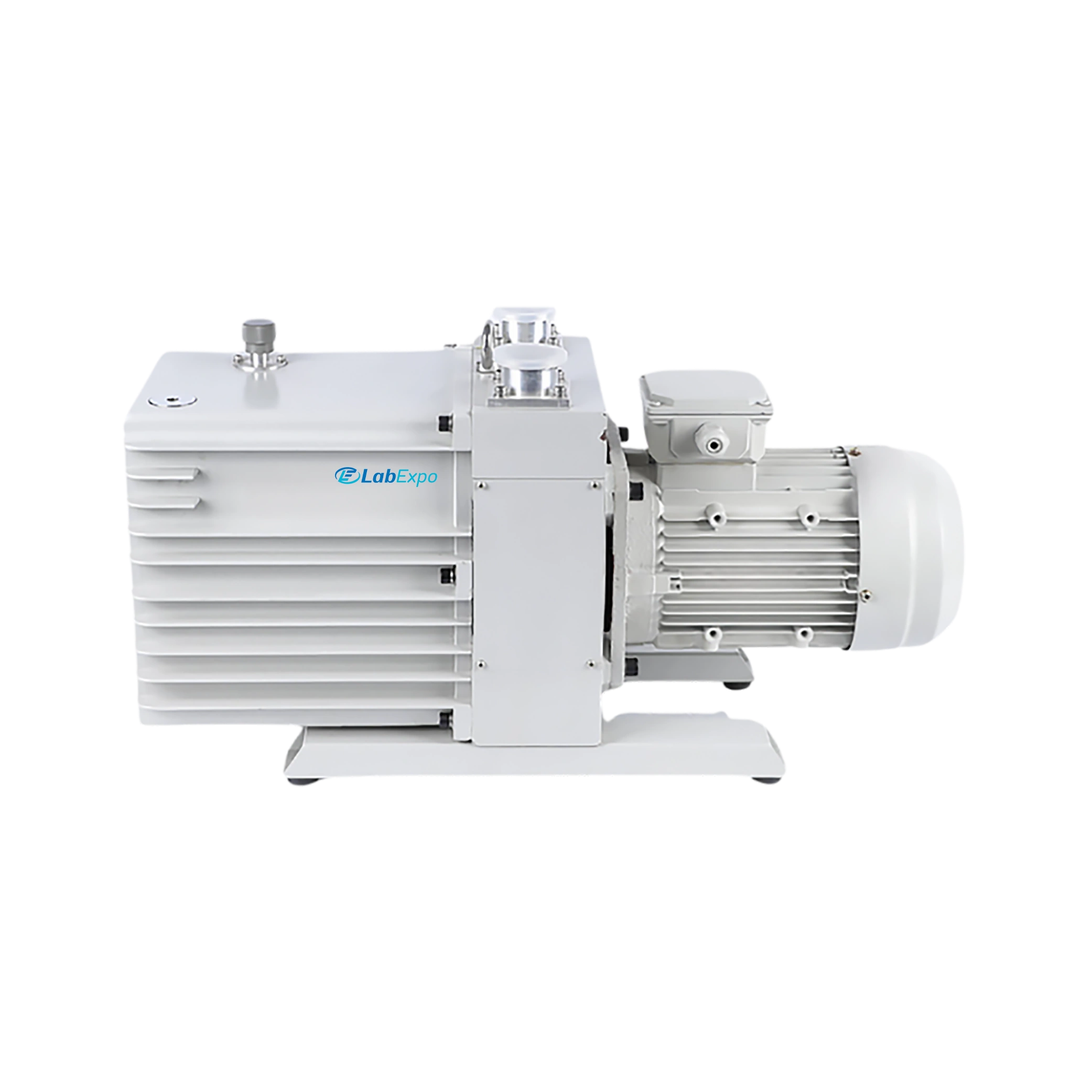

Lab Expo Double Stage Vacuum Pump LE-DVP107 provides a motor rotary speed of 1440 rpm, ensuring smooth and consistent operation. It is equipped with an oil capacity ranging from 20 to 25 liters, supporting extended running time and efficient lubrication. Built in with advanced sealing mechanisms to prevent backflow. Our Double Stage Vacuum Pump provides high flow rates delivering strong and efficient evacuation performance.
$8,585.00 $ 7154
| Pumping Speed | 160 m³/h |
| Ultimate Pressure | ≤ 2 Pa (Gas ballast on) |
| Maximum Outlet Pressure | 0.05 MPa |
| Motor Rotary Speed | 1440 rpm |
| Noise | 75 dB |
| Oil Capacity | 20 to 25 L |
| Inlet | VG80 |
| Outlet | VG50 |
| Power Supply | 380 V, 50 Hz |
| Dimension | 127 × 66 × 72 mm |
| Net Weight | 210 kg |
Function Implementation Laboratory vacuum systems 160 m³/h supports efficient gas evacuation Industrial drying processes ≤ 2 Pa ultimate pressure enables deep vacuum conditions Pharmaceutical filtration VG80 inlet accommodates standard tubing connections Chemical processing plants 20 to 25 L oil capacity allows extended operational cycles Quality control testing 1440 rpm motor speed ensures stable pump performance
Lab Expo Double Stage Vacuum Pump delivers precise, stable vacuum generation with dual-stage compression for enhanced depth and consistent performance. As a double stage pump, it provides controlled air removal for freeze drying, solvent filtration, refrigeration, and other vacuum-dependent workflows. Oil-sealed build, thermal protection, and durable design ensure precise operation, long service life, and steady vacuum levels across laboratory, industrial, and research applications.
