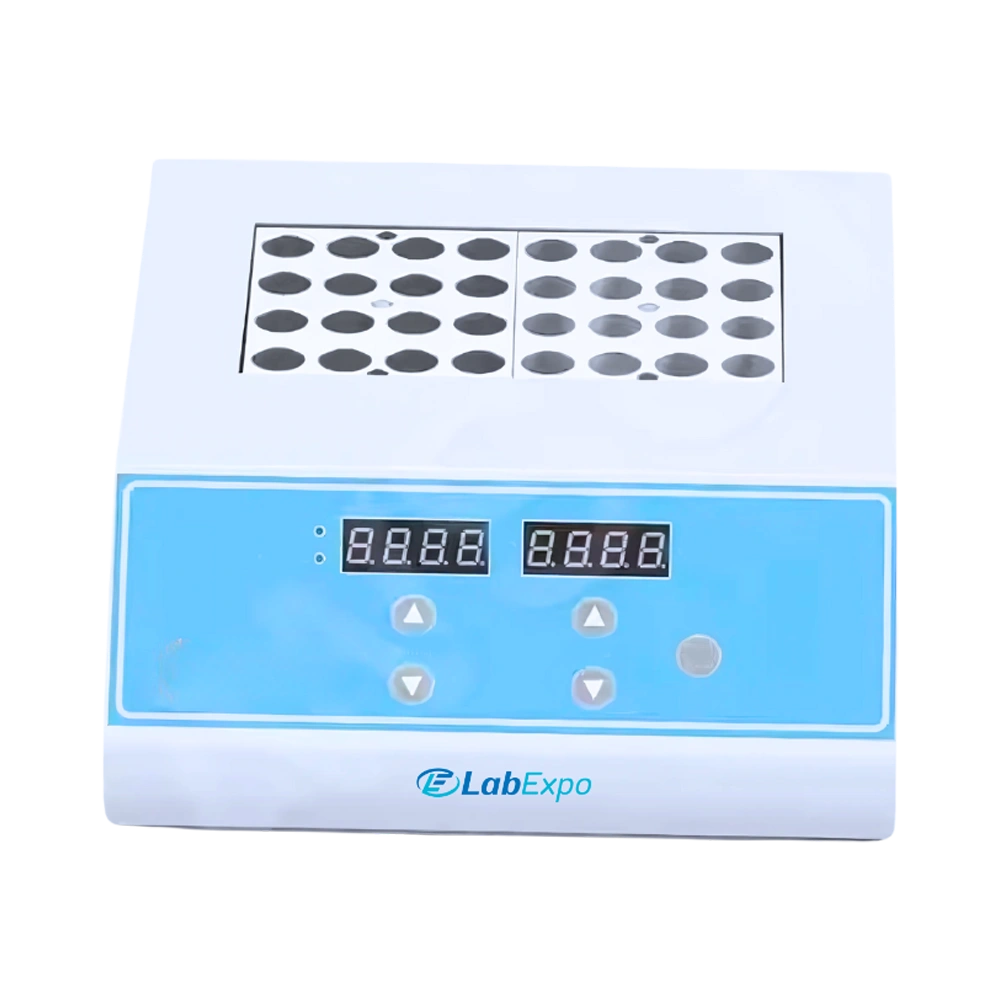

Dry Bath LE-DB201 offers a temperature range of RT to 160°C, providing fast and even heating with high-purity aluminium blocks. It offers advanced microcomputer control, real-time thermal display, and countdown functionality. Equipped with fast heating, simple controls, and interchangeable blocks for flexible operation. Our Dry Bath features easily replaceable blocks for quick cleaning and setup.
$1,666.00 $ 1388
| Temperature Range | RT. to 160°C |
| Temperature Accuracy | ±0.5℃ (@40℃), ±1℃ (@120℃) |
| Temperature Uniformity | ±0.5℃ |
| Display Accuracy | 0.1℃ |
| Time Range | 1 to 99 h59min |
| Heating Time | ≤15 min (from 25℃ to 160℃) |
| Block Quantity | 1 |
| Power Consumption | 300 Watt |
| Power Supply | AC220V or AC110V, 50/60Hz |
| Dimension | 260 × 220 × 100 mm |
| Weight | 5.0 kg |
Function Implementation Research labs 160°C temperature range enables high-temperature experiments Clinical testing ±0.5℃ temperature uniformity supports precise thermal control Industrial processes 300 Watt power consumption sustains continuous operation Quality control 1 to 99 h59min time range allows for flexible testing schedules Education institutions ≤15 min heating time from 25℃ to 160℃ facilitates rapid experimentation
Block – 6mm × 48
Block – 7mm × 48
Block – 10mm × 24
Block – 12mm × 24
Block – 13mm × 24
Block – 15mm × 16
Block – 16mm × 16
Block – 19mm × 12
Block – 20mm × 12
Block – 26mm × 8
Block – 28mm × 4
Block – 40mm × 3
Block – 0.2ml × 48
Block – 0.5ml × 48
Block – 1.5ml × 24
Block – 2.0ml × 24
1: What is the heating capacity of the LE-DB201?
The unit supports a temperature range from RT to 160°C, ensuring suitability for diverse laboratory applications.
2: How accurate is the temperature regulation?
These dry baths provide ±0.5°C accuracy at 40°C and ±1°C at 120°C, maintaining reliable heating conditions.
3: Can the blocks be replaced or customized?
They are designed with easily interchangeable high-purity aluminium blocks, enabling quick cleaning and flexible use.
4: What safety features are integrated in the system?
Our Dry Bath includes over-temperature protection and automatic diagnostics, ensuring safe and stable operation.
5: Why is this model preferred in research and clinical labs?
The LE-DB201 is valued for its fast heating, real-time thermal display, and simple control system, making it efficient and user-friendly.
6: What is a Dry Bath Incubator used for?
A Dry Bath Incubator is used to uniformly heat samples in a laboratory setting, commonly for applications like enzyme reactions, DNA denaturation and cell culture incubation.
7: What is the purpose of the calibration screw on a Dry Bath Incubator?
The calibration screw allows for fine-tuning the temperature setting, ensuring that the actual block temperature matches the displayed temperature, which is critical for sensitive experiments.
8: What is a PID controller and how does it benefit the Dry Bath Incubator?
A PID controller continuously monitors and adjusts the temperature to maintain a stable setpoint. This ensures high-precision heating with minimal fluctuation, which is essential for consistent experimental results.
9: How does the Dry Bath Incubator ensure uniform heat distribution?
Our system uses advanced heating elements and block design that evenly distribute heat across the entire surface, ensuring all sample wells reach and maintain the same temperature.
10: How easy is it to operate the Dry Bath Incubator?
Dry Bath Incubator are designed with a user-friendly interface and intuitive controls, allowing users to quickly set temperature, time and other parameters without complex navigation.
Lab Expo Dry Bath Incubators support precision heating workflows where uniform block temperature control and repeatable setpoints are required for sample processing. The system operates with PID-regulated dry heating and interchangeable blocks to maintain stable thermal conditions across multiple samples. Dual-zone temperature control enables independent block management, while digital controls and calibration adjustment ensure controlled operation and consistent heating outcomes for routine incubation and preparation tasks.
