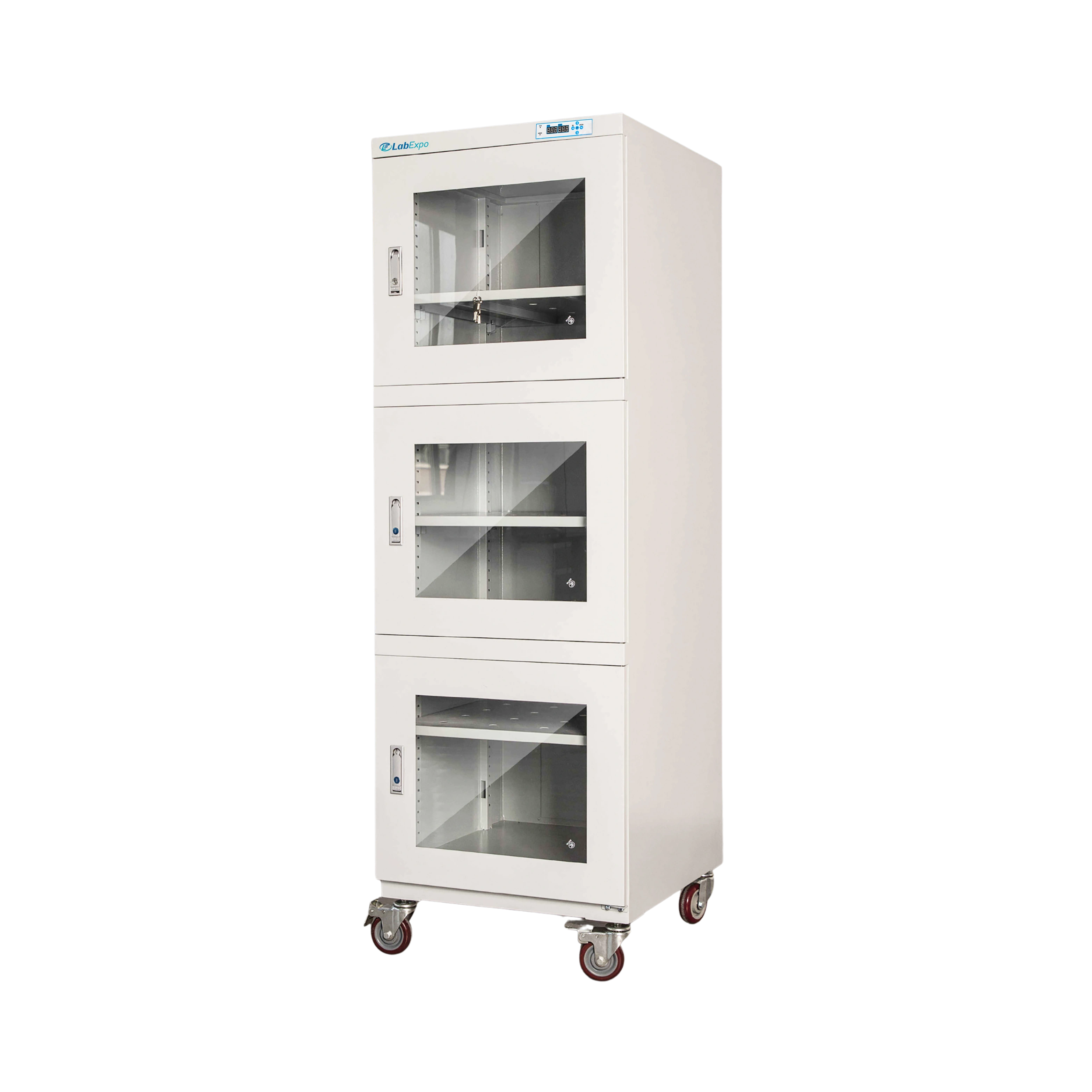

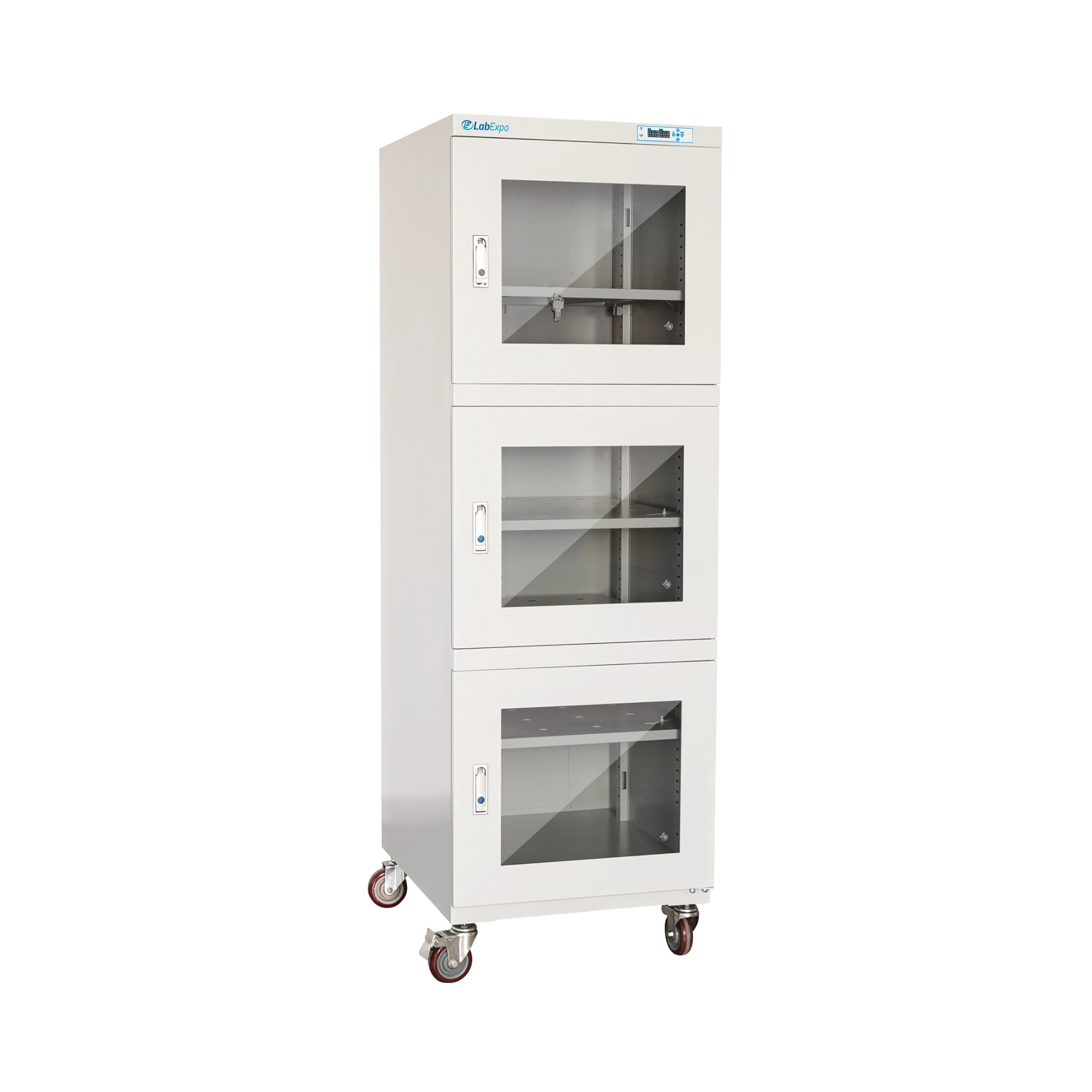

Dry Cabinet LE-DC107 maintains a 10 to 20% RH adjustable humidity range within a 718L storage capacity chamber. Equipped with a 3.2mm high-intensity tempered glass window for enhanced visibility and durability. Integrated with a flat-press zinc alloy lock offering airtight sealing and anti-theft functionality. Built-in memory function retains settings without the need for reset after power interruption. Our Dry Cabinet is ideal for storing electronic components, automotive parts, aerospace materials, and SMT devices requiring low-humidity environments.
$4,114.00 $ 3428
| Capacity | 718L |
| Humidity | 10 to 20% RH |
| Recovery Time | Maximum 30 min After Open Door 30 Seconds Then Closed |
| Ambient Temperature | 25℃ |
| No of Shelves | 5 |
| Maximum Load per Shelf | 80 Kg |
| Power Consumption | 8W |
| Interior Dimension | 596 × 682 × 1723mm |
| Exterior Dimension | 598 × 710 × 1910mm |
| Net Weight | 84 Kg |
| Gross Weight | 105 Kg |
Function Implementation High-volume electronic storage 10–20% RH environment minimizing moisture-induced failures SMT device protection Stable ultra-dry chamber for pre-assembly component control Automotive part preservation Controlled humidity reducing corrosion risk Aerospace material storage Airtight cabinet maintaining consistent low-RH conditions Industrial and R&D facilities 718 L organized storage with ≤30 min humidity recovery
1: Which locking system is used for security and airtight sealing?
It features a flat-press zinc alloy lock that ensures both airtight sealing and anti-theft protection.
2: Which capacity does the LE-DC107 offer for low-humidity storage?
It provides a spacious 718L chamber for storing large volumes of moisture-sensitive items.
3: Which type of glass enhances visibility while maintaining strength?
A 3.2mm high-intensity tempered glass window offers clear visibility and durability.
4: Which sensor technology ensures precise environmental control?
It is equipped with imported humidity and temperature sensors for accurate monitoring.
5: Which types of items benefit most from storage in this cabinet?
It is ideal for electronics, automotive parts, aerospace materials, and SMT devices requiring controlled humidity.
6: What is a Dry Cabinet and what is it used for?
A Dry Cabinet is a storage unit designed to maintain a low-humidity environment, ideal for preserving moisture-sensitive items such as laboratory samples.
7: How does a Dry Cabinet maintain precise relative humidity levels?
Dry Cabinets use advanced desiccant or dehumidification systems to absorb and remove moisture from the internal environment. These systems are controlled by digital sensors and microprocessors that constantly monitor and adjust RH levels.
8: How does the memory function improve operational ease?
It eliminates the need for manual reprogramming by automatically restoring previous settings when the cabinet is restarted, saving time and reducing human error.
9: What role do integrated sensors play in a Dry Cabinet?
Integrated sensors monitor environmental parameters such as relative humidity and temperature in real time, allowing the system to maintain optimal storage conditions for moisture-sensitive items.
10: Do these systems work in varying ambient conditions?
Yes, advanced dehumidification systems are designed to adapt to ambient temperature and humidity changes, maintaining internal relative humidity stability regardless of external fluctuations.
Lab Expo Dry Cabinet supports controlled low-humidity storage where moisture protection is critical for sensitive components and materials. This cabinet dry system operates with regulated dehumidification to maintain defined RH levels and prevent moisture-related degradation. High-sensitivity sensors provide real-time condition monitoring, while digital controls with memory functions ensure consistent settings. Robust sealing and durable build support uniform humidity control and stable, repeatable storage performance for continuous technical use.
