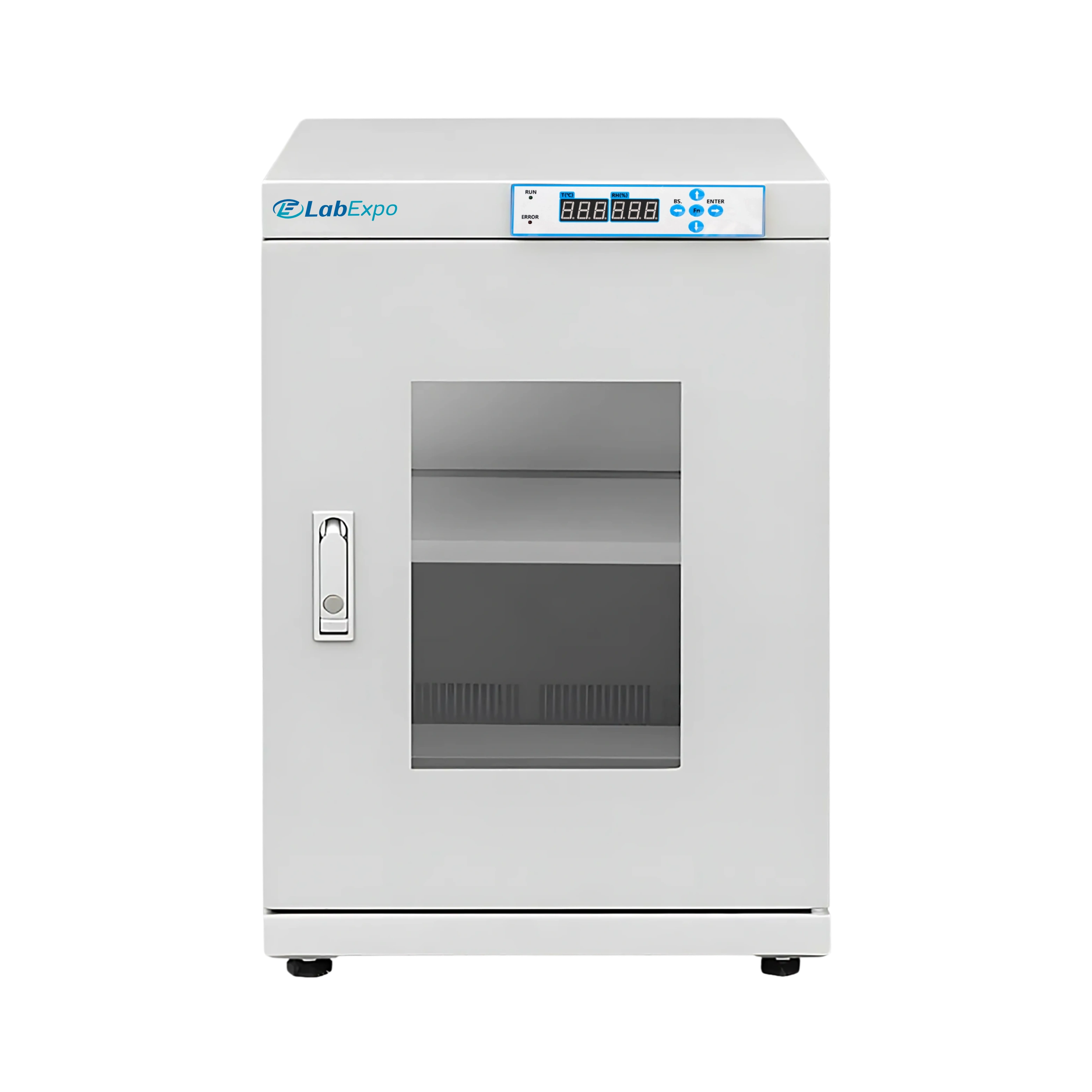

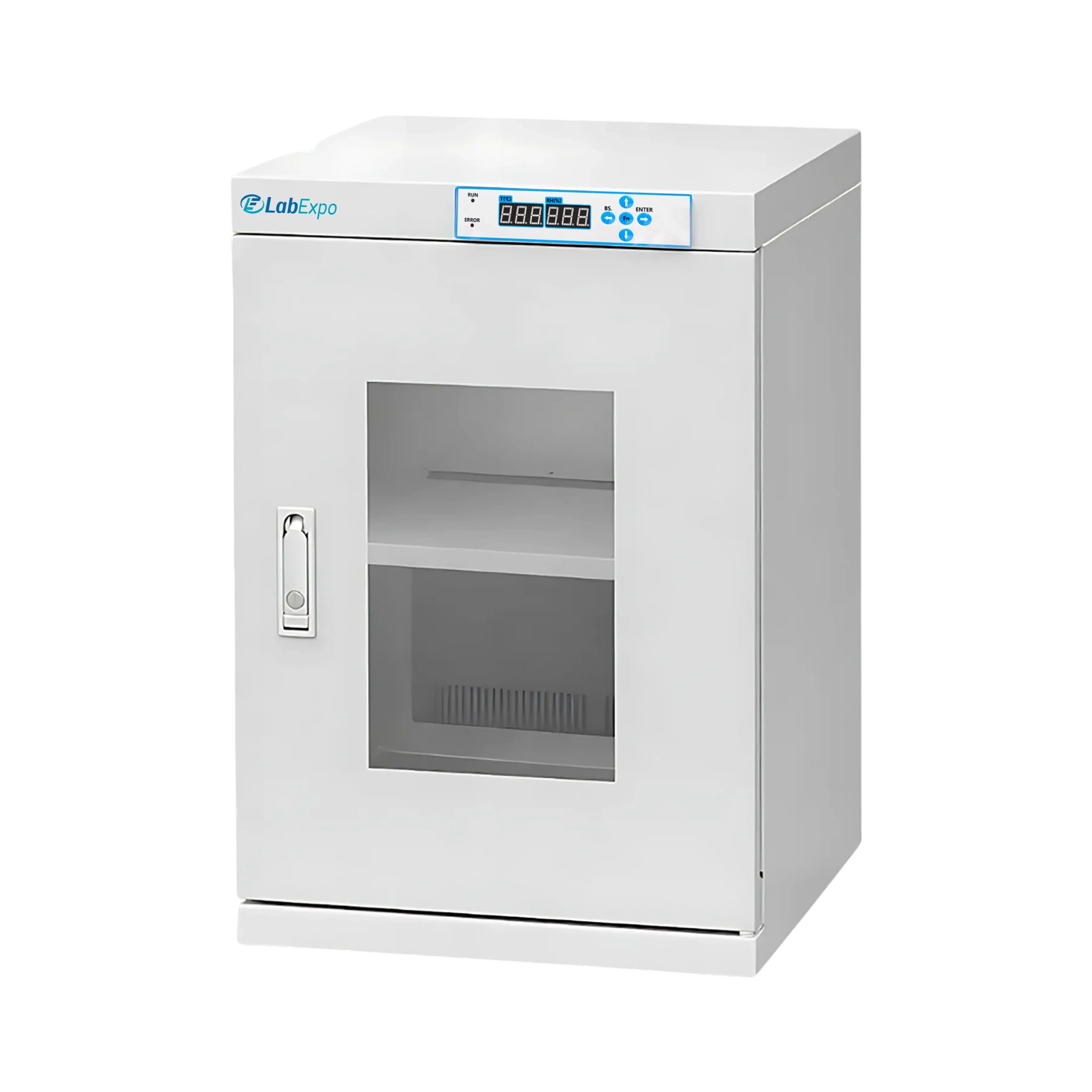

Dry Cabinet LE-DC109 provides a compact 98L capacity with humidity maintained below 10% RH automatically. It is equipped with a Switzerland- imported humidity and temperature sensor for high precision monitoring. Built-in memory function retains previous settings after power interruption. Incorporated with a 3.2mm high-intensity tempered glass window for clear visibility. Our Dry Cabinet is ideal for storing electronics, optical fibers, and microlenses.
$2,328.00 $ 1940
| Capacity | 98L |
| Humidity | Less Than 10% RH |
| Recovery Time | Maximum 30 min After Open Door 30 Seconds Then Closed. |
| Ambient Temperature | 25℃ |
| No of Shelves | 1 |
| Maximum Load per Shelf | 50 Kg |
| Power Consumption | 8W |
| Interior Dimension | 446 × 372 × 598mm |
| Exterior Dimension | 448 × 400 × 688mm |
| Net Weight | 20 Kg |
| Gross Weight | 31 Kg |
Function Implementation Electronic component protection <10% RH environment preventing moisture-induced defects Optical fiber storage Stable ultra-dry chamber reducing condensation risk Microlens preservation Controlled humidity minimizing surface degradation Semiconductor R&D use Compact cabinet supporting precision device storage Laboratory quality control ≤30 min humidity recovery after door operation
1: Which storage capacity does the LE-DC109 provide?
It has a compact 98L capacity, suitable for small-scale yet sensitive storage needs.
2: Which humidity level is maintained inside this cabinet?
The cabinet automatically maintains humidity below 10% RH for precise low-humidity storage.
3: Which monitoring system ensures accuracy?
A Switzerland-imported humidity and temperature sensor provides reliable, high-precision monitoring.
4: Which design feature enhances visibility and durability?
It is equipped with a 3.2mm high-intensity tempered glass window for clear viewing and strength.
5: Which applications benefit from using the LE-DC109?
It is ideal for storing electronics, optical fibers, and microlenses that require ultra-low humidity.
6: What is a Dry Cabinet and what is it used for?
A Dry Cabinet is a storage unit designed to maintain a low-humidity environment, ideal for preserving moisture-sensitive items such as laboratory samples.
7: How does a Dry Cabinet maintain precise relative humidity levels?
Dry Cabinets use advanced desiccant or dehumidification systems to absorb and remove moisture from the internal environment. These systems are controlled by digital sensors and microprocessors that constantly monitor and adjust RH levels.
8: How does the memory function improve operational ease?
It eliminates the need for manual reprogramming by automatically restoring previous settings when the cabinet is restarted, saving time and reducing human error.
9: What role do integrated sensors play in a Dry Cabinet?
Integrated sensors monitor environmental parameters such as relative humidity and temperature in real time, allowing the system to maintain optimal storage conditions for moisture-sensitive items.
10: Do these systems work in varying ambient conditions?
Yes, advanced dehumidification systems are designed to adapt to ambient temperature and humidity changes, maintaining internal relative humidity stability regardless of external fluctuations.
Lab Expo Dry Cabinet supports controlled low-humidity storage where moisture protection is critical for sensitive components and materials. This cabinet dry system operates with regulated dehumidification to maintain defined RH levels and prevent moisture-related degradation. High-sensitivity sensors provide real-time condition monitoring, while digital controls with memory functions ensure consistent settings. Robust sealing and durable build support uniform humidity control and stable, repeatable storage performance for continuous technical use.
