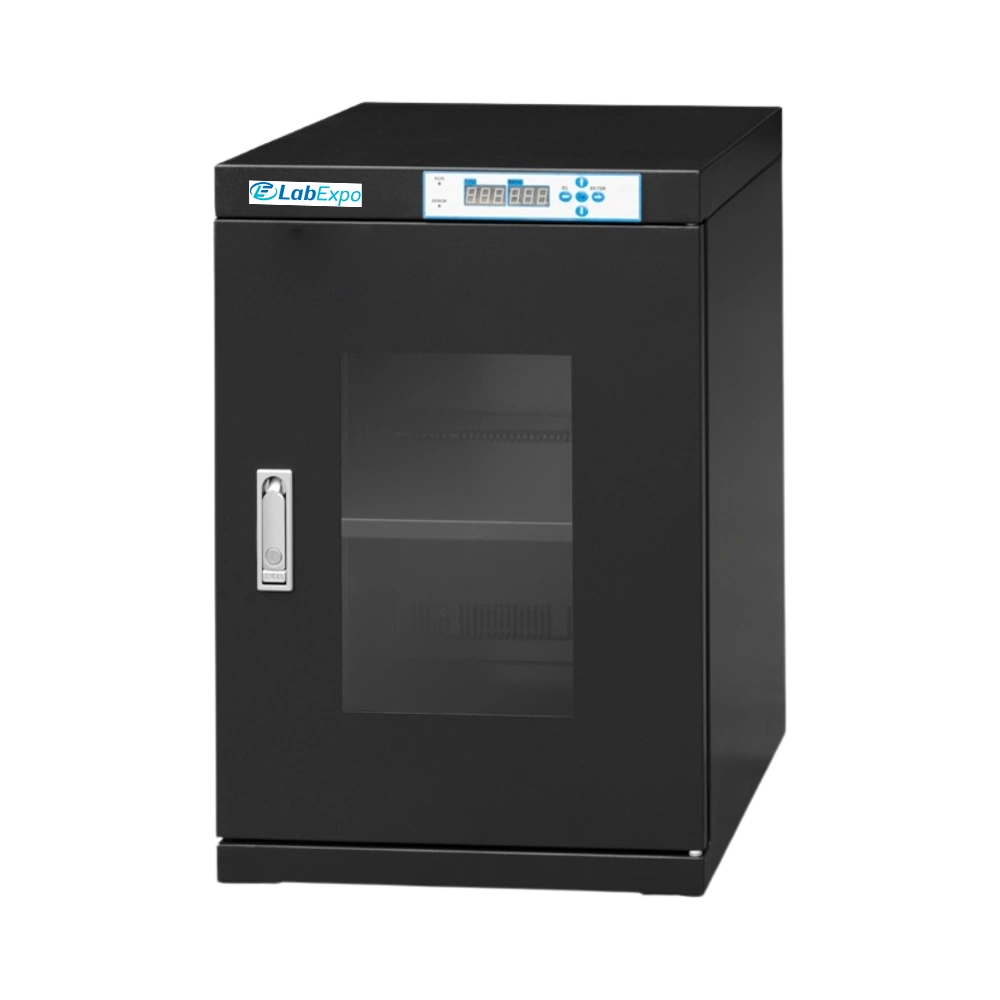

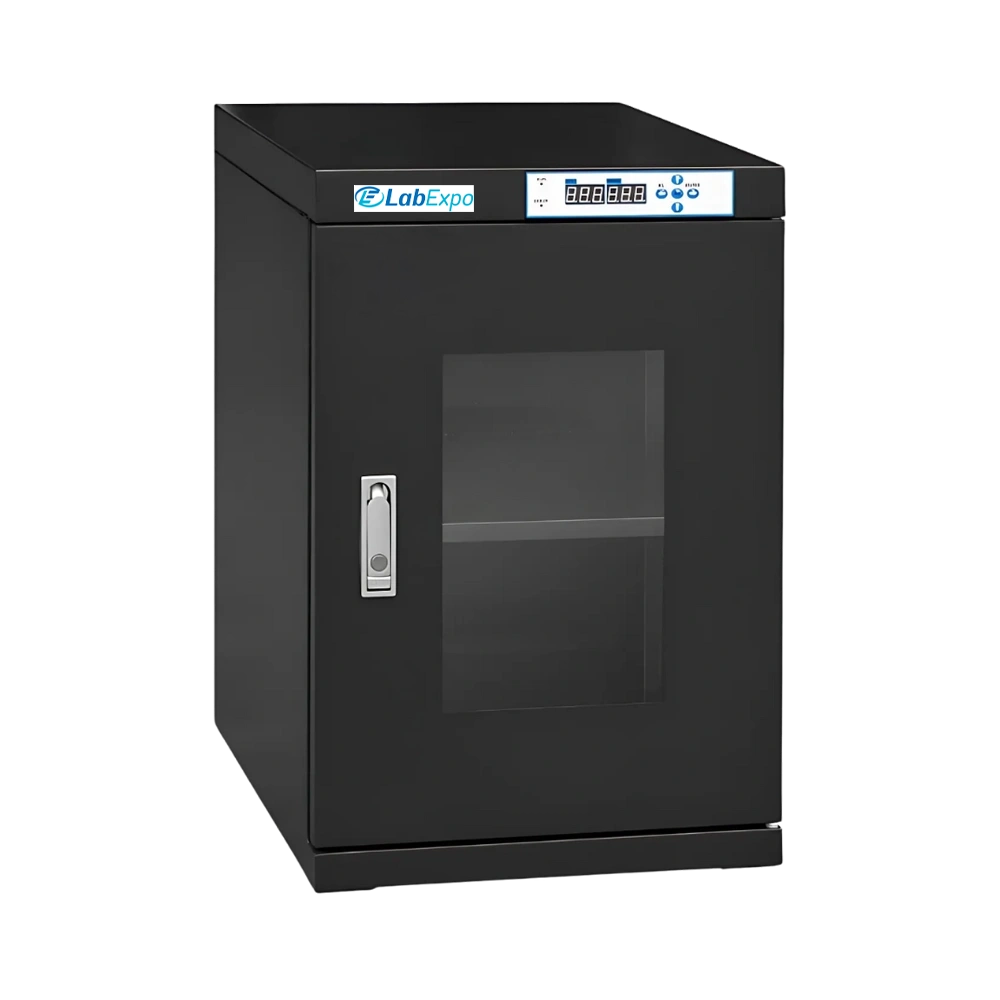

Dry Cabinet LE-DC208 is an ESD safe storage unit designed to provide ultra-low relative humidity control with a 98L capacity. Integrated with an adjustable dehumidifying system, it maintains humidity between 20% to 60% RH. Incorporated high-brightness LED controller ensures real-time RH monitoring with a calibration reminder. Built-in pressurized lock to minimize the possibility of moisture infiltration. Our Dry Cabinet is suitable to handle moisture-sensitive components including PCBs, nanofibers, and laboratory specimens.
$2,040.00 $ 1700
| Capacity | 98L |
| Humidity | 20% to 60% RH |
| ESD Type | Yes |
| Recovery Time | Maximum 30 min After Open Door 30 Seconds Then Closed |
| Ambient Temperature | 25℃ |
| No of Shelves | 1 |
| Maximum Load per Shelf | 50 Kg |
| Power Consumption | 8W |
| Interior Dimension | 446 × 372 × 598mm |
| Exterior Dimension | 448 × 400 × 688mm |
| Net Weight | 20 Kg |
| Gross Weight | 31 Kg |
Function Implementation PCB and IC storage Controlled RH environment reducing moisture-related assembly defects Nanofiber preservation Stable humidity chamber minimizing structural degradation Optical fiber protection Monitored storage preventing condensation damage Laboratory specimen handling Data-logged humidity control for research applications
Shelf
1: What kind of components are these cabinets best suited for?
These cabinets are designed for storing PCBs, nanofibers, optical fibers, integrated circuits, and other laboratory specimens that require ESD-safe and low-humidity environments.
2: How do their alarms support reliable operation?
Their built-in over-humidity and door-open alarms immediately notify users of any deviation, ensuring safe storage without risk of moisture infiltration.
3: Why are they preferred in electronics and research labs?
They combine humidity control, precise monitoring, and ESD protection, making them highly suitable for sensitive electronic and scientific applications.
4: How does it maintain stable humidity levels?
It integrates an adjustable dehumidifying system with multi-porous molecular sieves, ensuring consistent moisture control and excellent air-tightness.
5: What sets our ESD safe cabinet apart from standard dry storage units?
Our cabinet not only offers ultra-low humidity control but also ensures electrostatic discharge protection, enhanced monitoring, and advanced safety alarms.
6: What is a Dry Cabinet and what is it used for?
A Dry Cabinet is a storage unit designed to maintain a low-humidity environment, ideal for preserving moisture-sensitive items such as laboratory samples.
7: How does a Dry Cabinet maintain precise relative humidity levels?
Dry Cabinets use advanced desiccant or dehumidification systems to absorb and remove moisture from the internal environment. These systems are controlled by digital sensors and microprocessors that constantly monitor and adjust RH levels.
8: How does the memory function improve operational ease?
It eliminates the need for manual reprogramming by automatically restoring previous settings when the cabinet is restarted, saving time and reducing human error.
9: What role do integrated sensors play in a Dry Cabinet?
Integrated sensors monitor environmental parameters such as relative humidity and temperature in real time, allowing the system to maintain optimal storage conditions for moisture-sensitive items.
10: Do these systems work in varying ambient conditions?
Yes, advanced dehumidification systems are designed to adapt to ambient temperature and humidity changes, maintaining internal relative humidity stability regardless of external fluctuations.
Lab Expo Dry Cabinet supports controlled low-humidity storage where moisture protection is critical for sensitive components and materials. This cabinet dry system operates with regulated dehumidification to maintain defined RH levels and prevent moisture-related degradation. High-sensitivity sensors provide real-time condition monitoring, while digital controls with memory functions ensure consistent settings. Robust sealing and durable build support uniform humidity control and stable, repeatable storage performance for continuous technical use.
