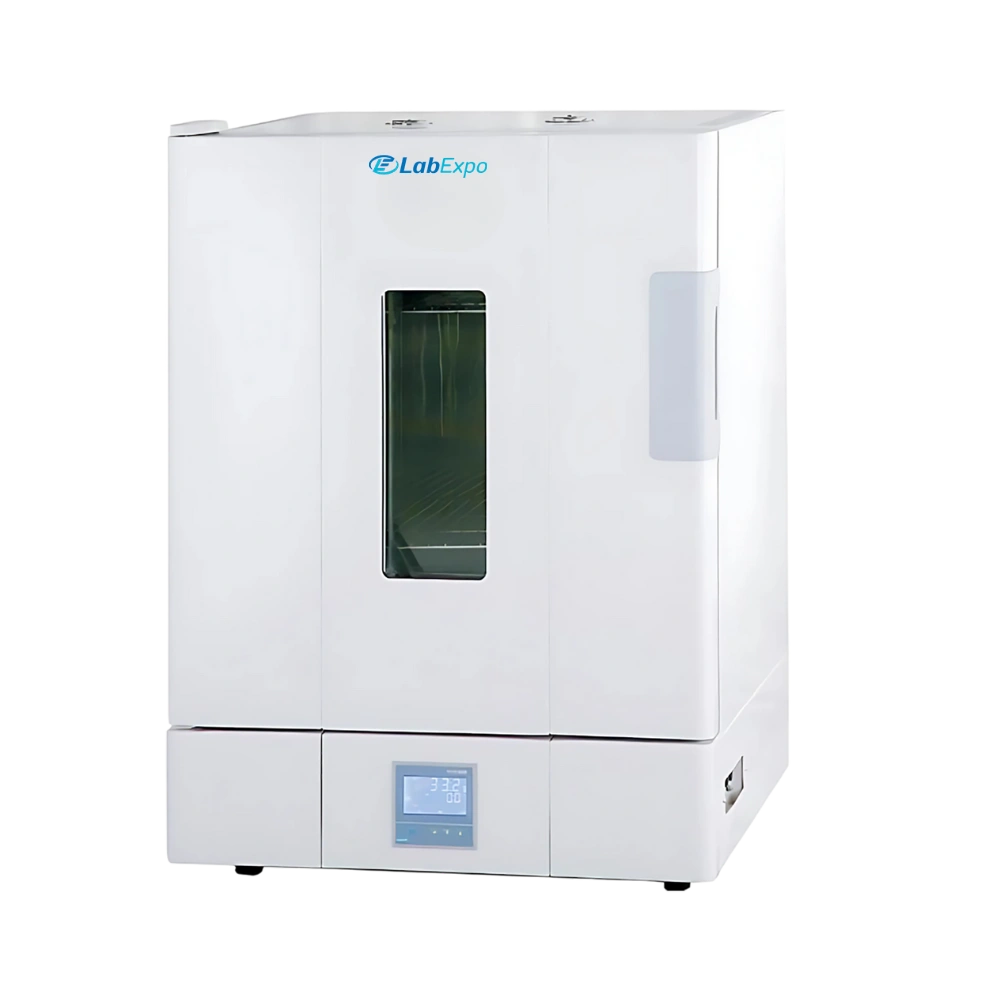

Drying Oven 150-DO302

Lab Expo Drying Oven 150-DO302 made up of polished stainless steel chamber and semi-circular arcs for easy cleaning. Equipped with microprocessor based PID controller with timing functions. The Oven has large LCD screen to display more data at the same time and the double layered glass observation window. It is used for sterilization process with controlled heating applications and uniform distribution of air temperature. It is more efficient and economical for users.

$4,128.00 $ 3440

Drying Oven 150-DO302 - Specifications

Chamber Volume 150L
Number of Shelves 3
Display Resolution 0.1℃
Temperature Range RT+10 to 250℃
Temperature Stability ±1℃
Temperature Uniformity ±2.5%
Timing Range 1 to 9999min
Interior Dimension (W×D×H) 500×360×800mm
Exterior Dimension (W×D×H) 645×640×1114mm
Power Consumption 2050W
Power 220V, 50HZ

Drying Oven 150-DO302 - Key Features

  • Polished stainless steel chamber with semicircular arcs for easy cleaning
  • Auto-controller of fan speed to prevent sample damage during operation
  • Microprocessor-based PID controller with 0.1C resolution and timing functions
  • Large LCD screen displaying real-time temperature and timing data simultaneously
  • Forced-air convection ensuring uniform heat distribution throughout chamber
  • Double-layer observation window providing clear internal process monitoring

Drying Oven 150-DO302 - Applications

FunctionImplementation
Sterilization processes±1℃ stability supports precise temperature control
Uniform heating applications±2.5% uniformity ensures consistent air distribution
Timed drying operations1 to 9999min range enables extended cycle programming
Multi-sample processing150L chamber accommodates batch material handling
Observation monitoringDouble-layered glass allows visual process tracking

Drying Oven 150-DO302 - Optional Accessories

Printer
Independent temperature-limiting alarm
RS485 connector and software

Drying Oven 150-DO302 - Catalog

Drying Oven 150-DO302 Catalog

Related Drying Oven

Lab Expo Drying Ovens are structured around forced-air convection architecture to deliver uniform, high-temperature processing under continuous duty cycles. This industrial drying oven maintains stable thermal distribution across large chamber volumes to support simultaneous sample drying and sterilization. Stainless steel interiors, over-temperature protection, secure door systems, and precise digital control ensure consistent heat treatment for industrial, research, and laboratory workflows.
