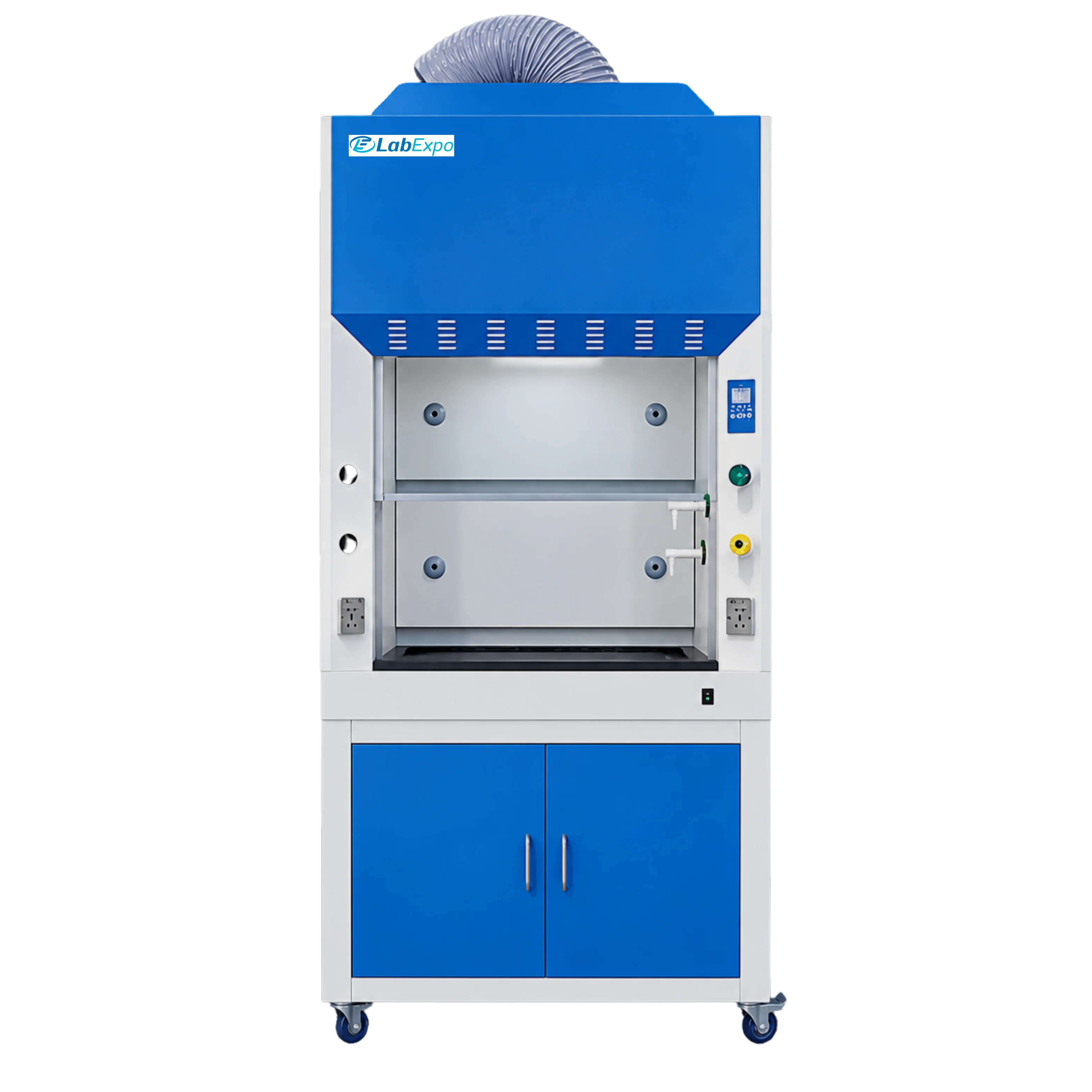

Ducted Fumehood 35-DTF102

Name: Ducted Fumehood 35-DTF102
Brand: Labexpo
SKU: 35-DTF102
Rating: 4.5 (780 reviews)

Ducted Fumehood 35-DTF102 manufactured by Lab Expo has a sash opening height of 520 mm and working height of 850 mm presenting safety and excellent performance features. It is the ducted type of fume hood that removes toxic gases from the outside of the working environment. The fumehood material is highly authentic and is resistant to acid and base having weak strength.

$3,350.00 $ 2792

Ducted Fumehood 35-DTF102 - Specifications

Exterior Size(W × D × H)	1540 x 800 x 2200 mm
Interior Size(W × D × H)	1320 x 670 x 730 mm
Maximum Opening	520 mm
Fluorescent Lamp	16 W × 1
Work Surface Height	850 mm
Exhaust Duct	PVC 4 meters, φ 300 mm
Noise	≤ 60 dB
Pipe Strap	1 pcs
Power Supply	220 V / 50 Hz; 220 V / 60 Hz; 110 V / 60 Hz
Power Consumption	500 W
Package Size(WxDxH)	1690 x 990 x 1690 mm
Gross Weight	350 kg

Ducted Fumehood 35-DTF102 - Key Features

Microprocessor control with digital interface
Digital LED display for real-time monitoring
UV lamp for sterilization with 16W output
Memory function retaining settings after power failure
Chemically resistant phenolic resin work surface

Ducted Fumehood 35-DTF102 - Applications

Function	Implementation
Research labs	500 W powers continuous operation
Clinical testing	850 mm work surface height enables ergonomic working
Industrial facilities	220 V / 50 Hz power supply supports global compatibility
Quality control labs	≤ 60 dB noise level minimizes disturbance
Pharmaceutical labs	4 meters PVC exhaust duct removes toxic gases efficiently

Ducted Fumehood 35-DTF102 - Standard Accessories

UV lamp × 2
Water tap × 1
Water sink × 1
,LED fluorescent lamp × 1
Base cabinet × 1
2 Waterproof sockets: 500 W
4 meters PVC exhaust duct × 1,Gas tap × 1, Pipe strap × 1

Ducted Fumehood 35-DTF102 - Optional Accessories

Carbon filter

Ducted Fumehood 35-DTF102 - Catalog

Ducted Fumehood 35-DTF102 Catalog
