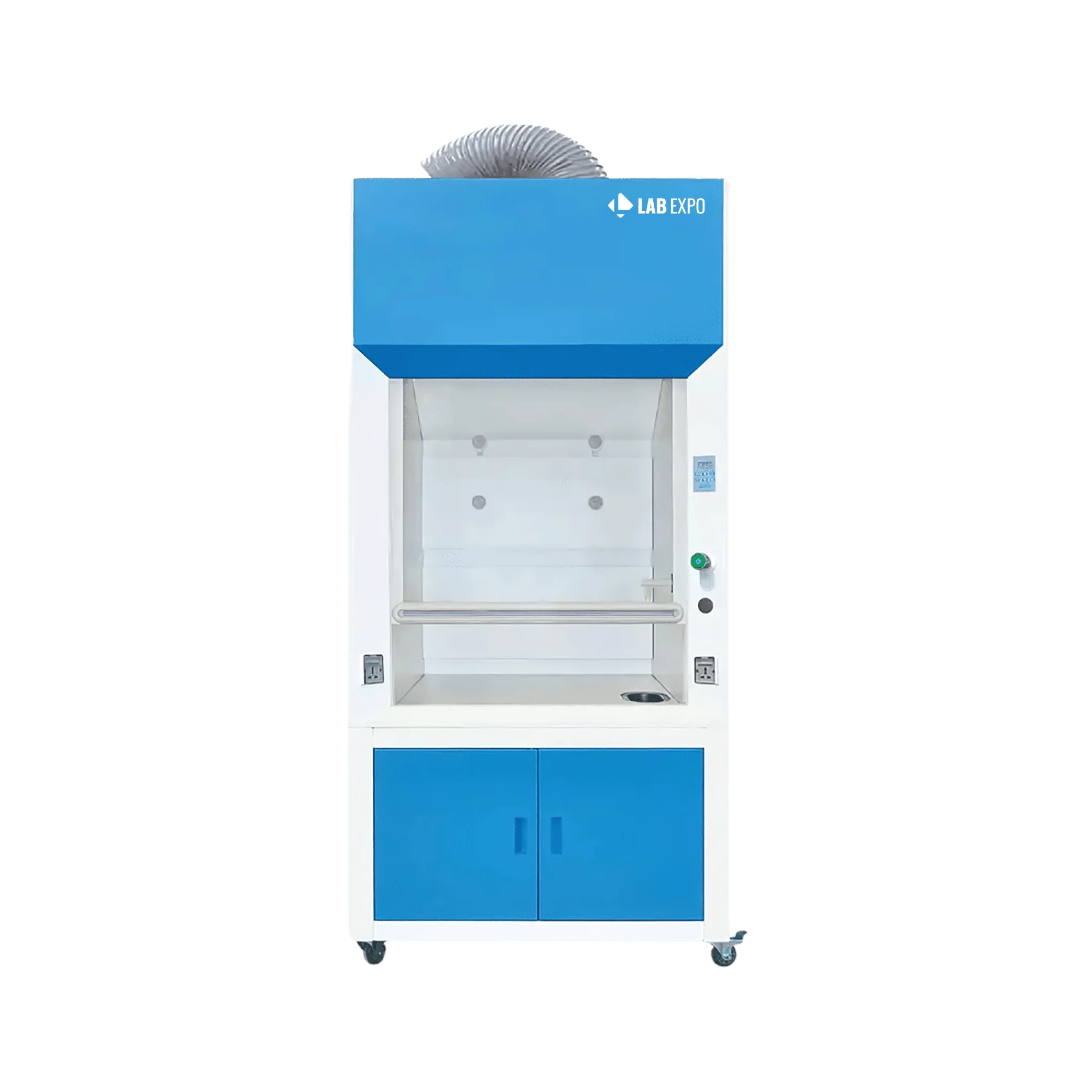

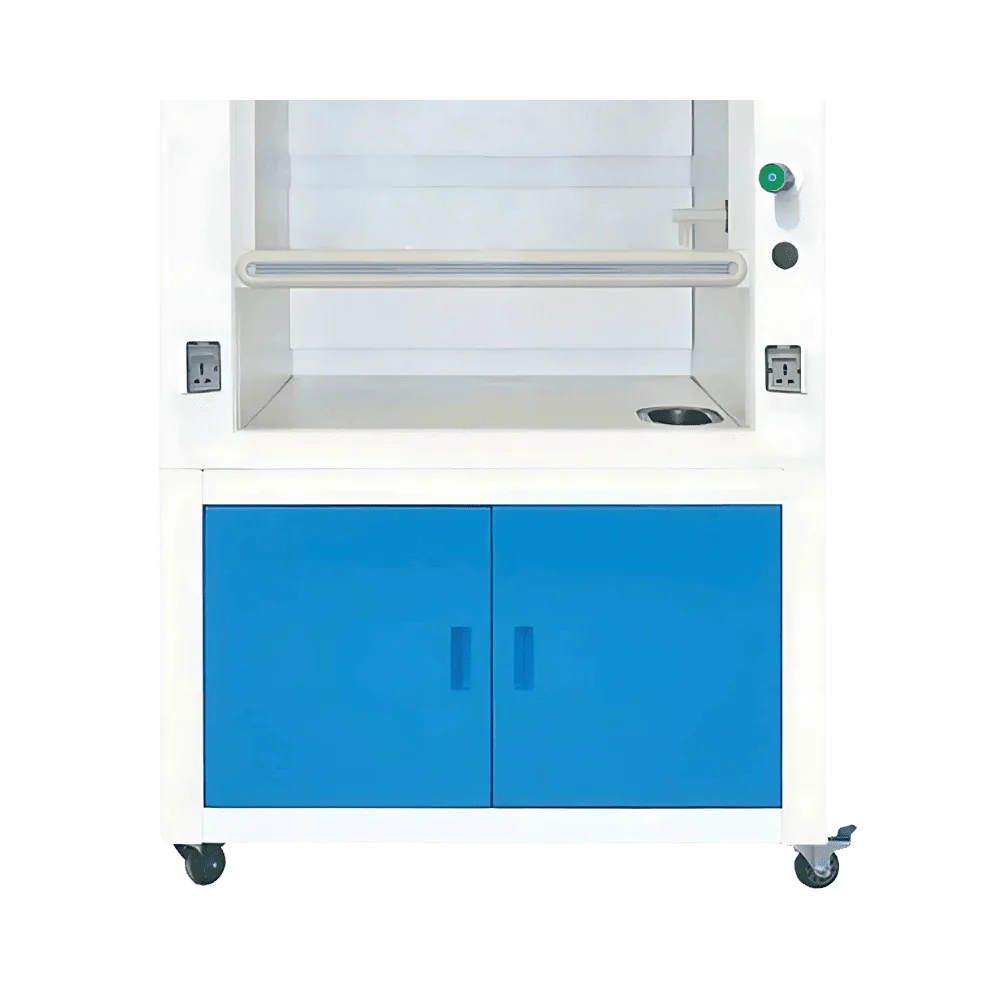

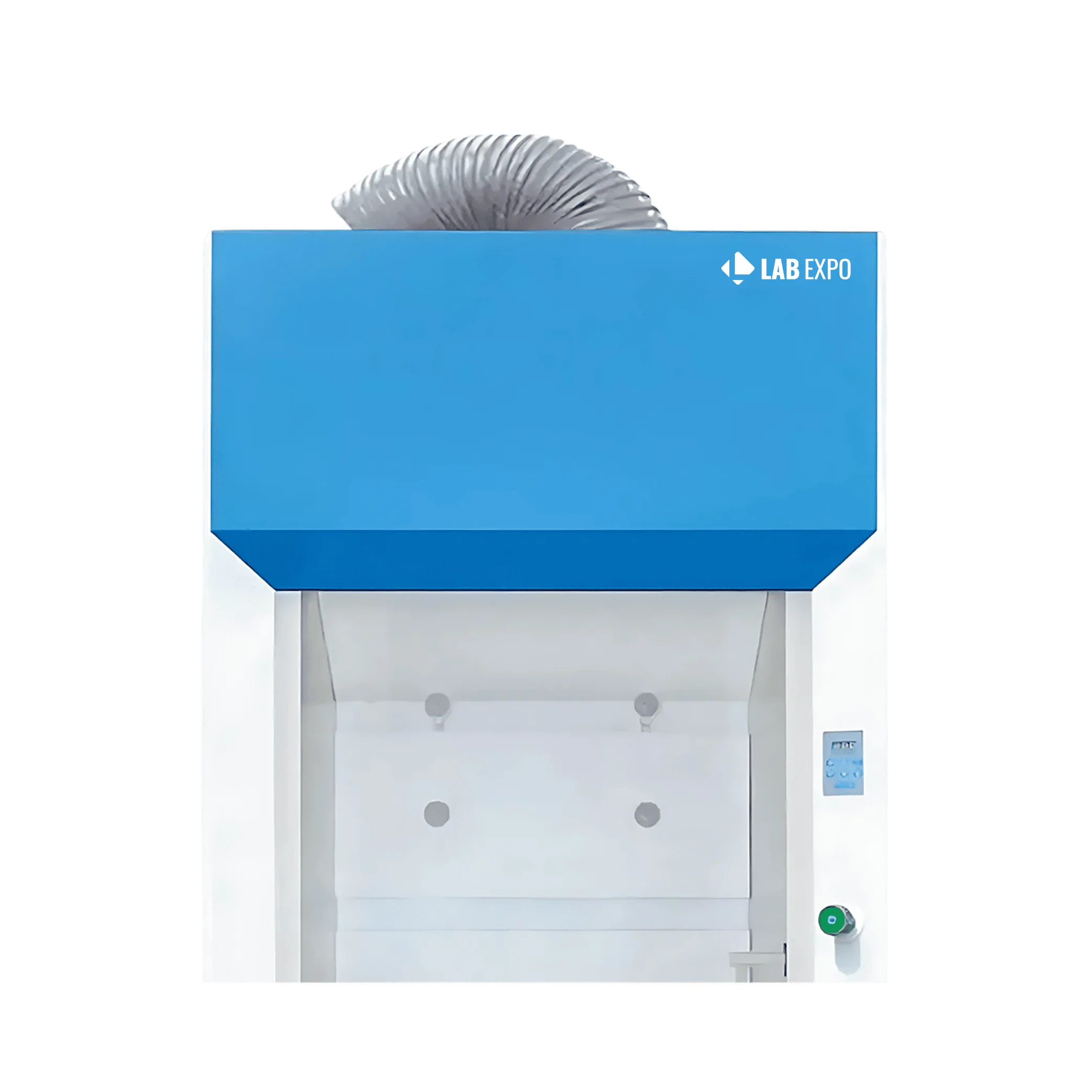

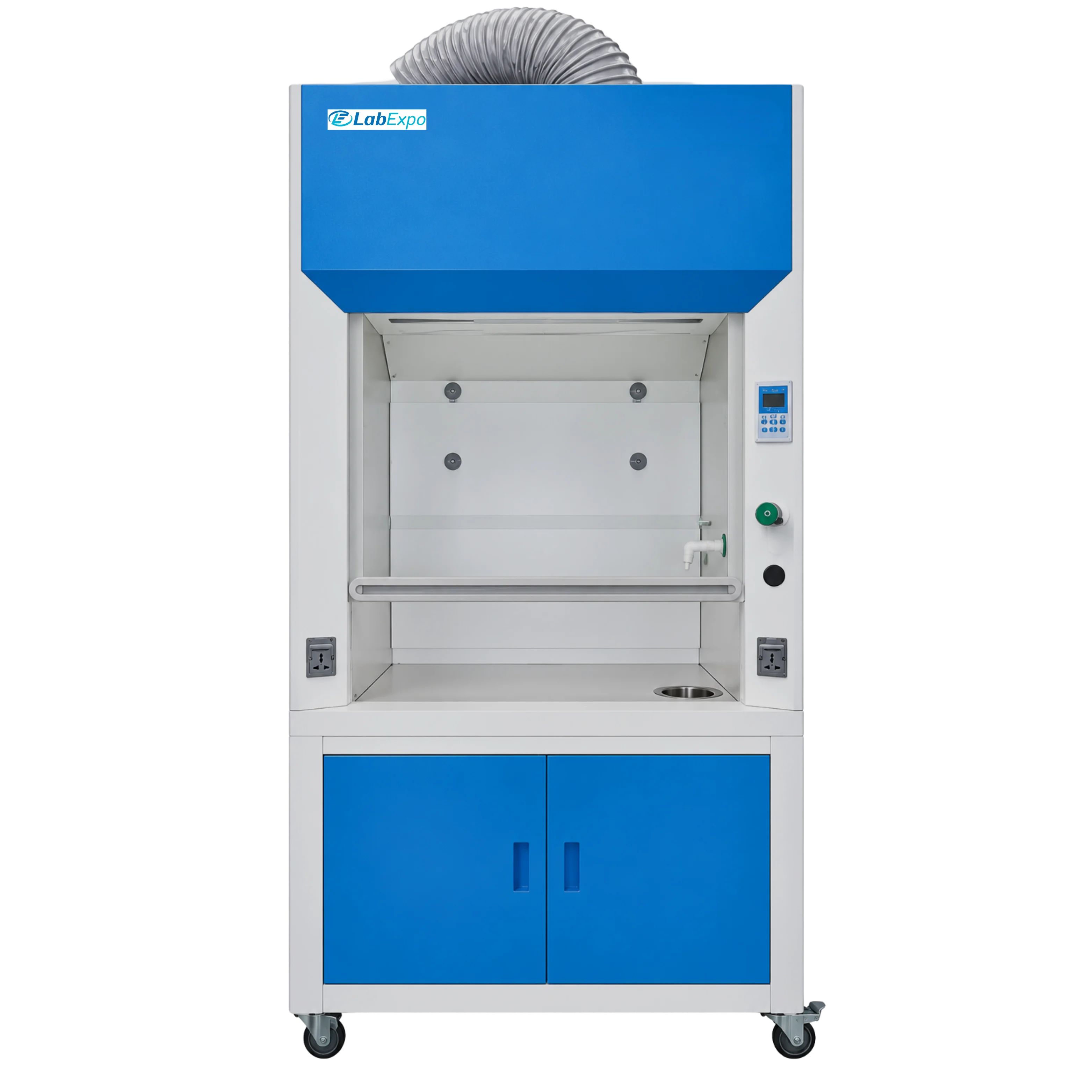

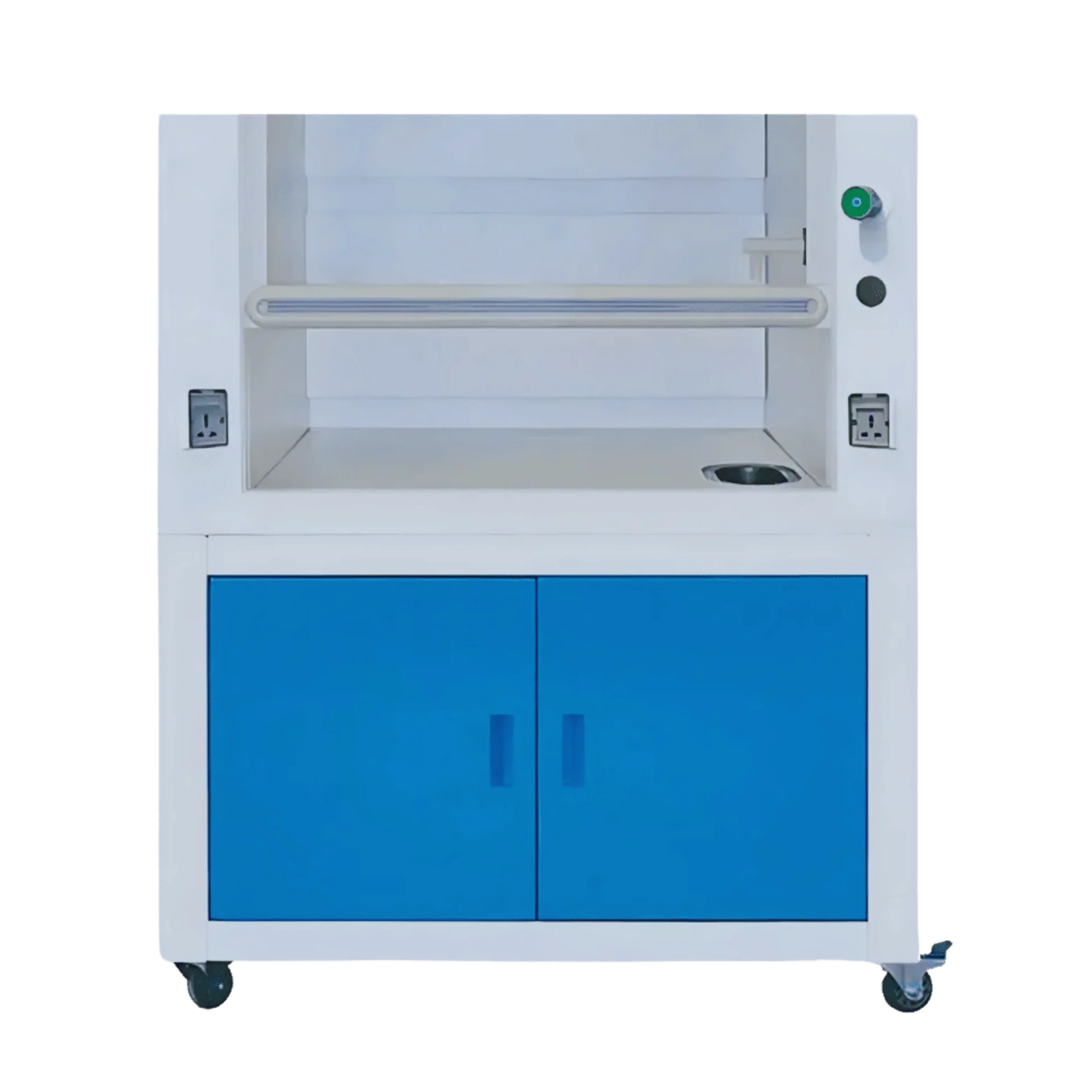

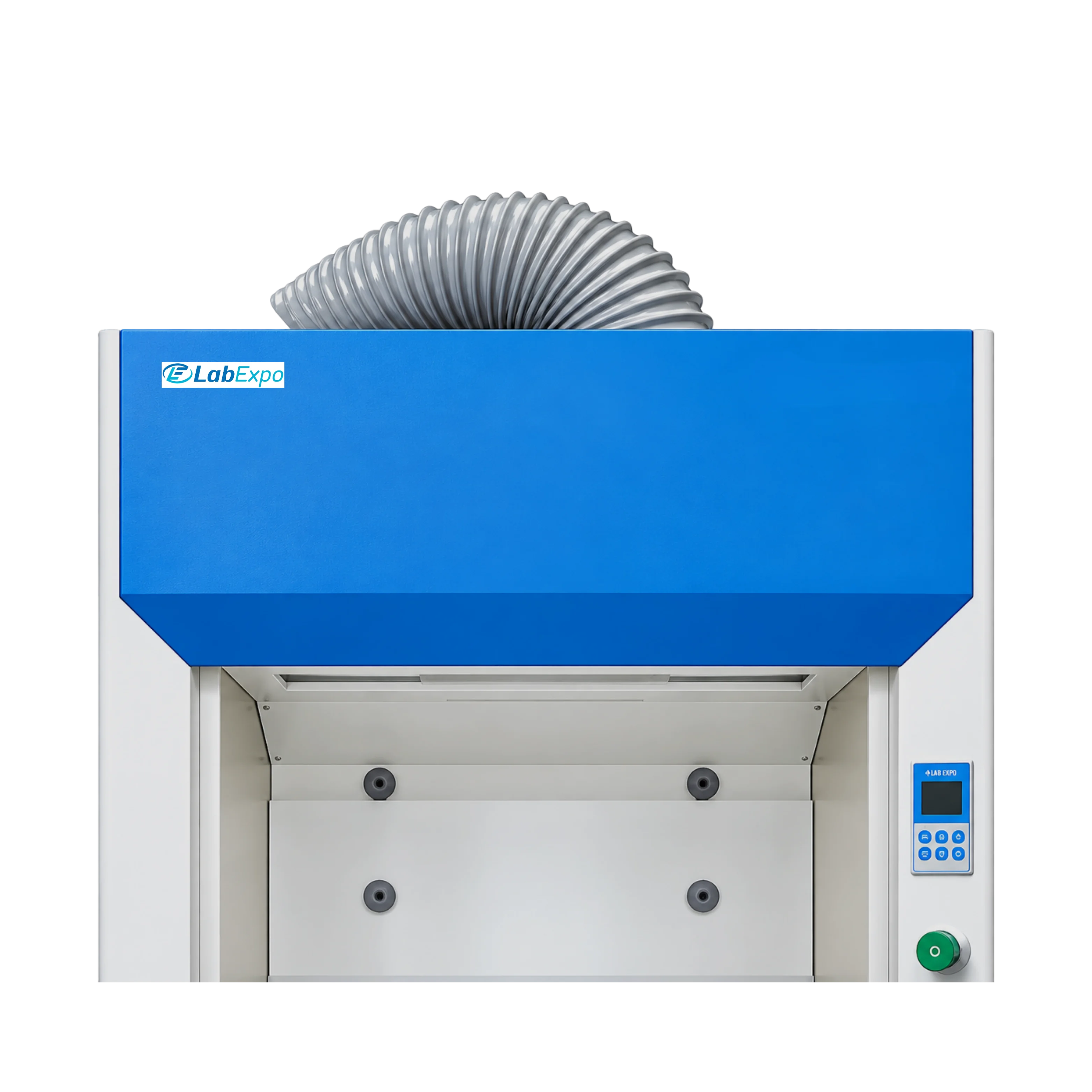

Ducted Fumehood 35-DTF201 manufactured by Lab Expo has a sash opening height of 750 mm and working height of 900 mm presenting safety and excellent performance features. It is the ducted type of fume hood that removes toxic gases from the outside of the working environment. The fumehood material is resistant to acid and the base has moderate strength. It provides the highest level of fume containment even at air velocity as low as 0.3 m / s.
$3,206.00 $ 2672
| Exterior Size(W × D × H) | 1200 × 800 × 2365 mm |
| Interior Size(W × D × H) | 990 × 635 × 820 mm |
| Maximum Opening | 900 mm |
| Fluorescent Lamp | 12 W x 1 |
| Work Surface Height | 750 mm |
| Exhaust Duct | PVC 4 meters, φ 300 mm |
| Noise | ≤ 60 dB |
| Pipe Strap | 2 pcs |
| Power Supply | 220 V / 50 Hz; 220 V / 60 Hz; 110 V / 60 Hz |
| Power Consumption | 400 W |
| Package Size(WxDxH) | 1340 × 940 × 1720 mm |
| Gross Weight | 317 kg |
Function Implementation High-risk labs 400 W power consumption enables safe fume removal Industrial settings 900 mm maximum opening facilitates easy equipment access Research facilities ≤ 60 dB noise level minimizes distractions Quality control labs 750 mm work surface height supports ergonomic working Clinical environments 220 V / 50 Hz power supply supports standard operating conditions
UV lamp × 2
Water tap × 1
Water sink × 1
Base cabinet × 1
2 Waterproof sockets: 500 W
4 meters PVC exhaust duct × 1
Built-in PP blower × 1, LED fluorescent lamp × 1
Pipe strap × 1
Carbon filter, Gas tap × 1
Lab Expo Ducted Fumehoods support hazardous chemical handling where full exhaust containment and controlled airflow are required to protect personnel and the laboratory environment. The system operates with ducted air extraction using built-in blowers and adjustable airflow control to remove fumes effectively. Chemically resistant phenolic work surfaces, durable interior panels, and steel build ensure long-term use, while microprocessor-based monitoring, alarms, and safety functions maintain controlled, continuous containment performance.
