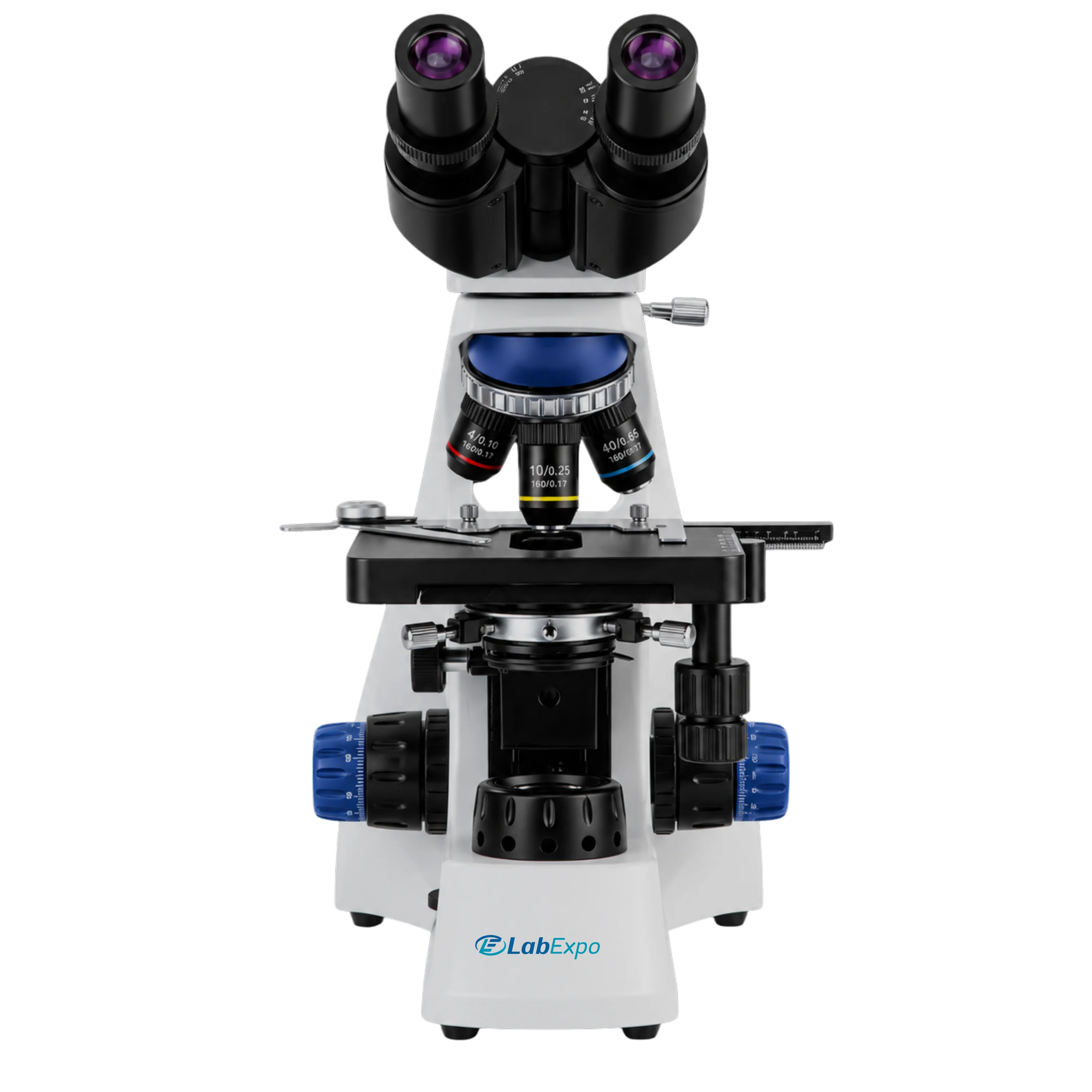

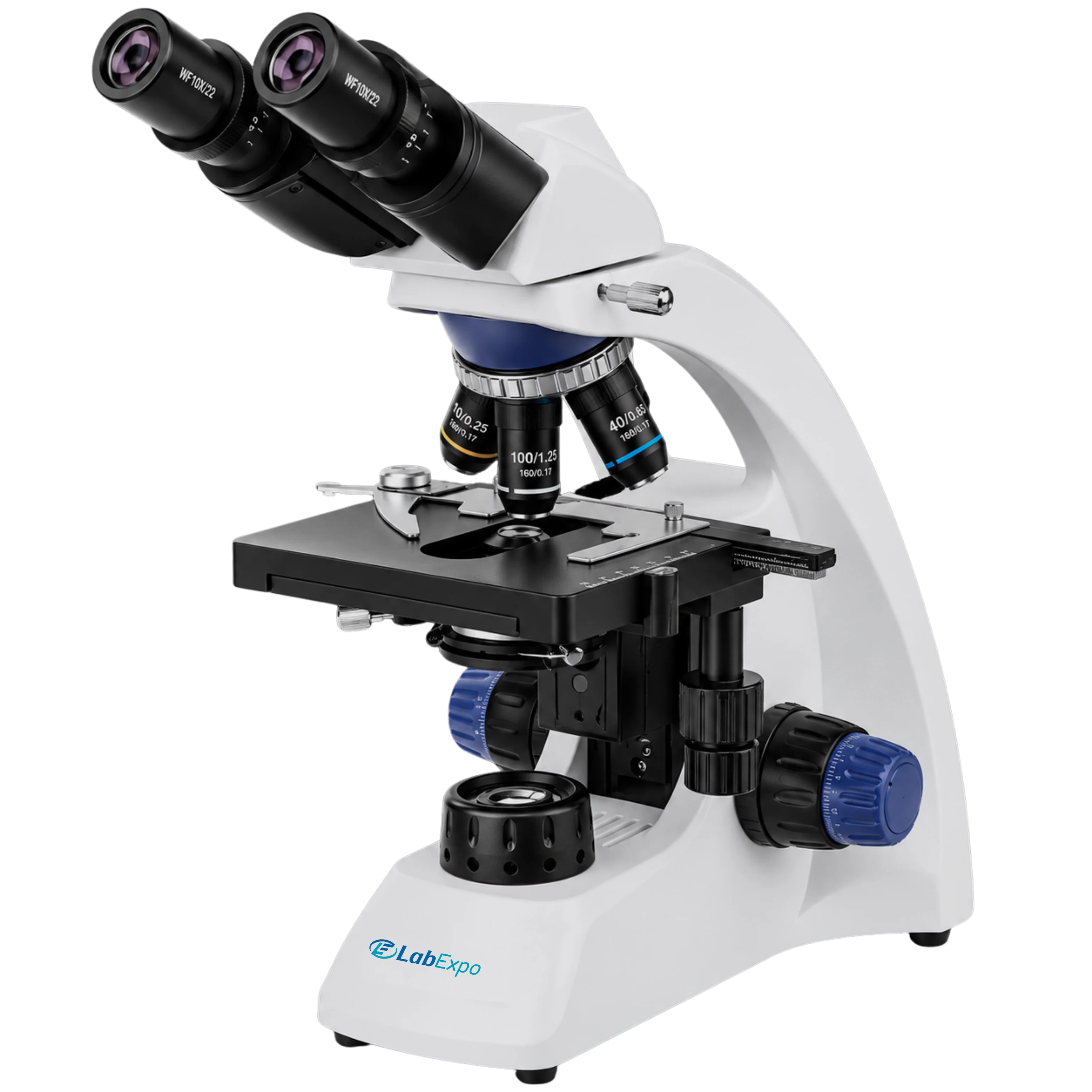

Lab Expo Educational Microscope 43-EMS100 comes with siedentopf type binocular viewing head. With the help of coarse and fine focusing adjustment, LED source of illumination, it is possible to obtain clear and sharp images of the specimen. It is specially designed for examination & demonstration purpose. It can be used for advanced applications in schools and colleges.
$2,004.00 $ 1670
| Optical System | Finite Optical System |
| Viewing head | Siedentopf binocular head, inclined at 30° eyepiece tube rotation 360° |
| Nosepiece | Quadruple nosepiece |
| Eyepiece | Wide field eyepiece WF 10X / 18 mm |
| Objective | Achromatic objective 4x, 10x, 40x(s), 100x(s,oil) |
| Stage | Double layer mechanical stage: 142 × 132 mm Moving range: 75 × 50 mm |
| Focusing | Coaxial coarse & fine adjustment, fine division 0.002 mm, coarse stroke 36 mm |
| Condenser | Abbe N.A. 1.2 condenser with iris diaphragm with filter |
| Illumination | 3 W / LED brightness adjustable |
| Dimension | 340 × 255 × 490 mm |
| Net weight | 5 kg |
| Gross weight | 6 kg |
Function Implementation Educational labs 0.002 mm fine division enables precise focusing adjustment Classroom demonstrations 3 W LED brightness adjustable supports specimen illumination College biology courses Siedentopf binocular head inclined at 30° allows comfortable viewing Quality control training Abbe N.A. 1.2 condenser with iris diaphragm enhances contrast resolution Research preparation labs Quadruple nosepiece facilitates rapid objective switching between 4x, 10x, 40x, and 100x lenses
Siedentopf trinocular head, inclined at 30º
eyepiece tube rotation 360º
Quadruple nosepiece
Wide field eyepiece WF16X/13 mm
Wide field eyepiece WF20X/11 mm
3W/LED adjustment, rechargeable battery
Plan achromatic objectives 4x, 10x, 40x(s), 100x(s,oil)
Lab Expo Educational Microscopes are structured around classroom-optimized optical pathways to support clear specimen observation during instruction. This educational microscope series features Siedentopf binocular viewing, wide-field eyepieces, and achromatic objectives for accurate image formation. Coarse and fine focus control, LED illumination, and a triple revolving nosepiece enable stable magnification changes, supporting practical science education and academic laboratory workflows.
