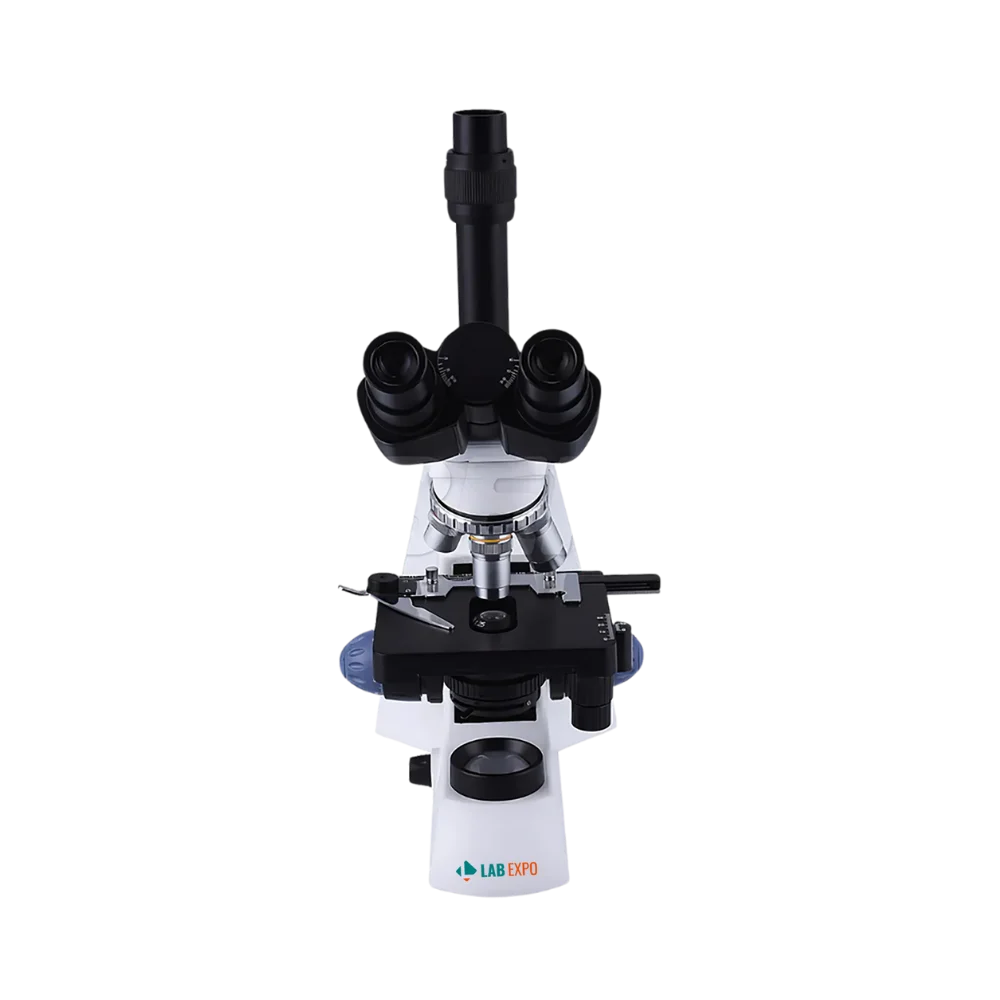

Lab Expo Educational microscope 43-EMS101 comes with siedentopf type binocular viewing head. With the help of coarse and fine focusing adjustment, LED source of illumination, it is possible to obtain clear and sharp images of the specimen. It is specially designed for examination & demonstration purpose. It can be used for advanced applications in schools and colleges.
$1,766.00 $ 1472
| Optical System | Finite Optical System |
| Viweing head | Siedentopf binocular head, inclined at 30° eyepiece tube rotation 360° |
| Nosepiece | Quadruple nosepiece |
| Eyepiece | Wide field eyepiece WF 10X / 18 mm |
| Objective | Achromatic objective 4x, 10x, 40x(s), 100x(s,oil) |
| Stage | Double layer mechanical stage: 110 × 125 mm |
| Focusing | Coaxial coarse & fine adjustment, fine division 0.002 mm, coarse stroke 36 mm |
| Condenser | Abbe N.A. 1.2 condenser with iris diaphragm with filter |
| Illumination | 3 W / LED brightness adjustable |
| Dimension | 330 × 260 × 410 mm |
| Net weight | 4.2 kg |
| Gross weight | 5.2 kg |
Function Implementation Educational laboratories 110 × 125 mm stage supports specimen positioning School science programs WF 10X / 18 mm eyepiece enables clear observation College biology labs Quadruple nosepiece allows rapid objective switching Demonstration classrooms Siedentopf binocular head inclined at 30° facilitates shared viewing Technical training facilities Fine focusing adjustment of 0.002 mm ensures precise focus control
Monocular head, inclined at 30º eyepiece tube rotation 360º
Wide field eyepiece WF 16X / 13 mm
Wide field eyepiece WF 20X / 11 mm
3W/LED adjustment, rechargeable battery
Semi-Plan achromatic objectives 4x, 10x, 40x(s), 100x(s,oil)
Lab Expo Educational Microscopes are structured around classroom-optimized optical pathways to support clear specimen observation during instruction. This educational microscope series features Siedentopf binocular viewing, wide-field eyepieces, and achromatic objectives for accurate image formation. Coarse and fine focus control, LED illumination, and a triple revolving nosepiece enable stable magnification changes, supporting practical science education and academic laboratory workflows.
