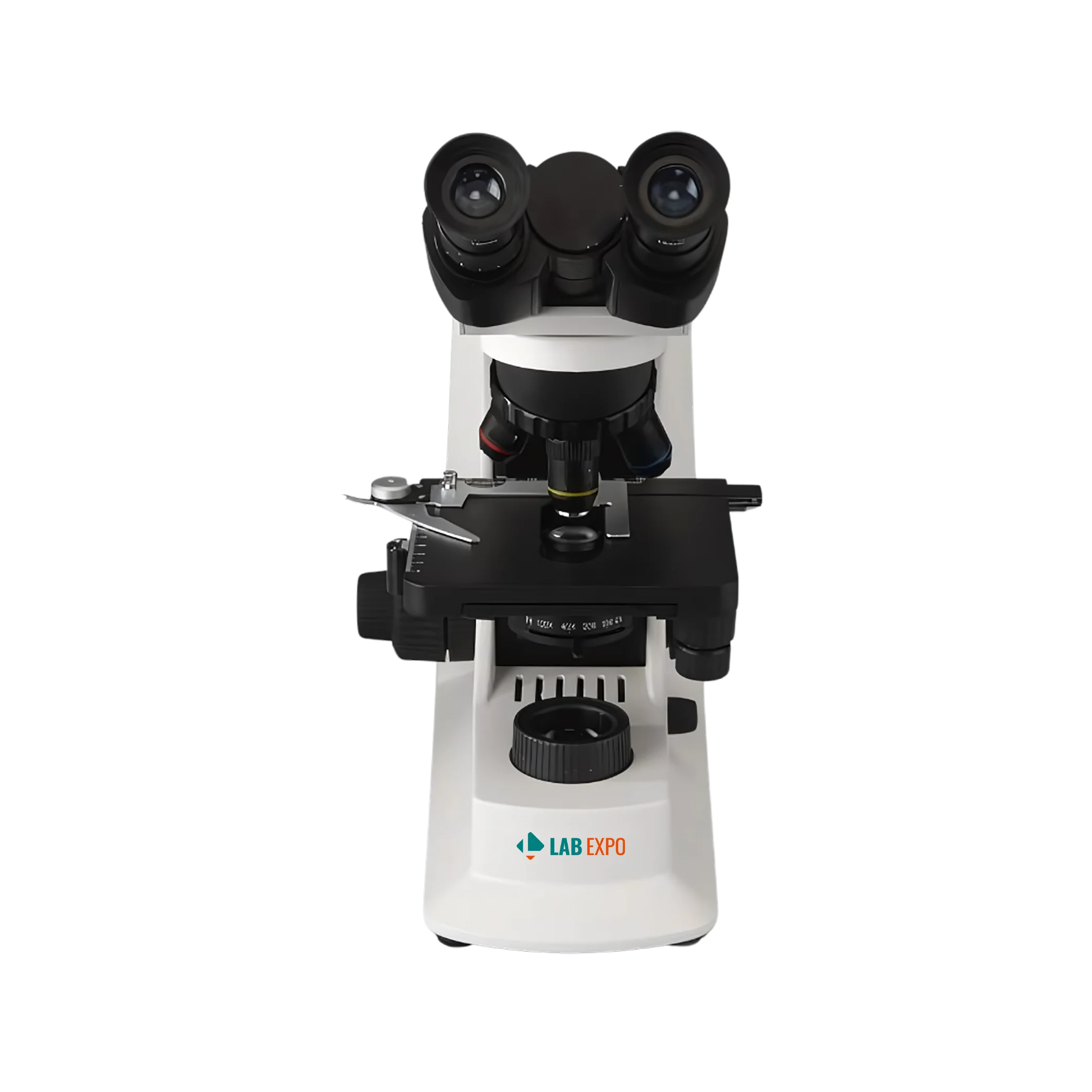

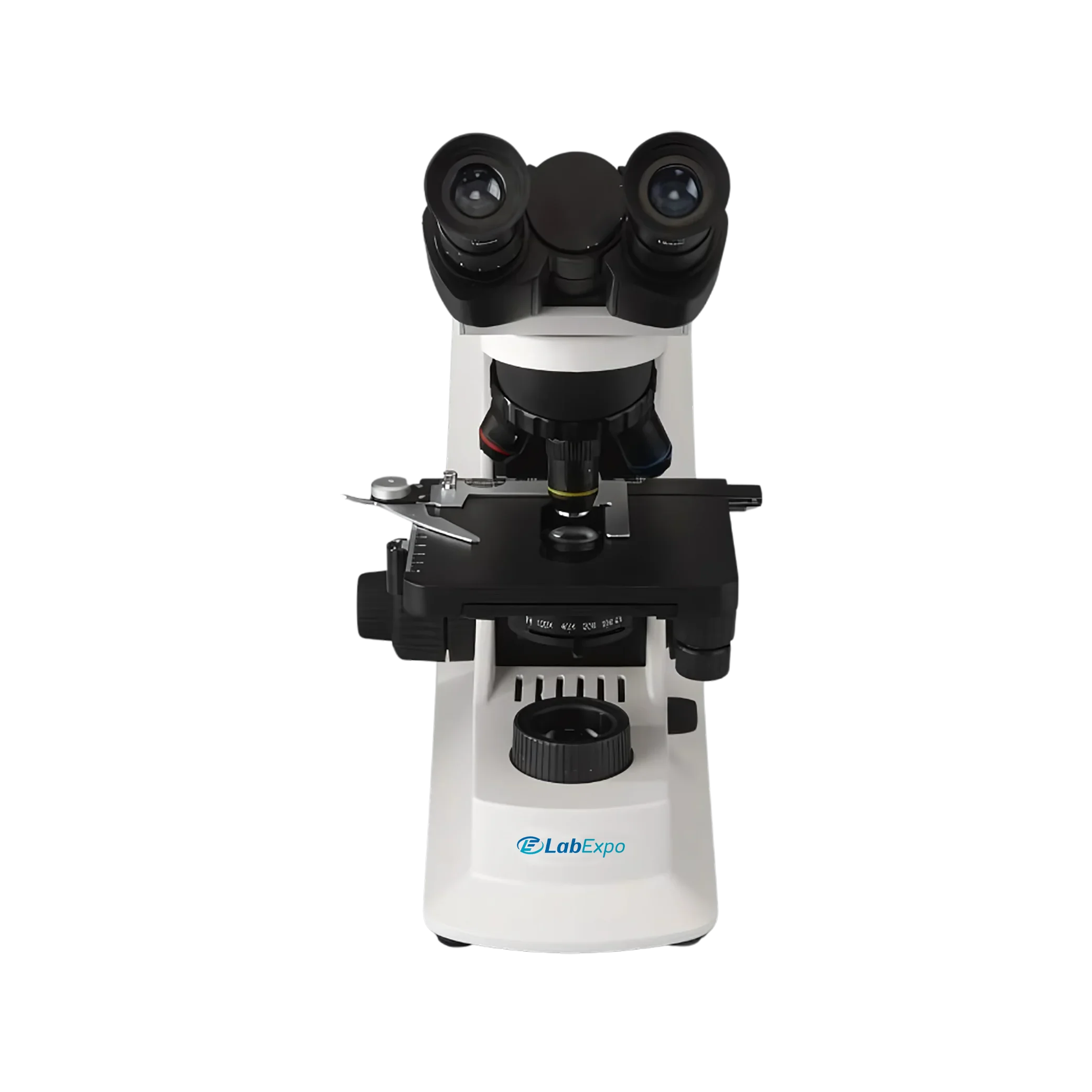

Lab Expo Educational Microscope 43-EMS201 comes with siedentopf type binocular viewing head. With the help of coarse and fine focusing adjustment, LED source of illumination, it is possible to obtain clear and sharp images of the specimen. It is specially designed for examination & demonstration purpose. It can be used for advanced applications in schools and colleges.
$2,040.00 $ 1700
| Optical System | Finite Optical System |
| Viweing head | Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360º |
| Nosepiece | Inward quadruple click-stop, revolving mechanism with multiple ball bearing |
| Eyepiece | WF 10X / 20 mm |
| Objective | Finite plan objective 4x, 10x, 40x(s), 100x(s,oil) |
| Stage | Double layer mechanical stage: 140 × 132 mmTravel area: 76 × 50 mm with a right hand stage handle, 0.1 mm provision; double slide holder |
| Focusing | Coaxial coarse & fine adjustment knobs |
| Condenser | Abbe N.A. 1.25 condenser with Iris diaphragm |
| Illumination | Built-in kohler illumination system 3W LED or Halogen 6 V / 20 W, adjust brightness, field diaphragm |
| Power supply | 85 V to 265 V universal power supply |
| Dimension | 390 × 280 × 450 mm |
| Net weight | 6 kg |
| Gross weight | 8 kg |
Function Implementation Educational laboratories 6 kg net weight supports stable bench placement School demonstration labs 3W LED illumination enables adjustable specimen viewing College biology classrooms Siedentopf binocular head allows 48-75 mm interpupillary adjustment Quality control training Double layer mechanical stage provides 76 × 50 mm travel area Technical skill development Finite plan objectives deliver 4x, 10x, 40x(s), and 100x(s,oil) magnification
Digital camera and software
Trinocular head
Phase contrast kit
Dark field
Lab Expo Educational Microscopes are structured around classroom-optimized optical pathways to support clear specimen observation during instruction. This educational microscope series features Siedentopf binocular viewing, wide-field eyepieces, and achromatic objectives for accurate image formation. Coarse and fine focus control, LED illumination, and a triple revolving nosepiece enable stable magnification changes, supporting practical science education and academic laboratory workflows.
