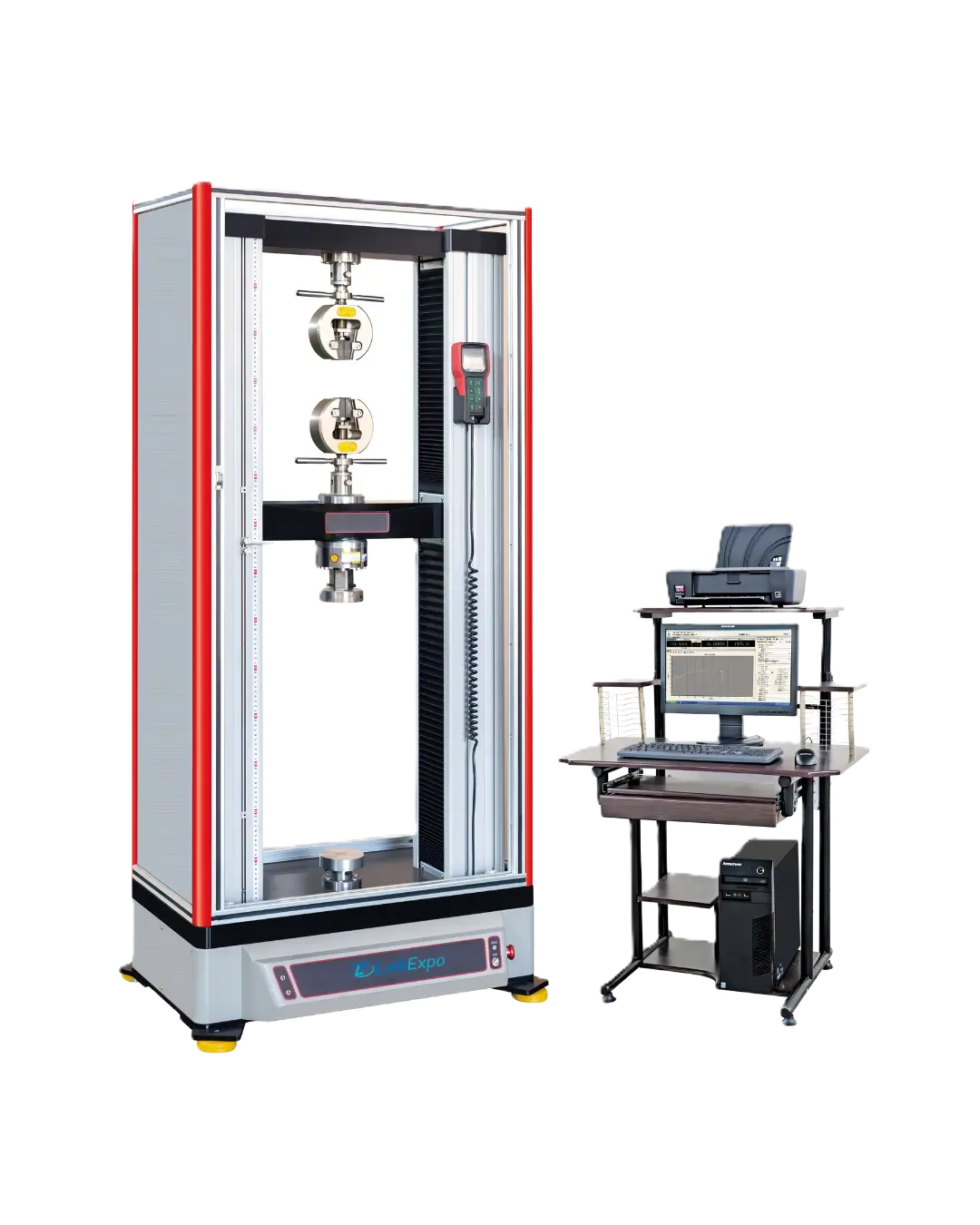

Lab Expo Electrochemical Testing Machine LE-ETM101 offers a 5 kN load capacity, upholding uniform performance and dependable testing results. It features testing load accuracy ±0.5%, delivering superior precision for high-standard electrochemical measurements. Built-in with deformation resolution to ensure smooth and stable operation. Our Electrochemical Testing Machine is suitable for strength, durability, and performance assessment of plastics and composites.
$8,088.00 $ 6740
| Load Capacity | 5 kN |
| Calibration Standard | Class0.5 |
| Testing Load Accuracy | ±0.5% |
| Testing Load Range | 0.4 % to 100% FS |
| Load Resolution | 1/500,000FS |
| Deformation Measuring Range | 0.2 % to 100 % FS |
| Deformation Accuracy | ≤±0.5% |
| Deformation Resolution | 1/±500000FS of max deformation |
| Test Control Mode | Three closed loop control, stress, strain and displacement |
| Position Accuracy | Within ±0.5 %of the value |
| Displacement Resolution | 0.01 mm |
| Crosshead Speed Range | 0.001-500 mm/min |
| Crosshead Speed Accuracy | ≤±0.2％ |
| Constant Force Control Range | 0.001％ to 5％FS/s |
| Constant Force Control Accuracy | ±2% at rate |
| Constant Deformation Control Range | 0.005 to 5%FS/s |
| Constant Deformation Control Accuracy | ±2% at rate |
| Crosshead Travel | 800 mm |
| Max. Tensile Testing Space | 600 mm |
| Max. Compression Testing Space | 600 mm |
| Compression Platen | Ф100 mm |
| Power supply | AC220V±10%,50 Hz/60 Hz |
| Dimensions | 520 × 400 × 1340 mm |
| Weight | 110 kg |
Function Implementation Electrochemical testing labs 5 kN load capacity supports precise force measurement Material strength analysis ±0.5% testing load accuracy ensures reliable results Plastics and composites evaluation 800 mm crosshead travel enables full specimen assessment Quality control environments ≤±0.2% crosshead speed accuracy maintains test consistency Industrial R&D facilities 0.001-500 mm/min crosshead speed range accommodates varied test rates
Electronic universal testing machine host
Stepper motor system
Rubber shock-absorbing Pad
Handheld Unit controller
Positioning Ruler
S type load cell
Corrugated Tensile grip
Compression test grip
Control system
Test Software
Computer and printer
Bottom cabinet
Long travel extensometer

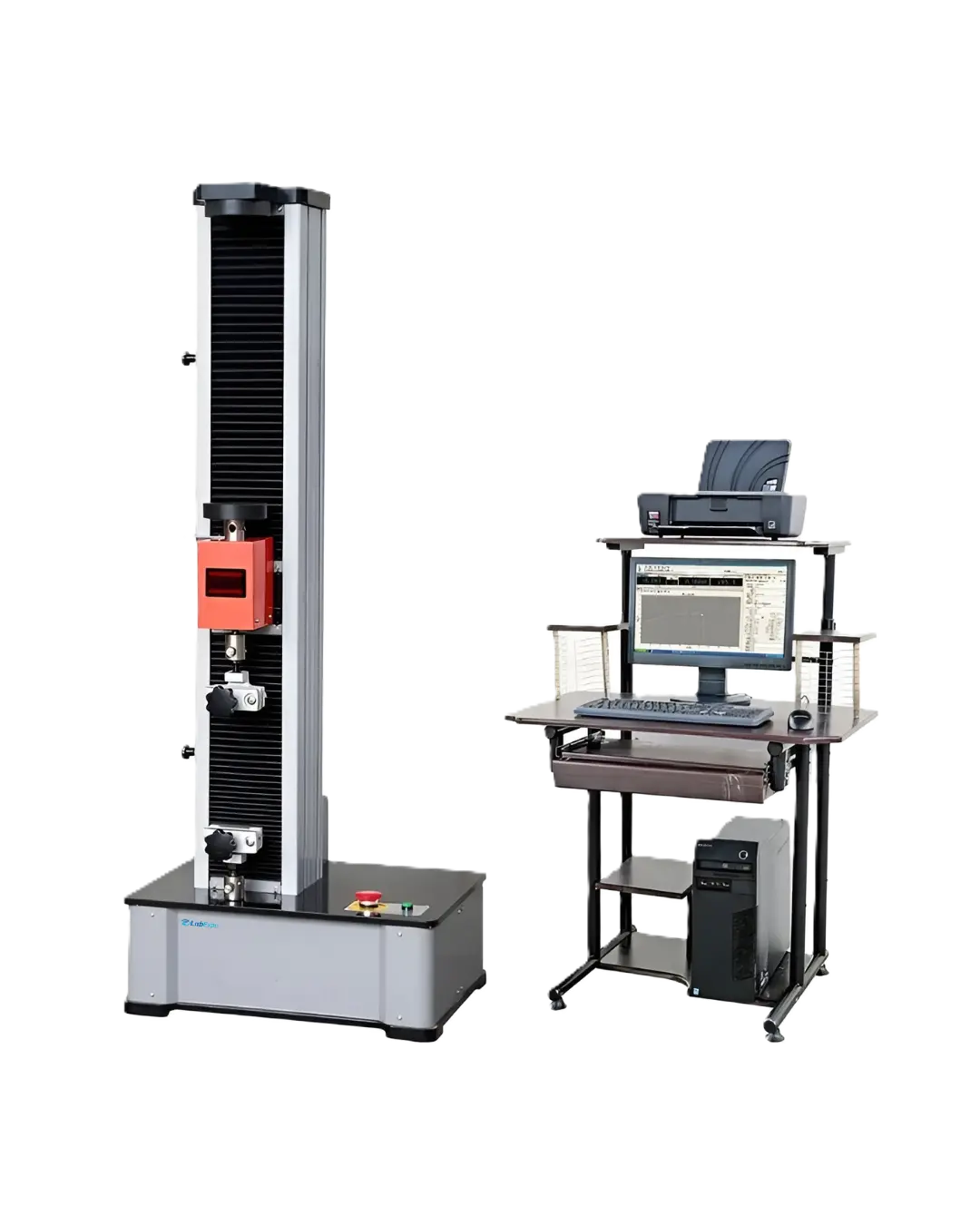

Lab Expo Electromechanical Universal Testing Machine units are used for tensile, compression, and material strength analysis in industrial and research applications. Models support load capacities from 5 kN to 600 kN with Class 0.5 testing accuracy, multi-column hydraulic configurations, and ISO7500 calibration standards for precision universal testing applications.
